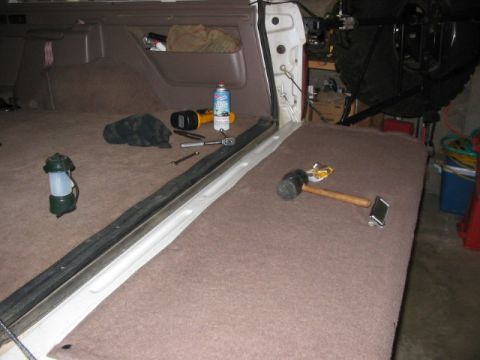

With a softtop, it was time to look at lightening the tailgate load of uneeded items...glass rear wi...

1697 hits | 33.72 KB | Posted: 4/10/04

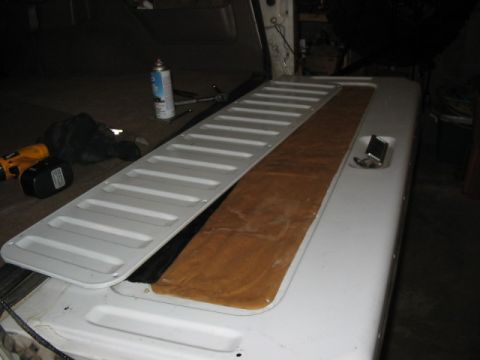

Access cover removed, paper backing showing.

2517 hits | 41.97 KB | Posted: 4/10/04

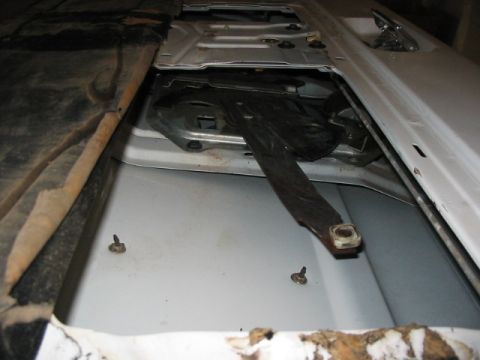

paper backing peeled back to reveal motor arm. At this point I have already removed the glass.

1624 hits | 45.86 KB | Posted: 4/10/04

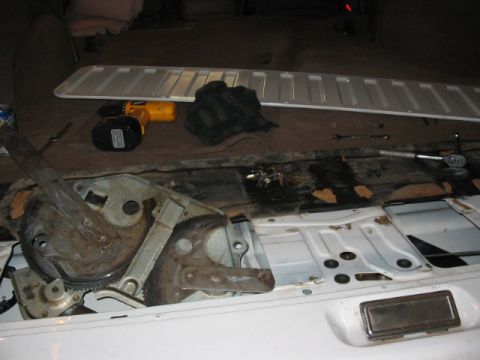

4 bolts and the motor/mechanism is ready for removal as shown.

1731 hits | 35.36 KB | Posted: 4/10/04

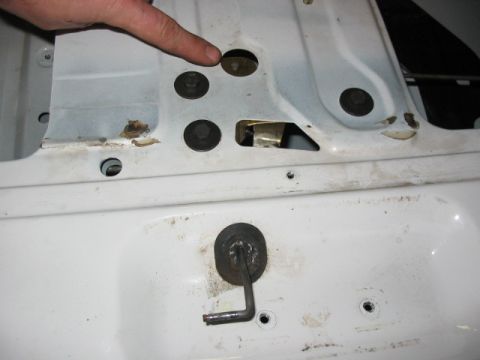

ran into a problem after closing the tailgate...it would not release and open again.

1854 hits | 37.86 KB | Posted: 4/10/04

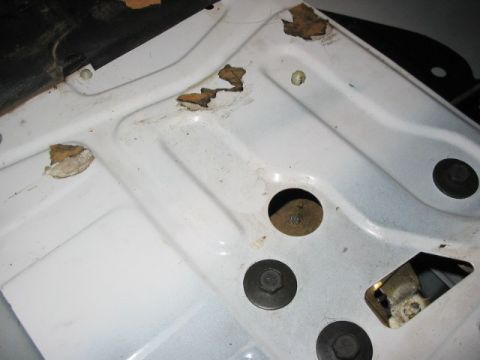

underneath this rivet was an arm that went to the bottom of the tailgate, that the glass would rest ...

1730 hits | 43.62 KB | Posted: 4/10/04

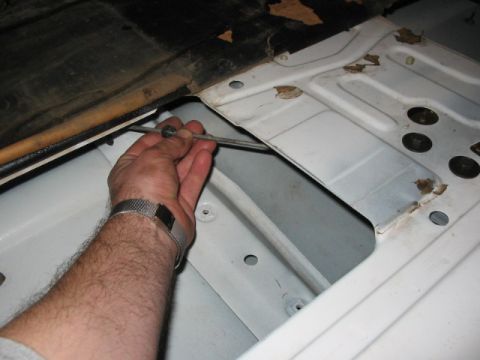

And here is the arm. Once I took a grinder to the rivet and punched it out, the arm fell loose, and...

1629 hits | 62.3 KB | Posted: 4/10/04

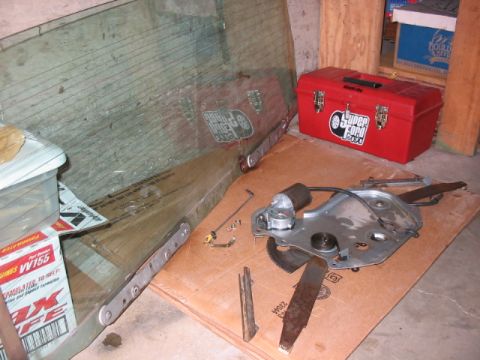

motor, mechanism, glass, and misc. parts. 25 lbs. worth.

1655 hits | 57.37 KB | Posted: 4/10/04

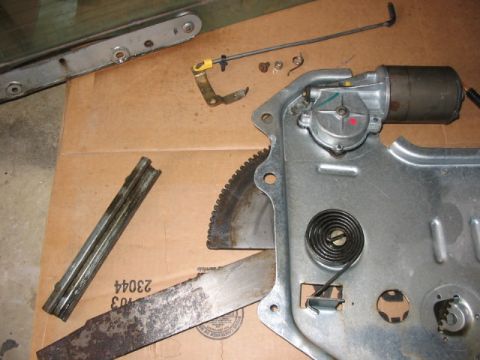

the armature is springloaded, so caution is needed when messing with it.
