1186 hits | 46.14 KB | Posted: 11/4/04

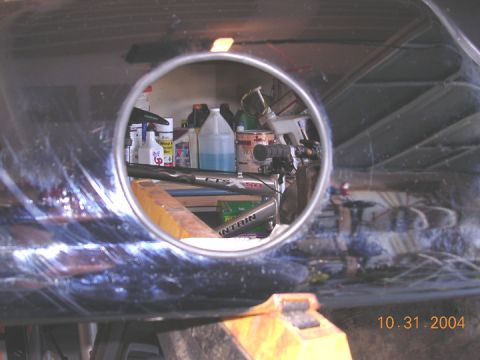

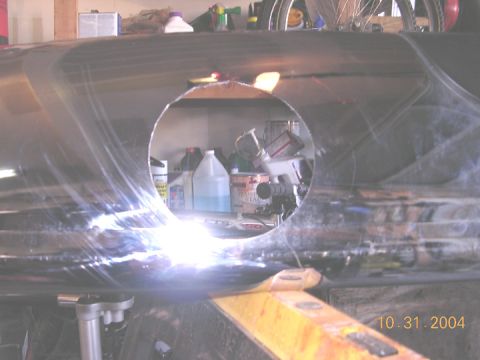

I strted by removing the bumper, and decideing where i wanted to mount the light. Once the pattern ...

941 hits | 47.44 KB | Posted: 11/4/04

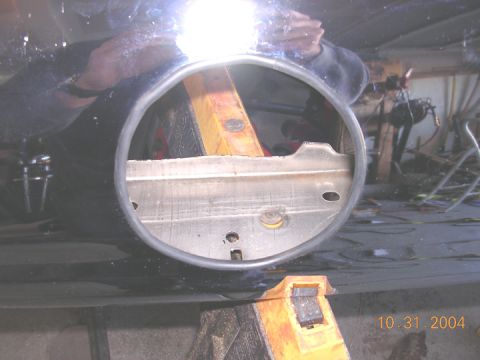

once the holes were cut, I used some washer fluid line slit down the center as a trim piece

878 hits | 51.35 KB | Posted: 11/4/04

1270 hits | 69.94 KB | Posted: 11/4/04

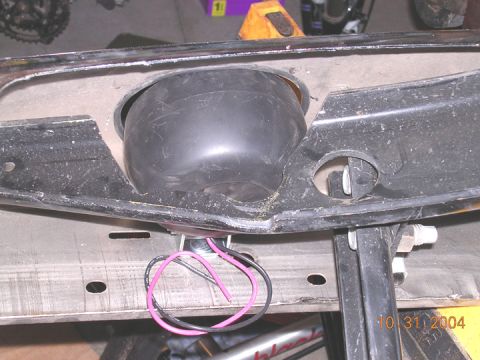

using the existing holes in the bumper support, i trimmed out the brackets with a sawzall for the li...

804 hits | 65.75 KB | Posted: 11/4/04

954 hits | 54.03 KB | Posted: 11/4/04

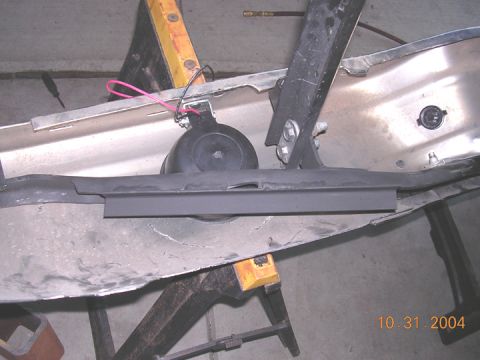

I doubt it needed it, but just to be safe, i welded some angle iron to the bumper reinforcement brac...

798 hits | 45.19 KB | Posted: 11/4/04

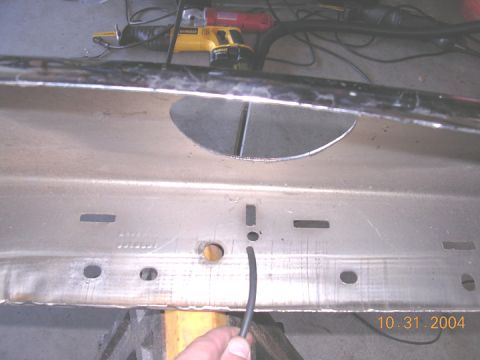

the black line is showing where on the bumper i drilled the mounting hole for the lihts. i then dri...

914 hits | 29.28 KB | Posted: 11/4/04

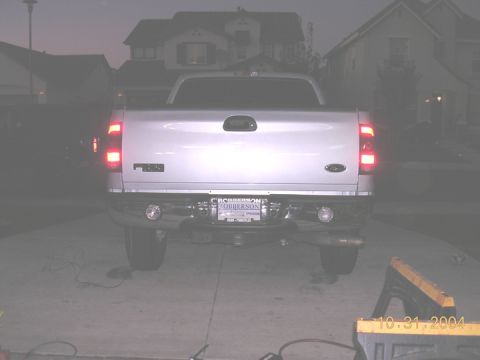

reinstalled the bumper

2162 hits | 45.77 KB | Posted: 11/4/04

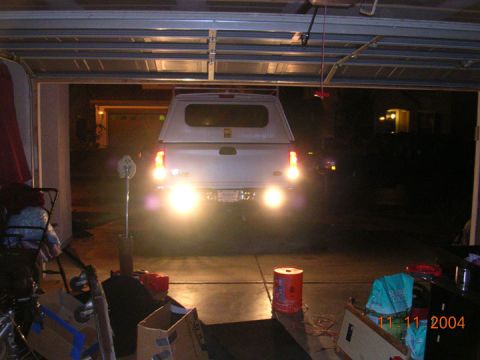

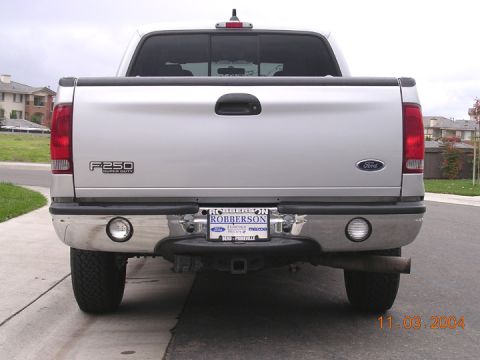

just wainting for the camper top to wire it all up, will post more pics when its completed.

1317 hits | 50.22 KB | Posted: 11/15/04

764 hits | 22.88 KB | Posted: 11/15/04

674 hits | 17.78 KB | Posted: 11/15/04

686 hits | 30.58 KB | Posted: 1/23/05

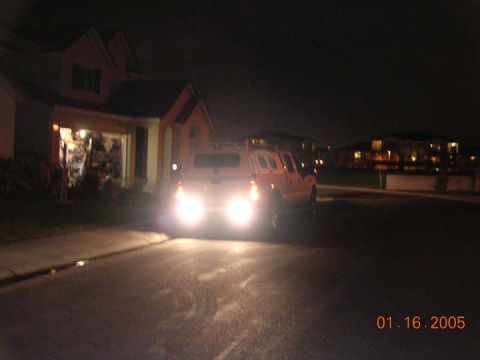

discovered the first lights I put in were only 35 watts, so I replaced them with 100 watt ones.

868 hits | 48.7 KB | Posted: 1/23/05

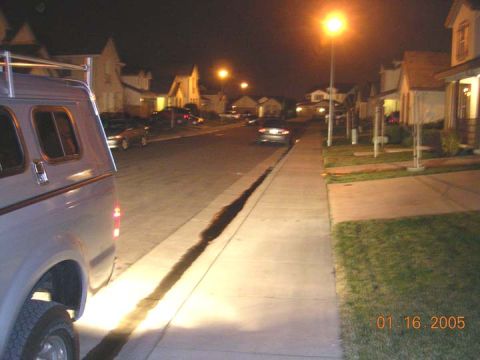

MUCH brighter. i also re-aimed them some

1420 hits | 51.28 KB | Posted: 1/23/05
technically, she wired them for me.

936 hits | 41.27 KB | Posted: 1/23/05
