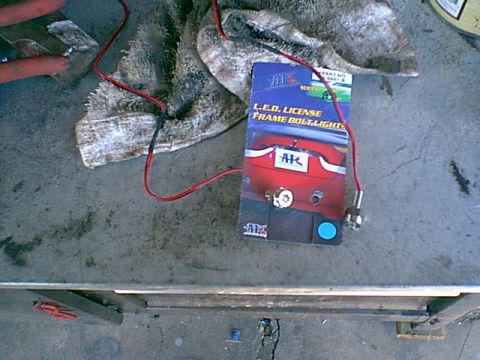

well the law said i needed license plate lights so i went and got these LED units. (they are blue)

533 hits | 87.72 KB | Posted: 11/3/06

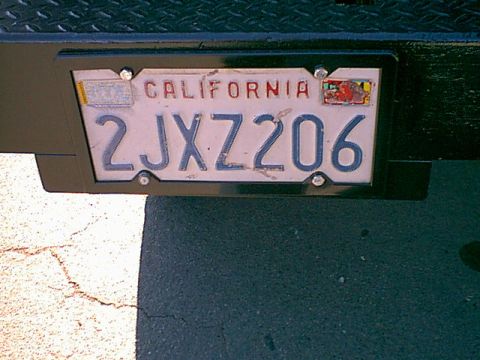

This was going to be a simple install. here is the plate mount

516 hits | 87.37 KB | Posted: 11/3/06

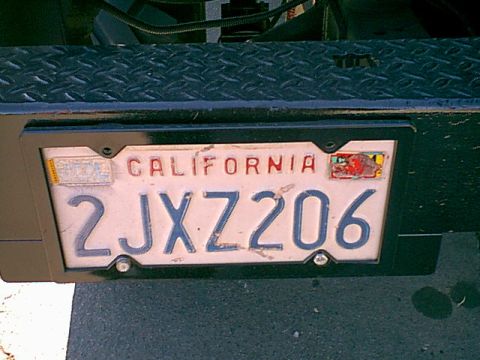

Now the top bolts are out.

488 hits | 89.85 KB | Posted: 11/3/06

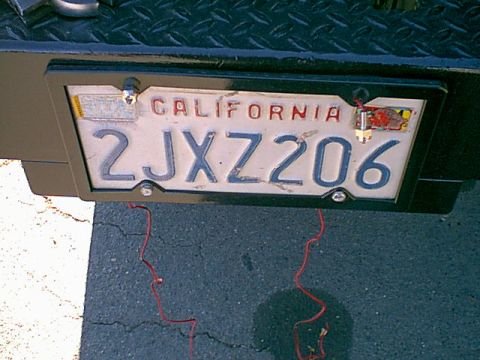

I then put the LED bolts in the holes wires first.

487 hits | 80.92 KB | Posted: 11/3/06

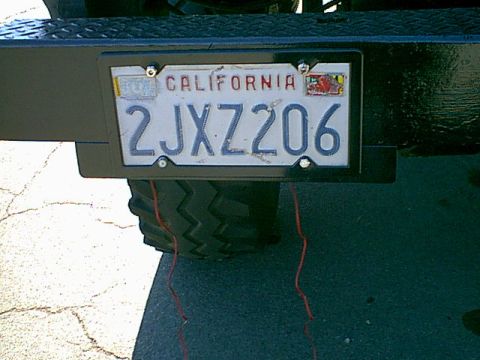

I then put the nuts and washers on the LED. you can see the LED wires hanging in the back of the bum...

506 hits | 69.73 KB | Posted: 11/3/06

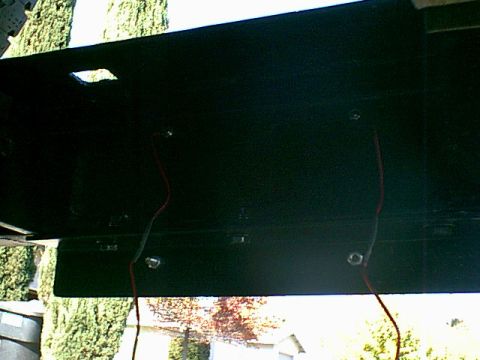

It is hard to see but i soldered and heat shrinked all the wire connections.

541 hits | 79.4 KB | Posted: 11/3/06

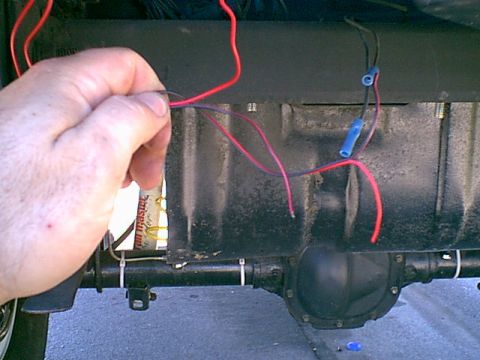

I wired the POS and neg on the LEDs together.

479 hits | 79.9 KB | Posted: 11/3/06

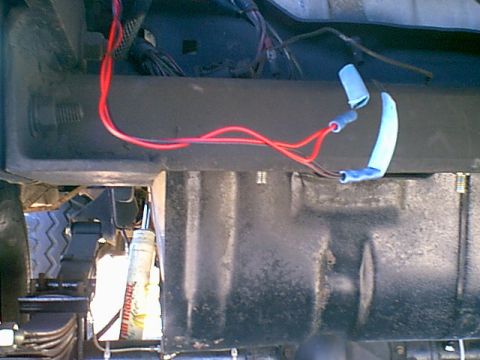

I just tied them into the back ground and running light hot. I then heat shrinked the connection to ...

503 hits | 81.07 KB | Posted: 11/3/06

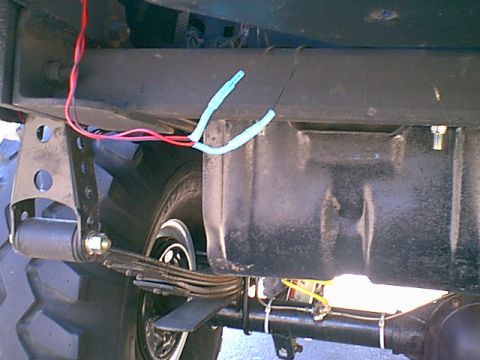

Here was the final connection all weather protected.

486 hits | 76.77 KB | Posted: 11/3/06

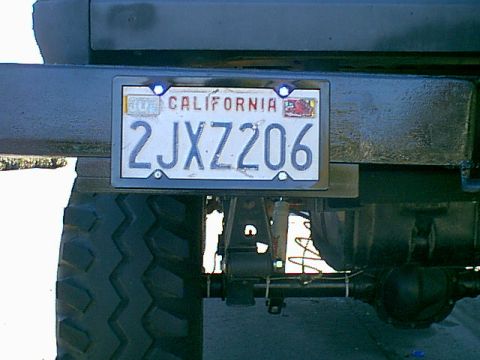

Here is the final install. these are bright and use little power. i think they will work great.

495 hits | 79.23 KB | Posted: 11/3/06

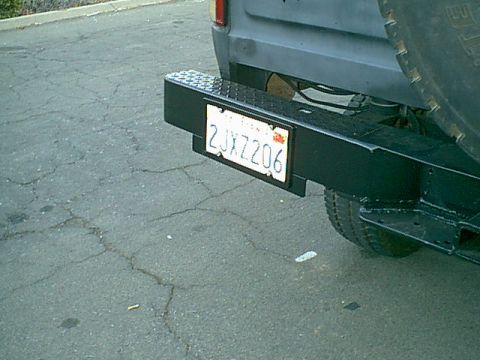

Another view of the LEDs installed

488 hits | 77.55 KB | Posted: 11/3/06

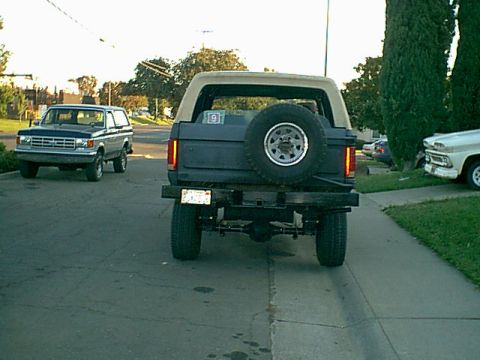

here it the plate alittle bit down the street. (Matts stock bronco to the left of mine).

488 hits | 52.95 KB | Posted: 10/31/06

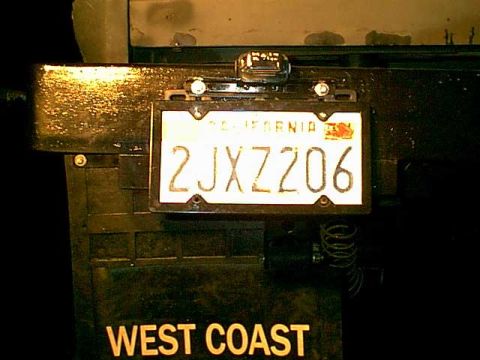

Here is the final assembly. The CHP signed off on the fix it ticket.

449 hits | 68.96 KB | Posted: 10/31/06

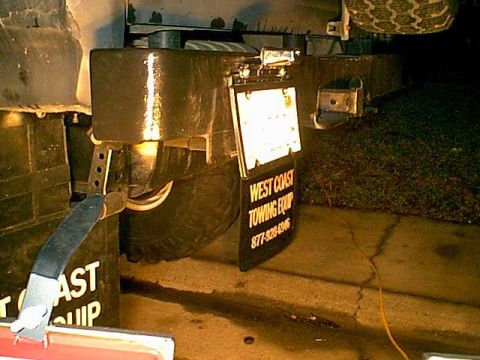

Here is a side view of the new mount and light.

rear view.jpg
482 hits | 58.59 KB | Posted: 11/3/06

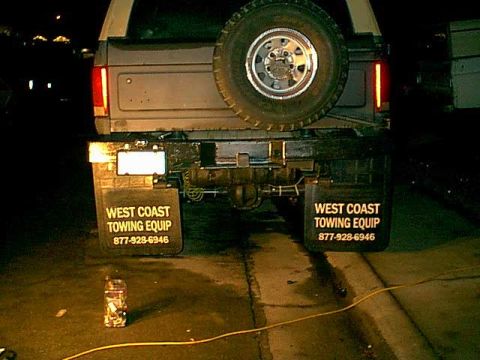

Here is the new light setup as i finnished it.

456 hits | 13.21 KB | Posted: 10/31/06
Here it is lit up at night. this project is now completed.
