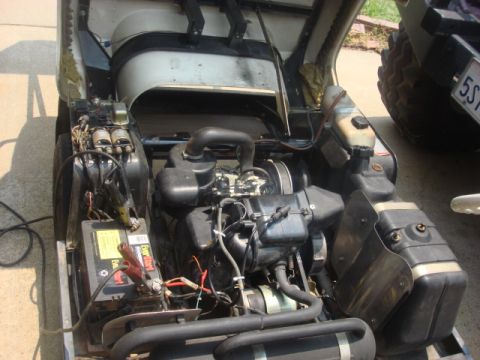

cart as we started the wire cleanup.JPG 459 hits | 65.71 KB | Posted: 7/10/08 I poped the cover and saw a wiring mess. i needed to charge the battery and add a new protected ligh...

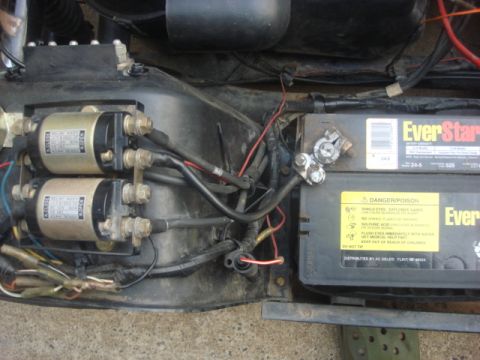

negitive wire as i started.JPG 438 hits | 61.5 KB | Posted: 7/10/08 i start with the negitive side first. the battery connector was corroded and the wire in poor condit...

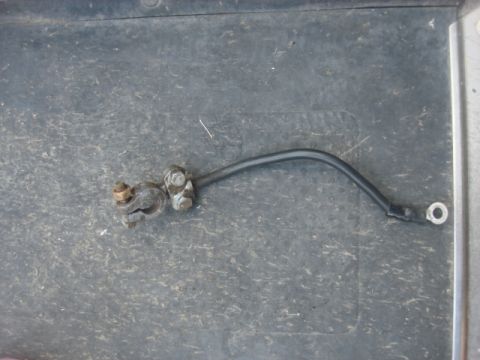

old negitive wire.JPG 455 hits | 53.25 KB | Posted: 7/10/08 I removed the negitive wire from the battery and the solinoid pack. I was surprised there was nothin...

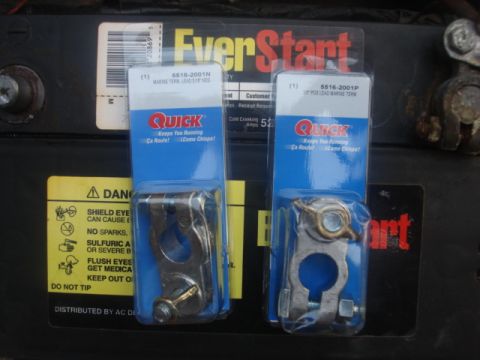

new battery connector.JPG 489 hits | 50.93 KB | Posted: 7/10/08 I got new marine battery connectors. these were not to bad price and allowed a fast connection.

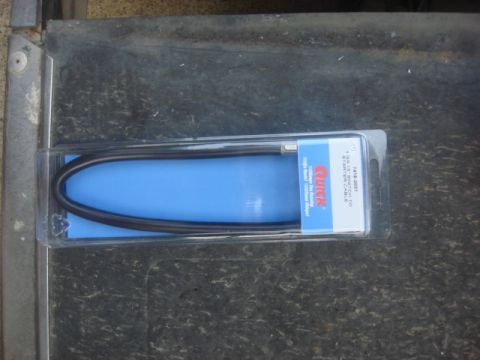

negitive wire 3.JPG 461 hits | 49.28 KB | Posted: 7/10/08 this was an off the shelf negitive cable. it was 15" it has loops on both ends.

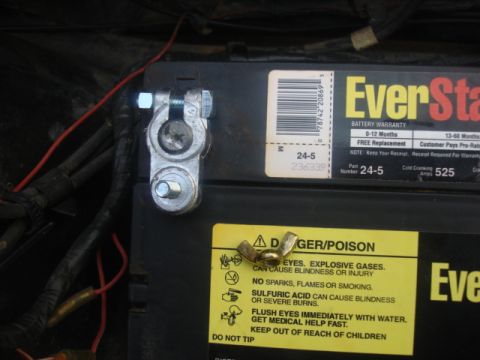

negitive wire 4.JPG 455 hits | 50.91 KB | Posted: 7/10/08 I put the new battery connector in place. i used a socket and tapped it home with a hammer.

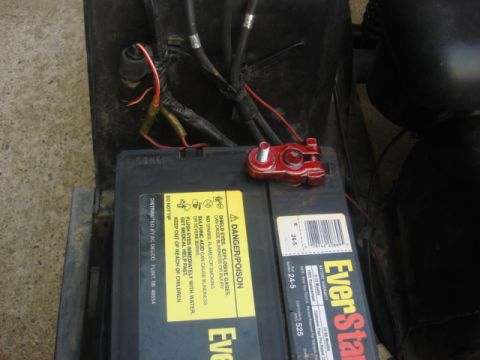

negitive wire 02.JPG 493 hits | 50.34 KB | Posted: 7/10/08 I masked off the threads and sprayed the connector with battery sealer.

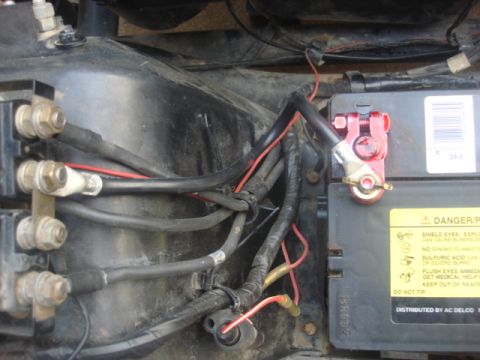

new negitive wire.JPG 538 hits | 58.72 KB | Posted: 7/10/08 I ran the new negitive wire the same way the old one went. this looks alot better. i had to wait 3 d...

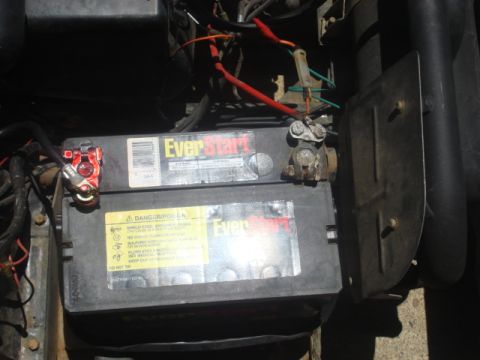

POS wire cleanup.JPG 636 hits | 48.06 KB | Posted: 7/10/08 I got the new POS wires in and now time to swap. here it is as i started.

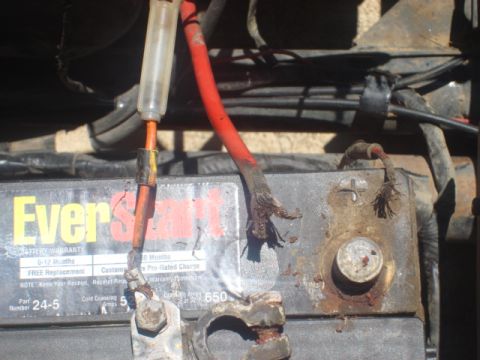

POS wire cleanup 02.JPG 475 hits | 62.38 KB | Posted: 7/10/08 The connector almost rotted off. i found a power line to the lights and a red with white stripe wire...

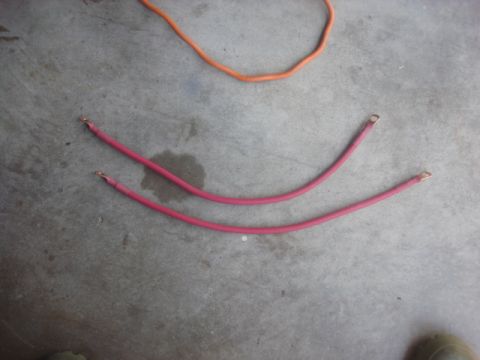

POS wire cleanup 03.JPG 449 hits | 42.38 KB | Posted: 7/10/08 Here are the 2 new POS cables. one to the started / generator and the other to the new power take of...

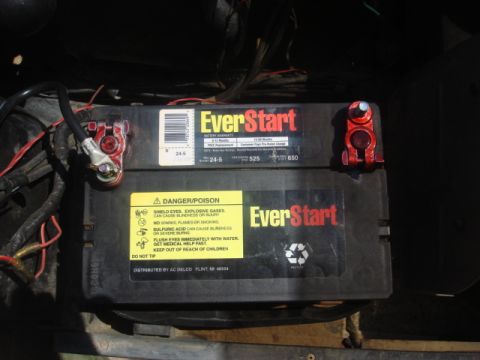

POS wire cleanup 04.JPG 436 hits | 46.3 KB | Posted: 7/10/08 I cleaned the battery post and installed the new connector. i I got lucky and had some red with whit...

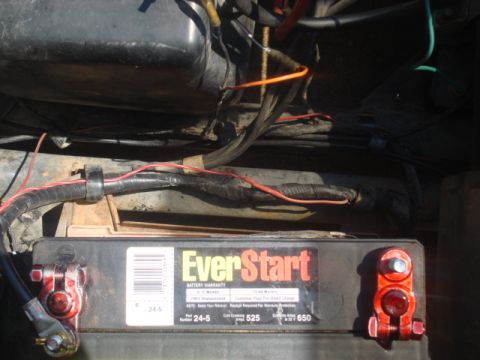

POS wire cleanup 05.JPG 442 hits | 55.7 KB | Posted: 7/10/08 If you look closely you can see the red heat shrink and the new wire.

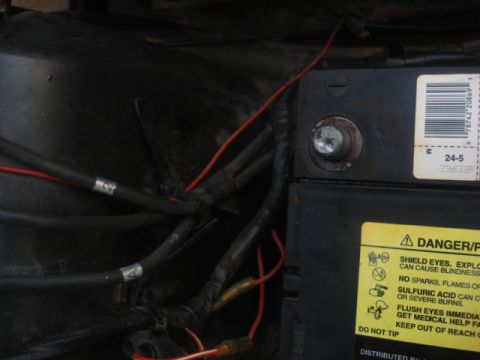

wire cleanup.JPG 440 hits | 38.97 KB | Posted: 7/10/08 here is the re-routed red wire

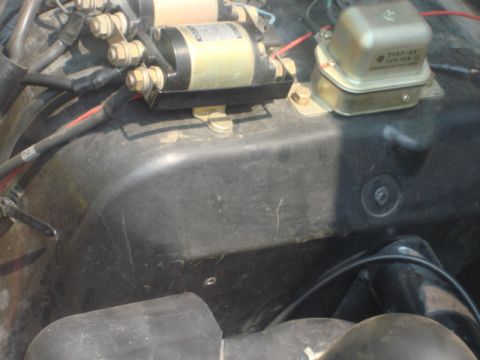

power tap placement.JPG 443 hits | 49.71 KB | Posted: 7/10/08 I get these power taps from chevy trucks and suburbans at the junk yard. i needed to find a spot tha...

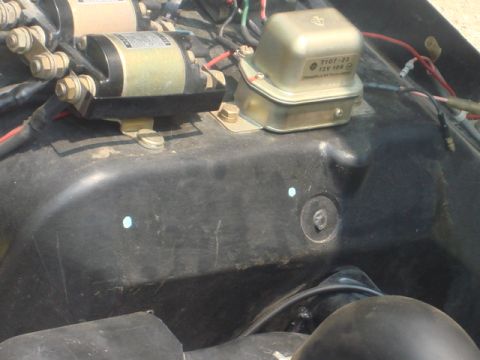

power tap 02.JPG 486 hits | 51.99 KB | Posted: 7/10/08 I marked the spot and drilled a couple holes---making sure it was clear under the cover and do not d...

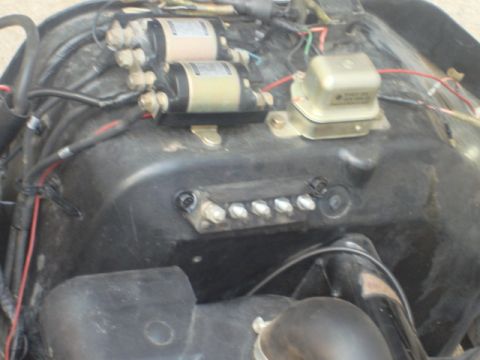

power tap 03.JPG 457 hits | 48.73 KB | Posted: 7/10/08 I used a couple bolts and washers and lock washers to hold the tap in place.

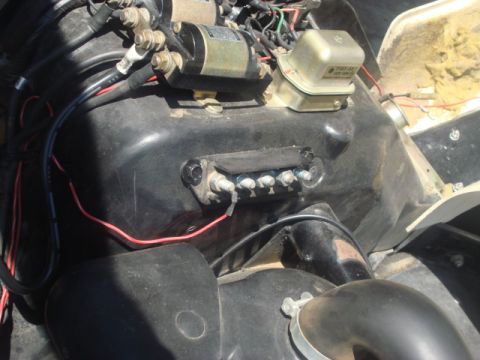

POS wire cleanup 06.JPG 459 hits | 59.51 KB | Posted: 7/10/08 I added a loop connector to the red/white wire and added it to the power tap.

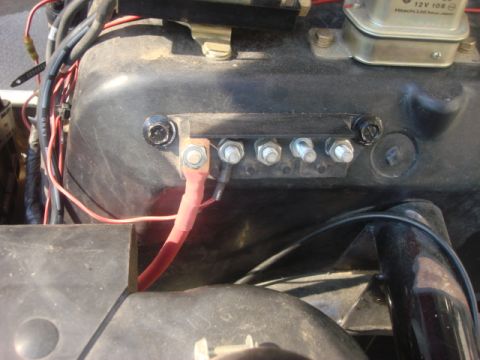

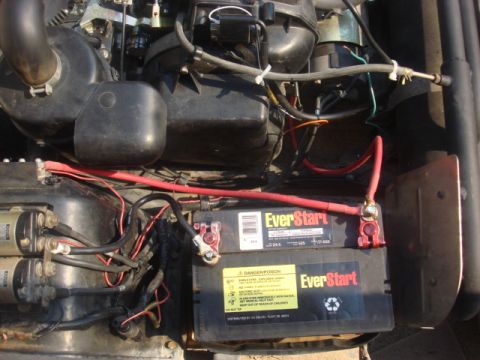

POS wire cleanup 08.JPG 437 hits | 58.69 KB | Posted: 7/10/08 Here is the new wire connected to power tap. this is alittle over kill but i did not want to have a ...

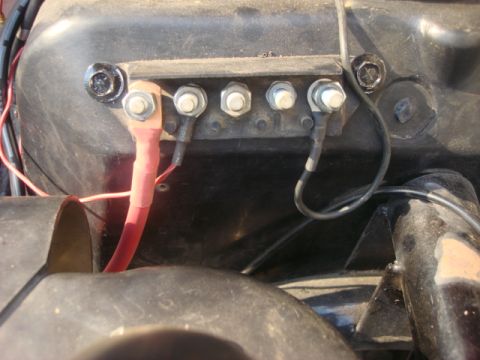

POS wire cleanup 11.JPG 461 hits | 56.87 KB | Posted: 7/10/08 i was going to run a mini fuse at the power tap for each line. i found this cool fuse block and deci...

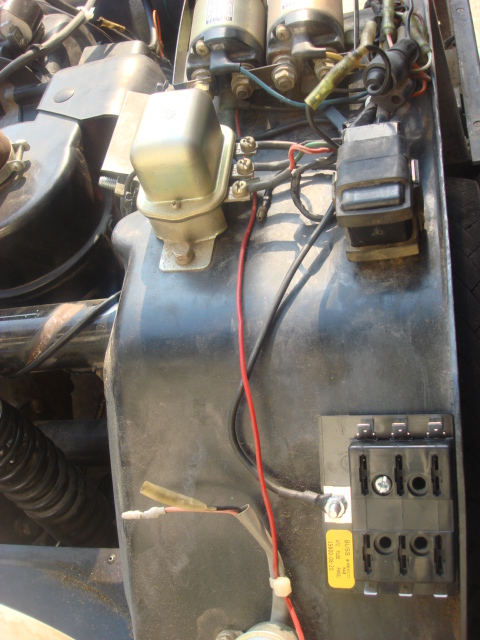

POS wire cleanup 10.JPG 474 hits | 61.92 KB | Posted: 7/10/08 here is the fuse holder and the main power tap.

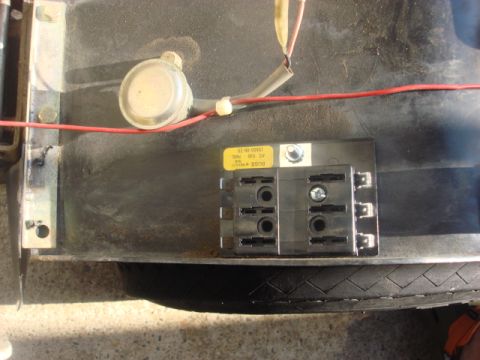

POS wire cleanup 09.JPG 461 hits | 57.62 KB | Posted: 7/10/08 here is a close up of the fuse box it hold 4 circuits. i drilled and bolted it to the wheel well lik...
Wiring Clean up
