golf cart lights.JPG
573 hits | 41.05 KB | Posted: 8/22/08

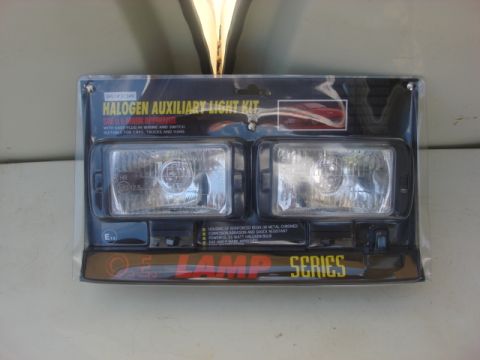

The front lights did not work on the cart and harbor freight had these on sale. not bad for $5

golf cart lights 02.JPG
550 hits | 33.29 KB | Posted: 8/22/08

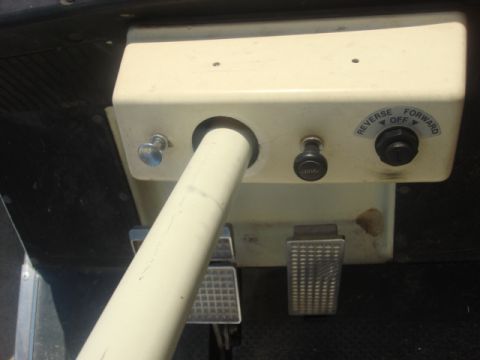

This was the dash. the silver pull switch is for the old light setup.

golf cart lights 17.JPG
464 hits | 26.75 KB | Posted: 8/26/08

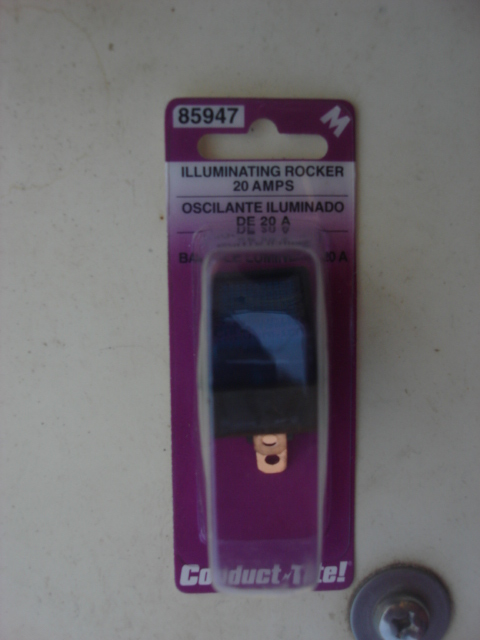

This is the lighted rocker switch.

golf cart lights 16.JPG
501 hits | 46.8 KB | Posted: 8/26/08

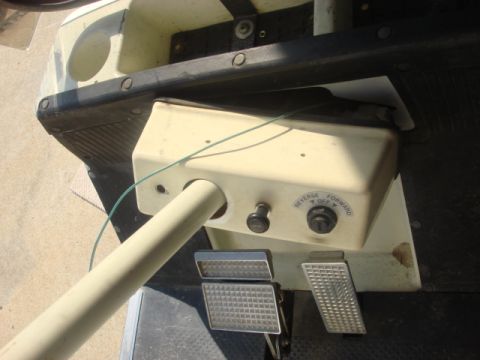

I ran new wires thru the whole cart. the last owner used 12 AWG solid core wire.

golf cart lights 04.JPG
485 hits | 30.04 KB | Posted: 8/22/08

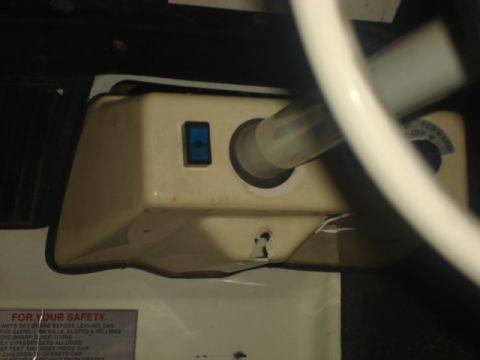

i removed the old switch and put this lighted switch in its place.

golf cart lights 03.JPG
510 hits | 39.64 KB | Posted: 8/22/08

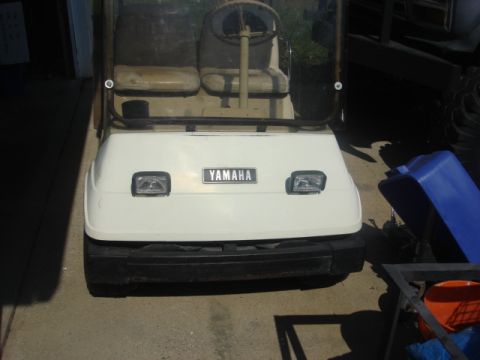

this is the old lights. the wiring was real poor so i decided to clean it up.

golf cart lights 18.JPG
510 hits | 36.39 KB | Posted: 8/26/08

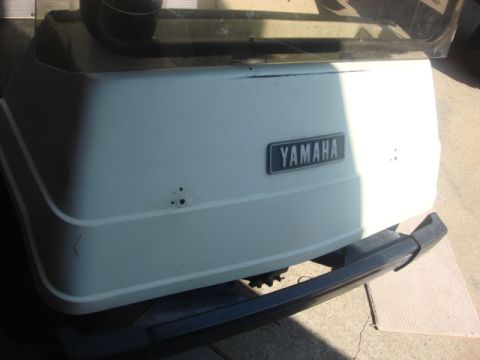

I removed all the old wiring and old lights.

golf cart lights 15.JPG
490 hits | 41.21 KB | Posted: 8/26/08

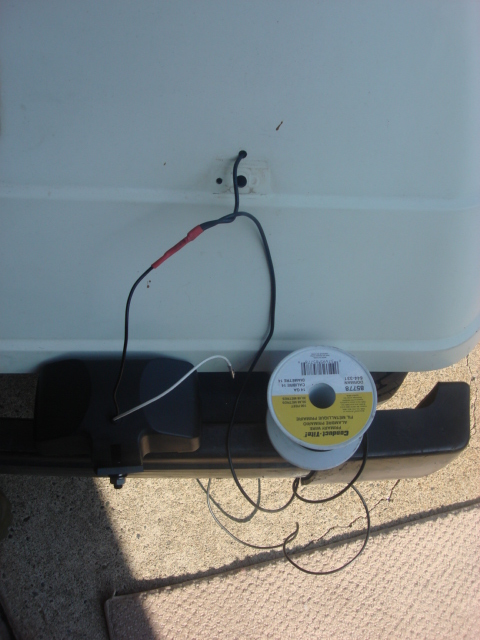

Here is the new ground wire. i soldered and heat shrank all connections.

golf cart lights 14.JPG
481 hits | 30.22 KB | Posted: 8/26/08

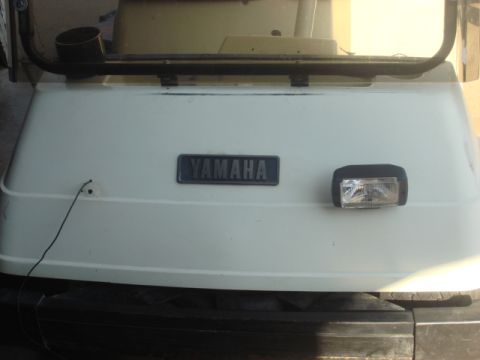

Here is the driver side all connected and ready to go. i ran the line over to the pass side to power...

golf cart lights 13.JPG
536 hits | 46.59 KB | Posted: 8/26/08

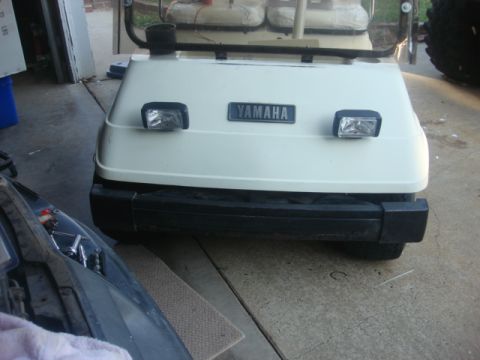

Both front lights are now installed and just need to be adjusted.

golf cart lights 05.JPG
494 hits | 32.73 KB | Posted: 8/26/08

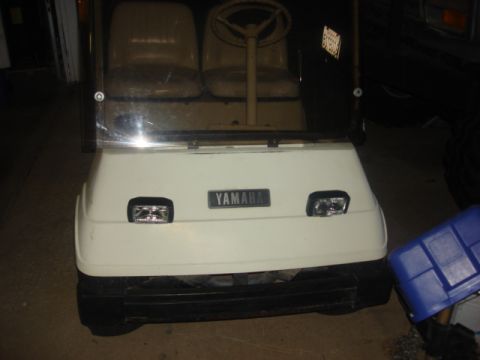

I decided to wait until night to test them. this took a couple hours to install but i took my time.

golf cart lights 06.JPG
502 hits | 28.33 KB | Posted: 8/26/08

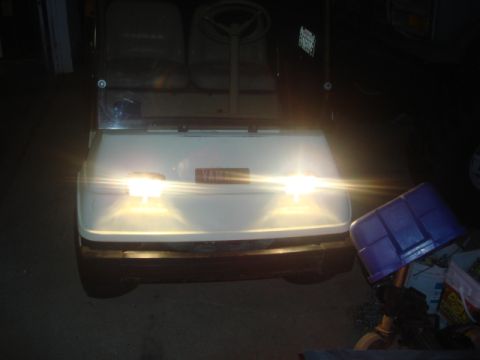

these are bright. (update--i still need to adjust the position, but the light lit the paths without ...

golf cart lights 07.JPG
491 hits | 52.22 KB | Posted: 8/26/08

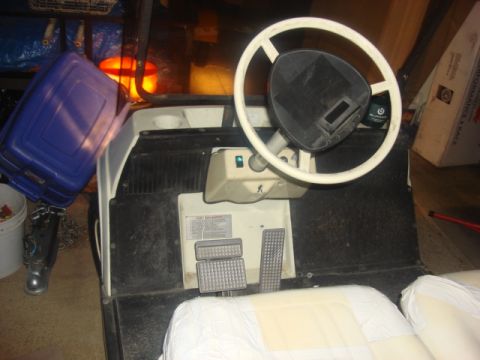

Here is the lit light switch. this worked perfectly on the camping trip. i had no issues with chargi...

golf cart lights 12.JPG
497 hits | 35 KB | Posted: 8/26/08

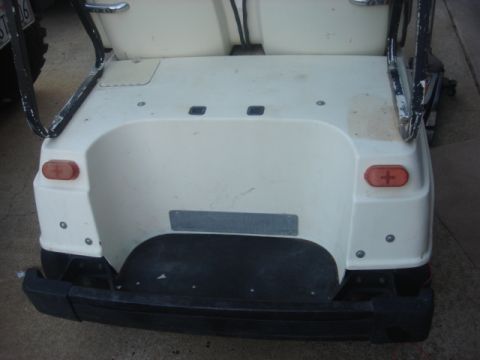

The rear lights were 40 watt bulbs and faded. I got LED lights and ran all new wires. this will drop...

golf cart lights 11.JPG
525 hits | 31.88 KB | Posted: 8/26/08

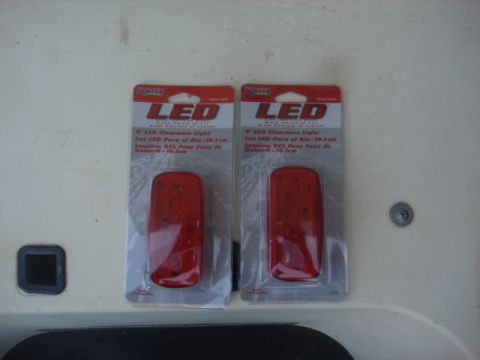

These LED lights were bought at a local auto parts store. These were $8 each.

horn 07.JPG
496 hits | 56.96 KB | Posted: 8/26/08

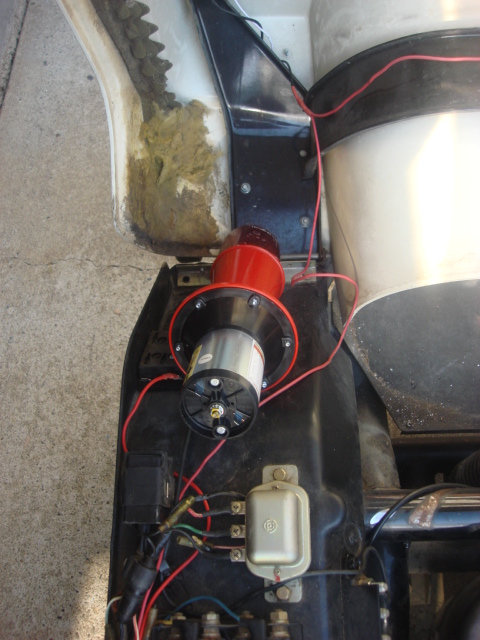

Here is the new rear light power wire.

golf cart lights 10.JPG
500 hits | 33.35 KB | Posted: 8/26/08

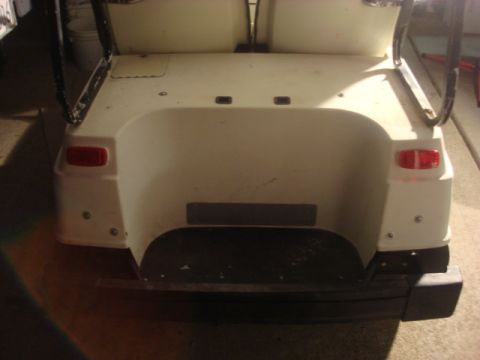

these have the same 2 wire connection as the original lights had. i even was able to use the old mou...

golf cart lights 08.JPG
437 hits | 40.31 KB | Posted: 8/26/08

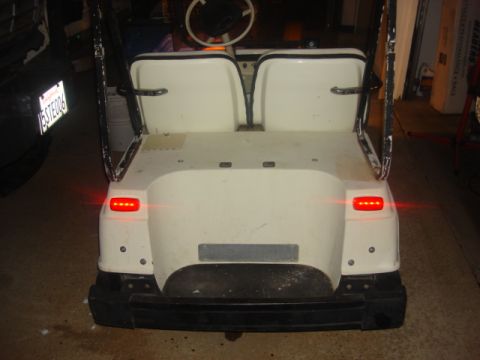

these are plenty bright and very visable. these are only running lights as i not decided to run brak...

golf cart lights 09.JPG
484 hits | 29.67 KB | Posted: 8/26/08

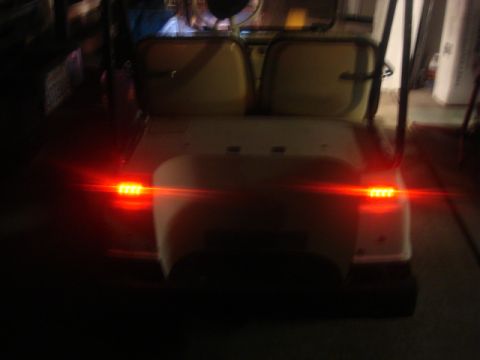

here they are at night and on. very bright and very low power consumption.
