482 hits | 125.88 KB | Posted: 3/6/05

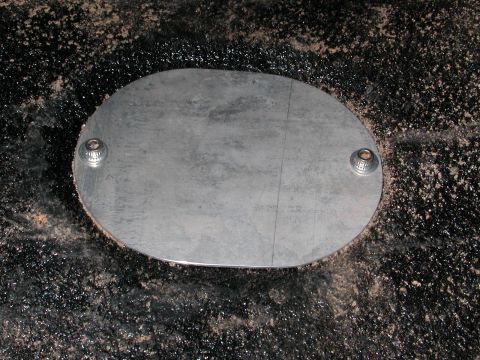

This is the way the front two body mount access covers look...

458 hits | 134.4 KB | Posted: 3/6/05

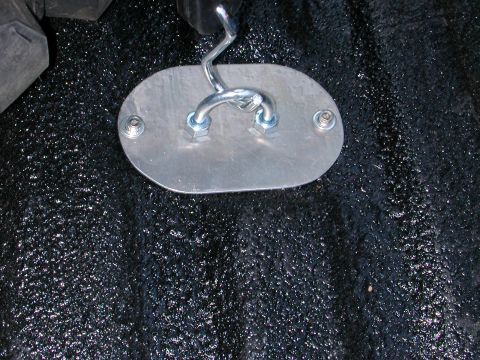

these are made with a reinforcing steel plate behind the aluminum, so as to keep the cover from bend...

528 hits | 82.84 KB | Posted: 3/6/05

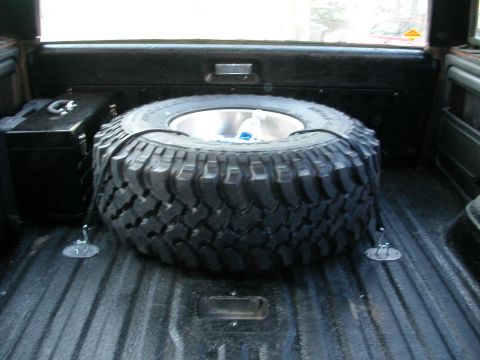

Finished product, tested before posted!

465 hits | 68.98 KB | Posted: 3/6/05

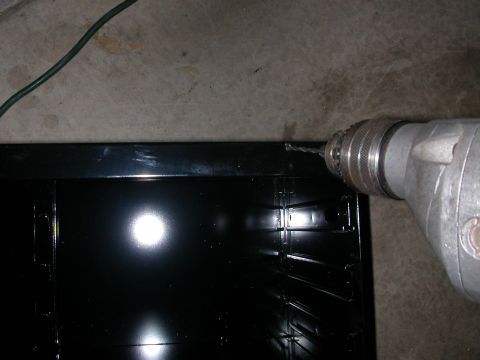

drilling the toolbox to match slider specs.

460 hits | 67.82 KB | Posted: 3/6/05

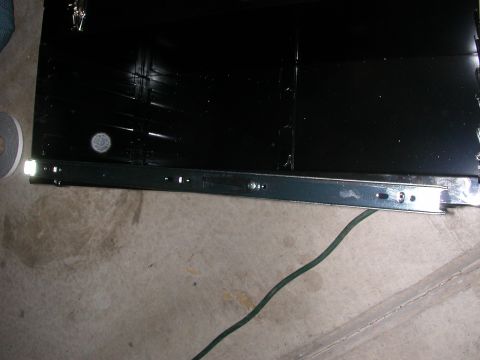

test fitting the smallest slider section.

490 hits | 61.45 KB | Posted: 3/6/05

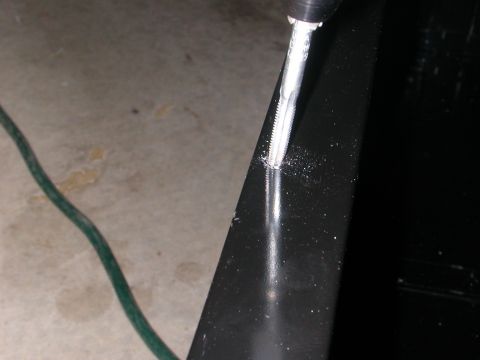

tapping all holes drilled in the toolbox, using a #8 5/32 tap.( i think)

455 hits | 88.06 KB | Posted: 3/6/05

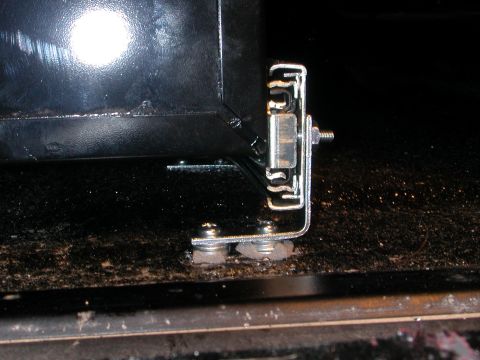

mount to the floor using #10 coarse thread metal screws & L-brackets. use washers for proper spacing...

450 hits | 87.25 KB | Posted: 3/6/05

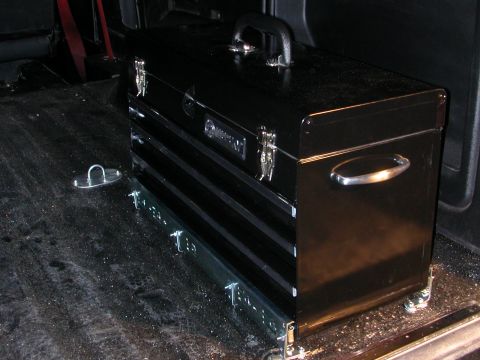

Finished

534 hits | 87.79 KB | Posted: 3/6/05

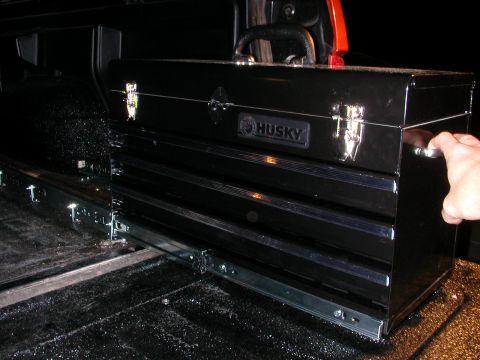

Finished AND Functional
