Heater_Plenum 005.jpg
935 hits | 68.35 KB | Posted: 9/12/06

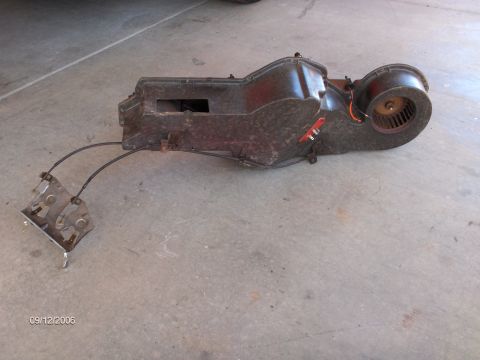

The heater plenum which houses the heater blower motor and the heater core. After the new parts arri...

Heater_Plenum 003.jpg
907 hits | 69.86 KB | Posted: 9/12/06

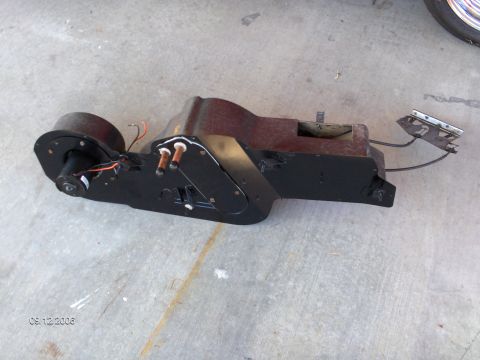

Now you can see it's part metal and part fiberous plastic. I replaced the original heater blower mot...

Heater_Plenum 002.jpg
836 hits | 75.73 KB | Posted: 9/12/06

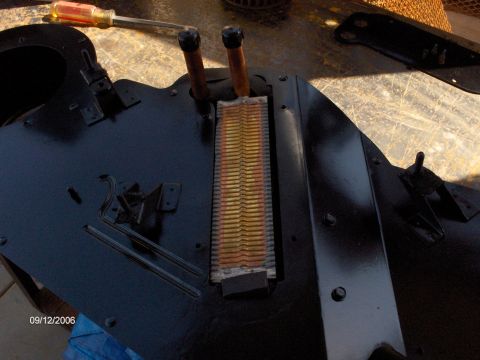

A close up of the new heater core. Notice the heater blower motor isn't installed in it's hole yet f...

837 hits | 74.95 KB | Posted: 9/16/06

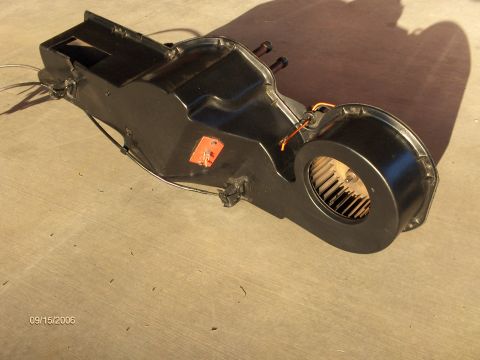

Finally, the finished product. Ready for Bob and I to install.

1048 hits | 74.92 KB | Posted: 10/8/06

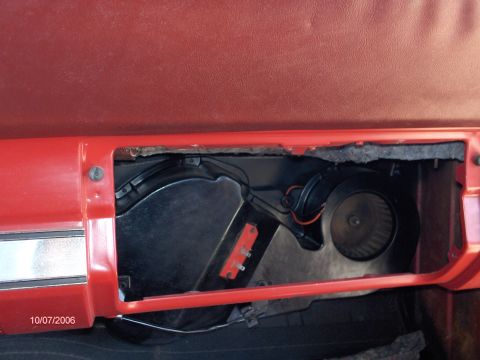

The heater plenum installed in the Fairlane.

1109 hits | 87.5 KB | Posted: 10/8/06

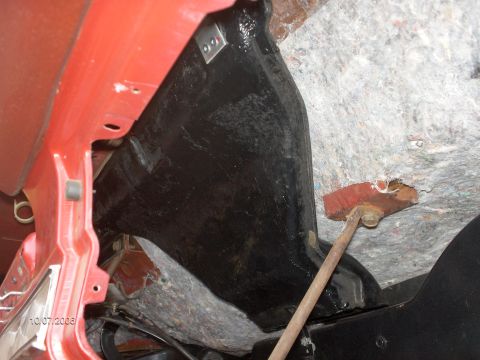

This heater vent is made of cardboard. It had a big hole. Bob patched it with a fiberglass repair k...
