ranger 069.jpg
774 hits | 74.14 KB | Posted: 3/24/05

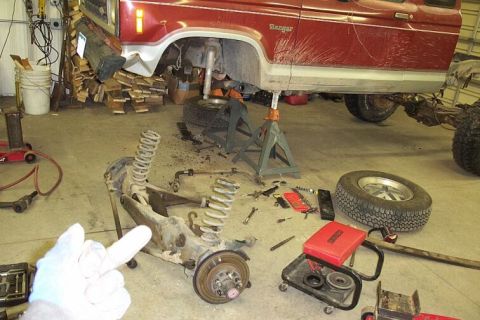

First, the TTB must come out. Mandatory TTB salute

ranger 071.jpg
597 hits | 74.25 KB | Posted: 3/28/05

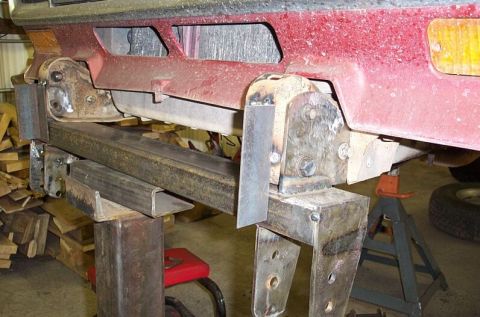

Here's the front xmember roughed in. It'll be cleaned up later

ranger 070.jpg
619 hits | 84.11 KB | Posted: 3/28/05

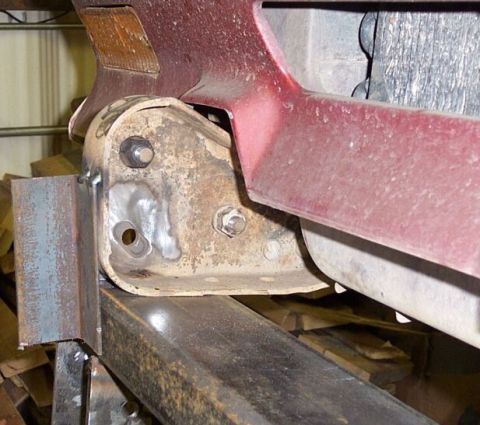

I picked up the three existing holes in the framehorns, and even re-used the TTB hardware LOL

ranger 074.jpg
577 hits | 84.06 KB | Posted: 3/28/05

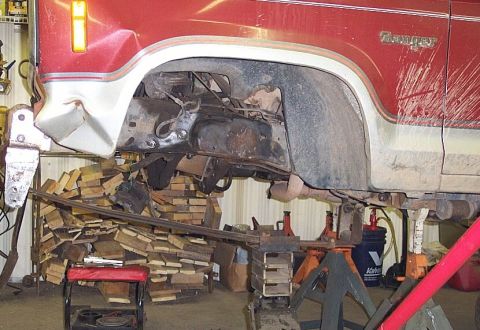

Front springs are from a '90ish 'Burb

ranger 075.jpg
569 hits | 74.04 KB | Posted: 3/28/05

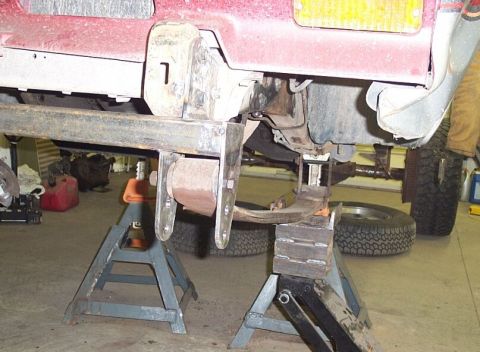

I really hope I can use the top-most hole up front and trim my ugly hangers

ranger 073.jpg
562 hits | 68.5 KB | Posted: 3/28/05

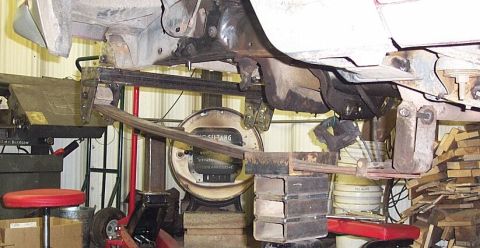

ranger 076.jpg
659 hits | 64.45 KB | Posted: 3/29/05

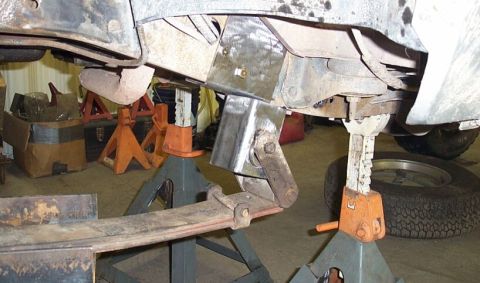

Front hanger for rear leafs roughed in. 3" square. The two bolts pic'd are in pre-existing holes -...

ranger 077.jpg
596 hits | 70 KB | Posted: 3/29/05

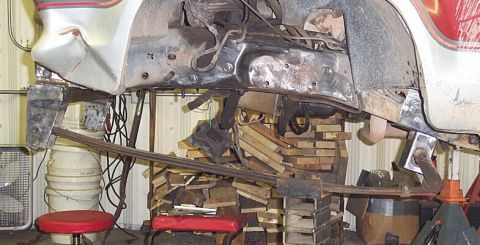

The bigger picture, so to speak

ranger 079.jpg
628 hits | 74.67 KB | Posted: 4/2/05

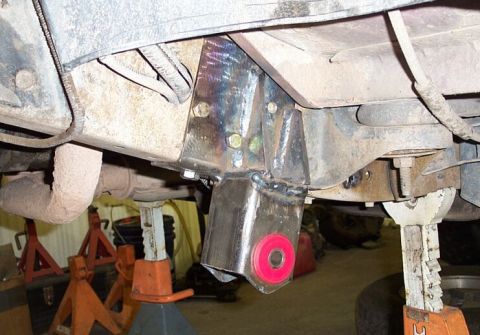

Rear hanger for front springs mostly roughed in

ranger 081.jpg
549 hits | 78.43 KB | Posted: 4/2/05

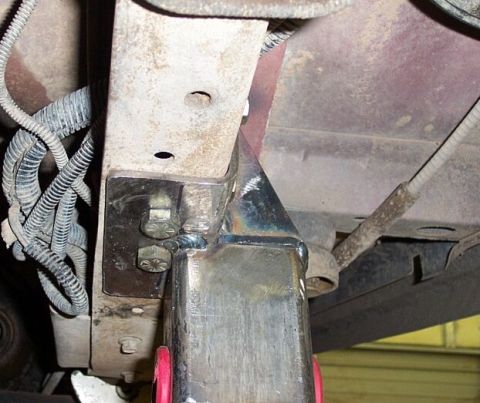

Picked up pre-existing holes for old radius arm brackets here

ranger 082.jpg
635 hits | 77.79 KB | Posted: 4/2/05

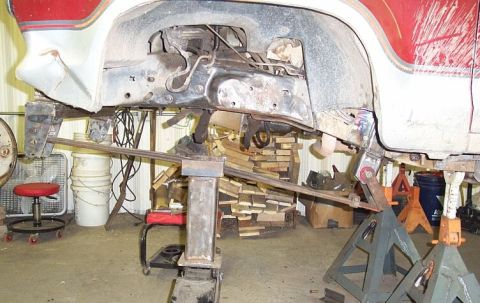

Test - weighted, just coming off jackstand on this side. I suspect lift leaves will be required

ranger 083.jpg
822 hits | 60.47 KB | Posted: 4/7/05

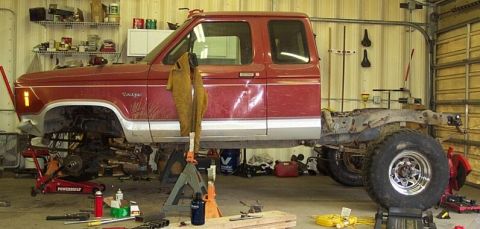

test fit on stock GM front springs, simulated height if the same size tire were mounted up front - n...

ranger 085.jpg
807 hits | 73.28 KB | Posted: 4/7/05

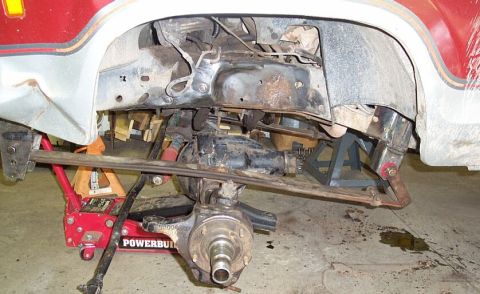

weighted, I think positive caster is a bit much, somewhere around 9 or 10 degrees, easy to fix

ranger 088.jpg
753 hits | 71.45 KB | Posted: 4/18/05

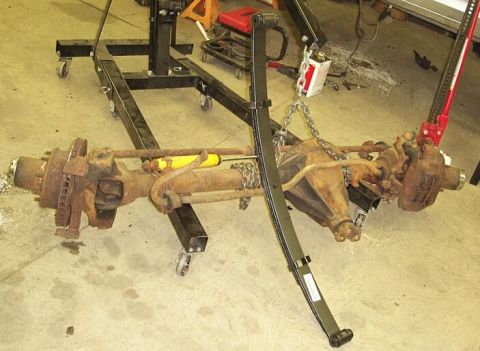

Front 60 arriveth and front 4" Tuff Country springs

ranger 095.jpg
769 hits | 71.63 KB | Posted: 6/11/05

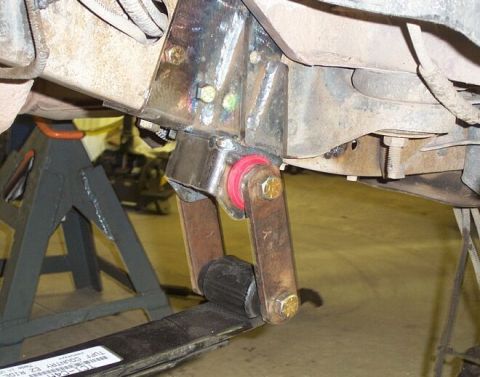

Rear hanger for front springs sectioned to reduce postive caster

ranger 092.jpg
703 hits | 73.31 KB | Posted: 6/11/05

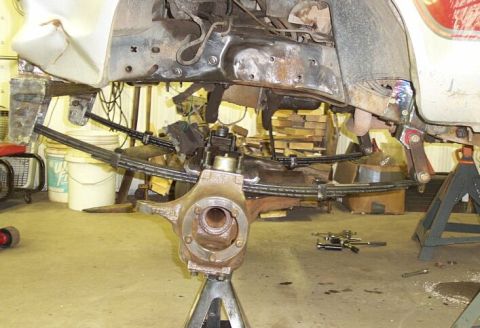

With the shorter rear hanger caster is approx +7 to 7.5; should be perfect

ranger 093.jpg
627 hits | 68.11 KB | Posted: 6/11/05

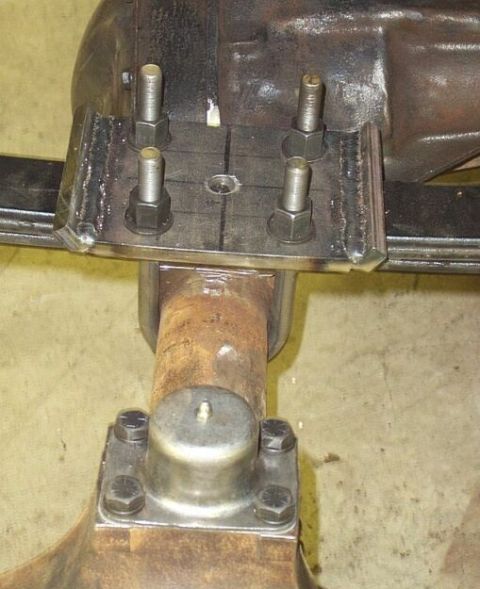

Driver's side spring plate made from 1/2" plate, fits like a glove. King pins rebuilt
