ranger 091.jpg
637 hits | 95.66 KB | Posted: 4/22/05

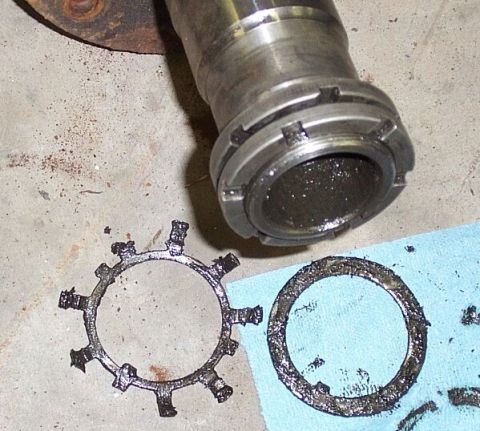

locknut pieces

D60 001.jpg
539 hits | 70.78 KB | Posted: 5/1/05

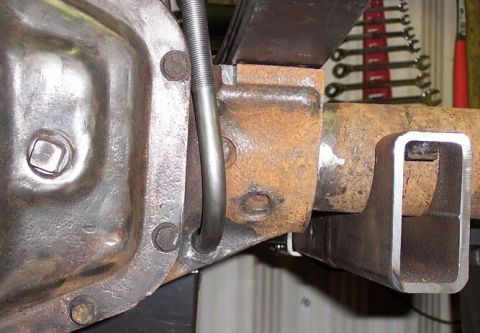

Drilled 3/4" hole in the web for u-bolt

D60 003.jpg
492 hits | 75.1 KB | Posted: 5/1/05

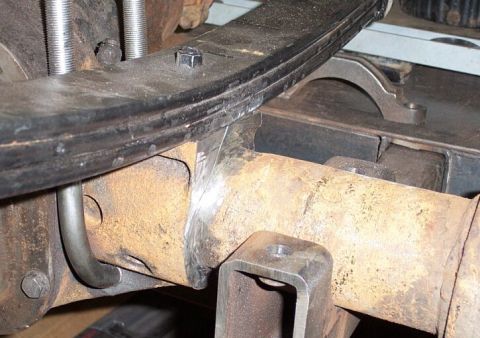

Since I'm using 2.5" springs I needed to take about 1/4" off this side of the centersection, all the...

D60 004.jpg
482 hits | 70.26 KB | Posted: 5/1/05

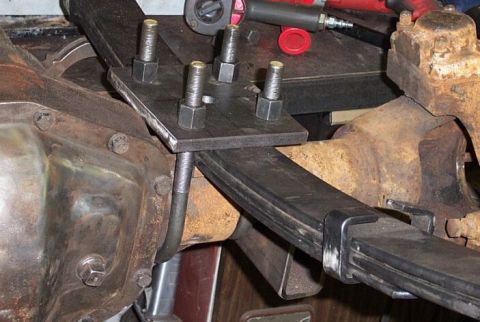

Custom driver's side spring plate using 1/2" plate. U-bolt bends are 3.75" and 3.125"

D60 005.jpg
585 hits | 72.69 KB | Posted: 5/1/05

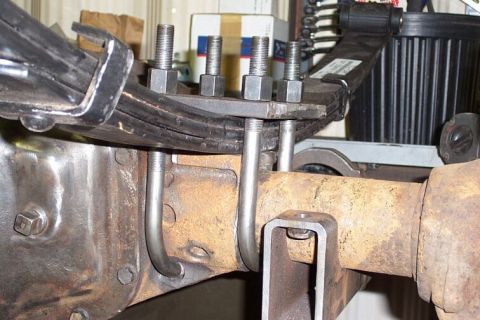

The fit came out well

D60 006.jpg
587 hits | 75.88 KB | Posted: 5/1/05

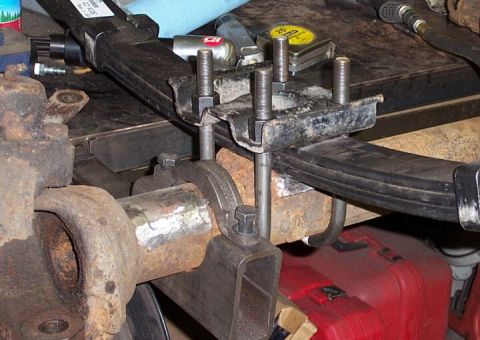

Passenger side spring plate is just an old 8.8 plate with a bit of reaming to the holes

D60 008.jpg
617 hits | 53.09 KB | Posted: 5/1/05

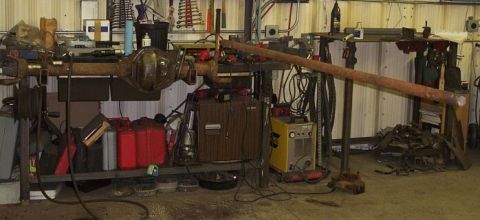

A 7'4" breaker made quick work of the upper kingpin spindles

D60 007.jpg
778 hits | 57.45 KB | Posted: 5/1/05

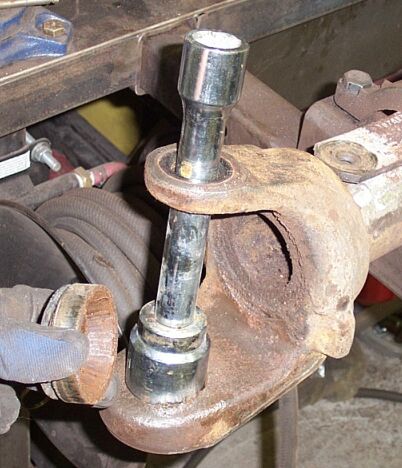

Once the upper spindles were out I used a large socket and extension to pound out the lower cap and ...

D60 010.jpg
1100 hits | 79.57 KB | Posted: 5/8/05

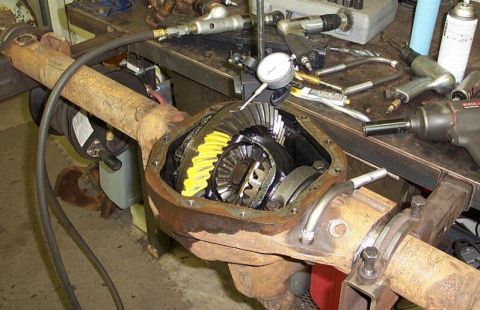

Not re-gearing at this time, but checked pattern (good enough) and backlash (.008 )

ranger 103.jpg
787 hits | 85.88 KB | Posted: 7/12/05

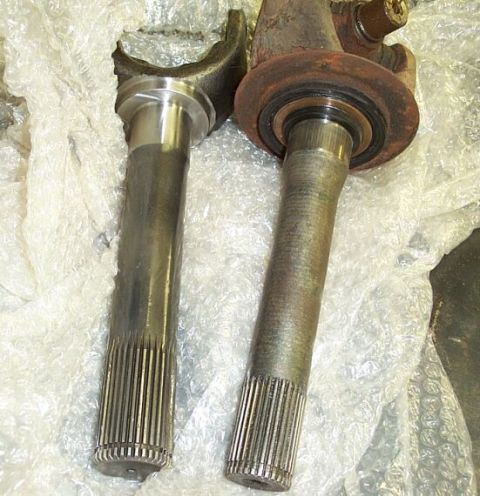

35 spline Yukon stub shafts vs stock

ranger 105.jpg

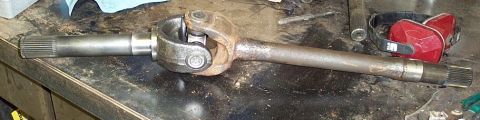

660 hits | 43.98 KB | Posted: 7/12/05
short side assembled, keeping the neck-down inner shafts for now
