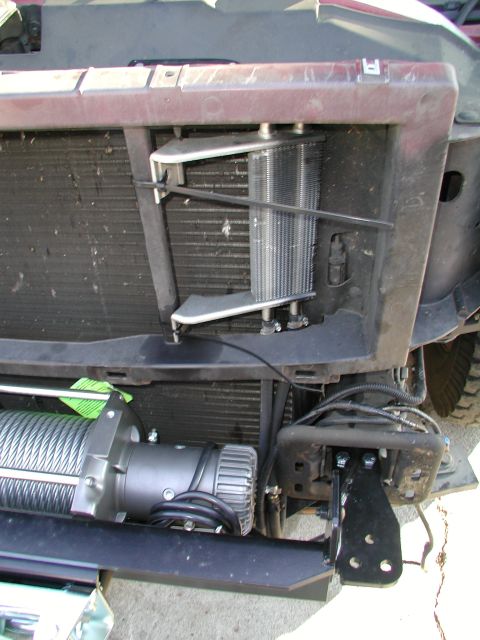

WarnBumper1.JPG 1563 hits | 71.12 KB | Posted: 12/2/03 Relocating power steering cooler to make room for winch.

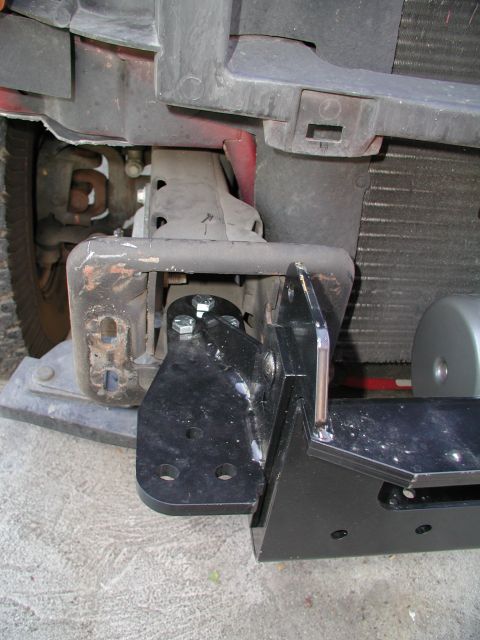

WarnBumper2.JPG 1833 hits | 69.69 KB | Posted: 12/2/03 Winch cradle mounts in tow hook holes. Bumper hangs on winch mount.

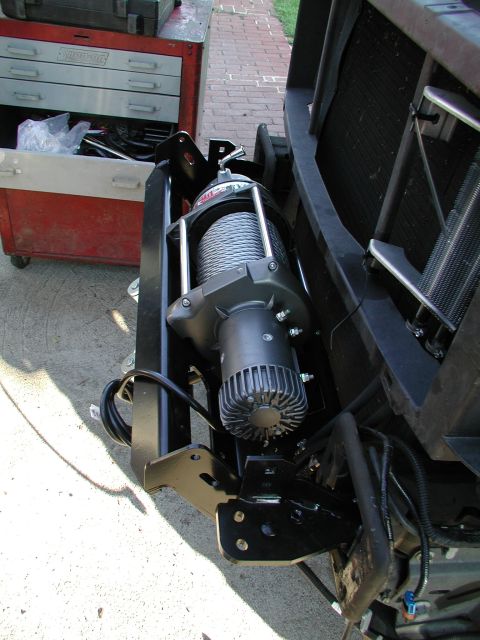

WarnBumper3.JPG 1531 hits | 73.56 KB | Posted: 12/2/03 I had to tilt winch tray forward to put in M15000 winch. After mounting my HS9500, I realized the c...

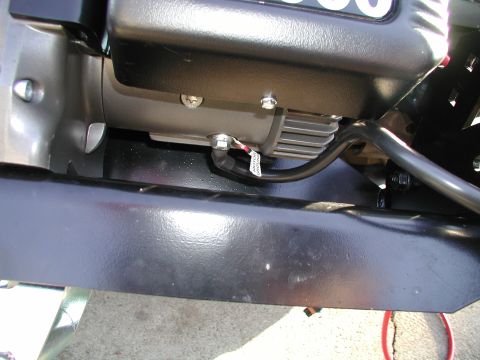

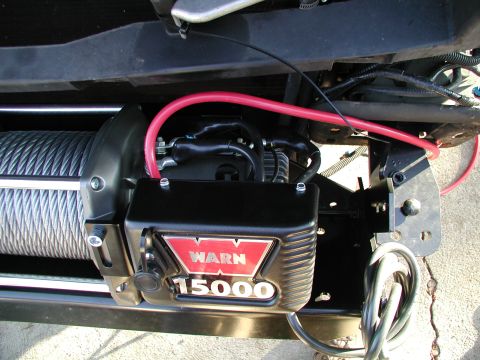

WarnBumper5.JPG 1482 hits | 69.85 KB | Posted: 12/2/03 Must connect controller ground to motor ground terminal. As you can see everything is very tight wi...

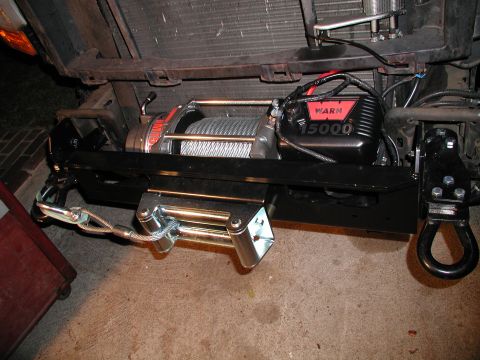

WarnBumper6.JPG 2694 hits | 88.16 KB | Posted: 12/2/03 Winch tray is completely assembled with winch completed and operational. I had to undo the tow hook...

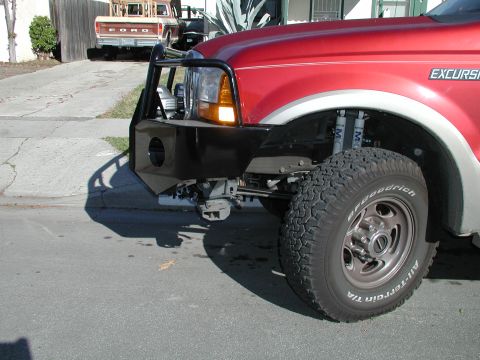

WarnBumper7.JPG 3821 hits | 83.88 KB | Posted: 12/2/03 Bumper side view, notice blocker beam behind and below bumper. I think I am going to take it off.

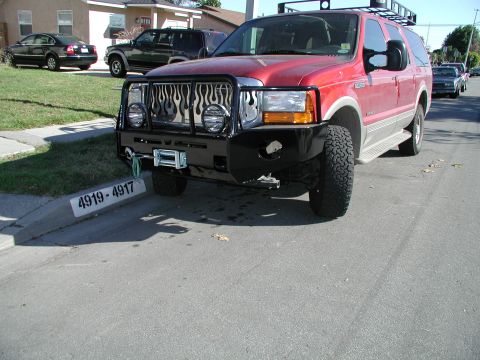

WarnBumper8.JPG 1841 hits | 90.78 KB | Posted: 12/2/03 Bumper mounted in final location, I just needed to add fog lights that I wired into factory harness ...

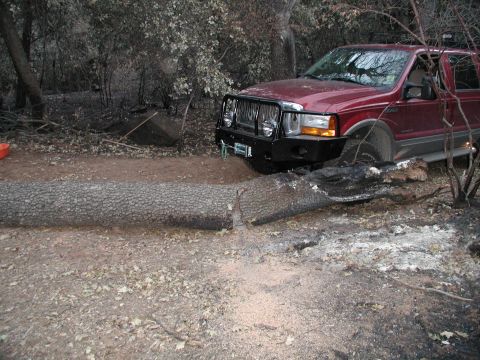

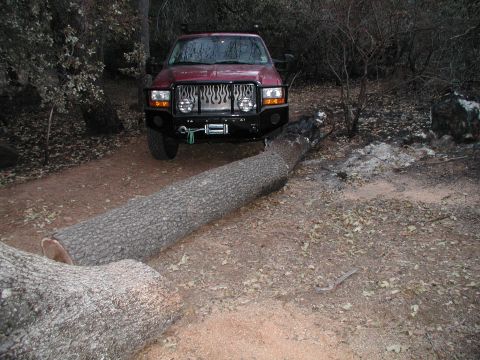

XClearingRoad1.JPG 1501 hits | 108.45 KB | Posted: 12/2/03 Using new bumper as a bump stop while clearing a road in Julian, CA after the fires.
Winch Bumper
