460crank 003.jpg
542 hits | 42.84 KB | Posted: 5/17/05
My new 4.5 stroke Scat crank

460crank 006.jpg
548 hits | 39.41 KB | Posted: 5/17/05
Chamfered oil holes

460crank 009.jpg
409 hits | 54.11 KB | Posted: 5/17/05
Looks like it went through a rock tumbler

460crank 027.jpg
381 hits | 50.1 KB | Posted: 5/17/05
The only casting flaw I found

459 hits | 8.19 KB | Posted: 5/17/05

545KitBox 003.jpg
369 hits | 52.11 KB | Posted: 5/18/05
Scat 6.8 rods

545KitBox 006.jpg
402 hits | 48.19 KB | Posted: 5/18/05
545 piston

545KitBox 010.jpg
444 hits | 37.61 KB | Posted: 5/18/05

658 hits | 60.38 KB | Posted: 5/18/05
piston spec card

545KitBox 002.jpg
394 hits | 52.18 KB | Posted: 5/18/05
All boxed up

545KitBox 007.jpg
408 hits | 51.42 KB | Posted: 5/19/05
Canton windage screen

545KitBox 010.jpg
376 hits | 29.85 KB | Posted: 5/19/05
Slosh baffle in stock Canton pan

391 hits | 51.97 KB | Posted: 9/5/05
Piston rings @.75 from the bottom of the cylinder.

525 hits | 64.16 KB | Posted: 9/6/05
Shows the skirt on BDC

401 hits | 28.54 KB | Posted: 9/24/05
Ford Motorsports cam sproket after machining for the thrust plate

406 hits | 39.53 KB | Posted: 9/24/05
Cam sprocket with thrust bearing

398 hits | 48.84 KB | Posted: 9/24/05
.700lift. Large sucking sound??

471 hits | 56.76 KB | Posted: 9/24/05
XR304R-10 Xtreme solid roller
266/272 @ .05" .688"/.698" lift on 110 LSA

414 hits | 79.63 KB | Posted: 11/22/05
Oil hole parallel to roller axle.

403 hits | 44.6 KB | Posted: 1/12/06
The cut in the cam gear for the fuel pump cam

388 hits | 54.55 KB | Posted: 1/12/06
Here's the offset on the fuel pump cam

362 hits | 27.57 KB | Posted: 3/19/06
My nitrous bottle install

347 hits | 22.96 KB | Posted: 3/19/06
My dedicated fuel supply for nitrous.

387 hits | 74.91 KB | Posted: 7/30/06
full lift .700

359 hits | 81.33 KB | Posted: 8/13/06
Pro Products sfi balancer

394 hits | 92.94 KB | Posted: 8/26/06
Crane wide body roller rockers

365 hits | 77.26 KB | Posted: 8/26/06
Good fit w/Jomar girdle

376 hits | 92.94 KB | Posted: 8/26/06
Crane wide body roller rockers

346 hits | 75.53 KB | Posted: 8/26/06
Crane wide body roller rockers

481 hits | 51.61 KB | Posted: 8/26/06
FRPP bolt-on roller rocker for a 351C

382 hits | 77.73 KB | Posted: 9/24/06
Crites headers. Average quality. This is a ground-down weld covering burnthrough holes in the header...

427 hits | 81.65 KB | Posted: 9/24/06
Left side Crites headers

461 hits | 79.03 KB | Posted: 9/24/06
Passenger side pipes

384 hits | 80.65 KB | Posted: 9/24/06
Not much finger room here for tightning header bolts.

445 hits | 87.31 KB | Posted: 9/24/06
Crites headers clear the Canton pan.

385 hits | 71.9 KB | Posted: 9/24/06
Here's a typical piece of slag hanging in the header tube. This requires grinding flat.

387 hits | 83.63 KB | Posted: 9/24/06
Had to fab a brace to steady the A/C adjust pulley, in preperation to running the WP on my homemade ...

471 hits | 104.25 KB | Posted: 9/24/06
My thrown-together, homemade test stand!

461 hits | 97.91 KB | Posted: 9/24/06
test stand

600 hits | 89.18 KB | Posted: 9/24/06
Battery, MSD Digital6, wires going to MSD dist., +/- battery wires, alt wire from alt to battery.

HPIM0678.MPG
804 hits | 36.94 MB | Posted: 9/24/06

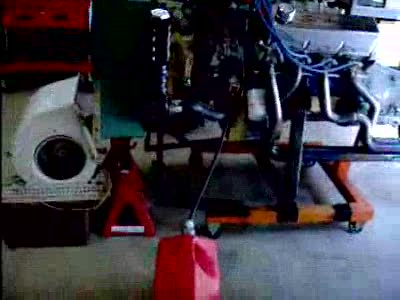

A LARGE, crappy quality video file (taken with my digital camera) of the initial start-up of my 545 ...

617 hits | 72.68 KB | Posted: 9/24/06
My Phantom II gauges were working fine until the elec temp gauge quit!

549 hits | 120.02 KB | Posted: 11/13/06
Loaded and ready to take the 545 to the dyno

HPIM0727.MPG
683 hits | 6.21 MB | Posted: 11/13/06

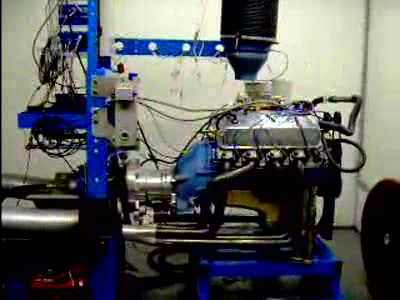

On the SuperFlow 902 dyno, warming up before the 1st pull

540 hits | 69.28 KB | Posted: 4/14/07
FMS cam sprocket before machining

625 hits | 90.88 KB | Posted: 11/13/06
Hooking up all the sensors-ran out of time, so after 3pulls and 6k rpm limit, with no changes, 641ft...

621 hits | 69.28 KB | Posted: 4/14/07
FMS cam sprocket before machining
