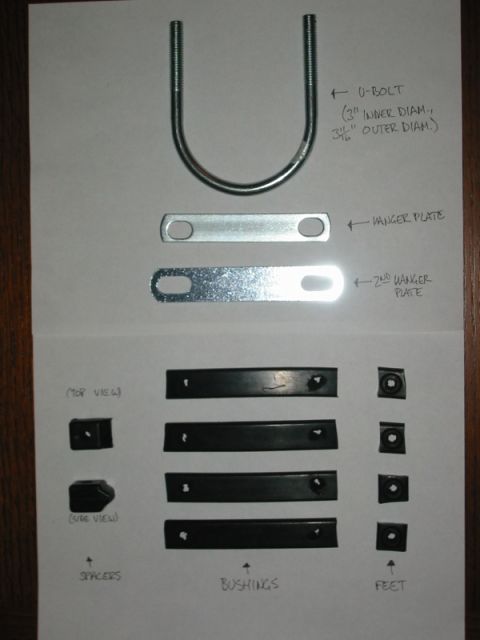

01 - Modified parts.jpg
591 hits | 32.07 KB | Posted: 3/30/05
Detail showing parts after modifying the hook straps.

02 - Lower hanger and feet in place.jpg
564 hits | 27.12 KB | Posted: 3/30/05

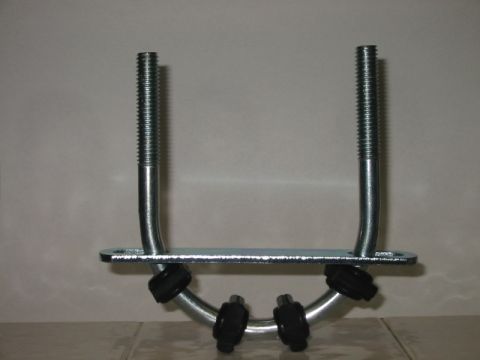

The lower hanger plate and feet in place.

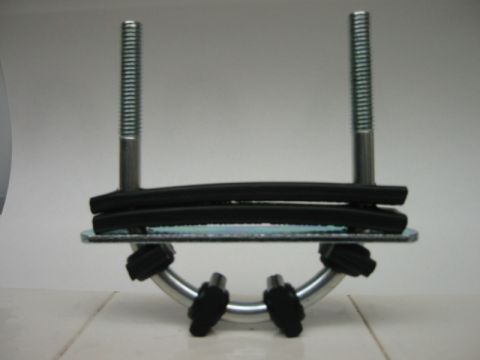

03 - Lower bushings installed.jpg
523 hits | 24.38 KB | Posted: 3/30/05
Bolt with the lower bushings installed.

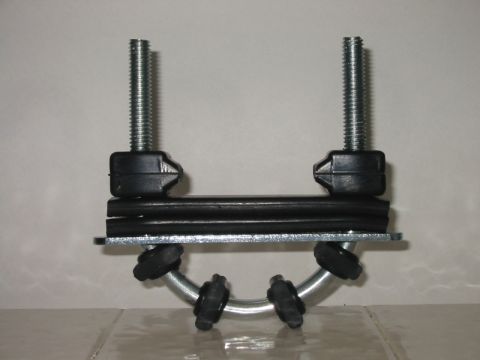

04 - Spacers on.jpg
556 hits | 30.64 KB | Posted: 3/30/05
Spacers are on and it's ready for a test-fit.

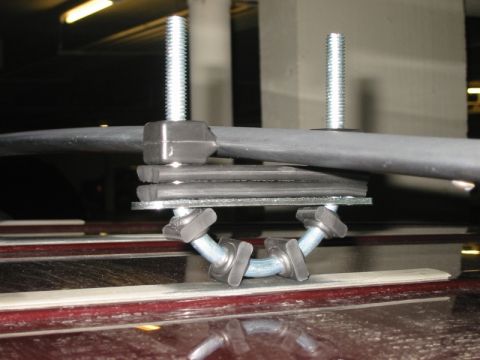

05 - Test fit.jpg
543 hits | 46.09 KB | Posted: 3/30/05
Test fitting to the rail prior to any necessary trimming of the spacer ends.

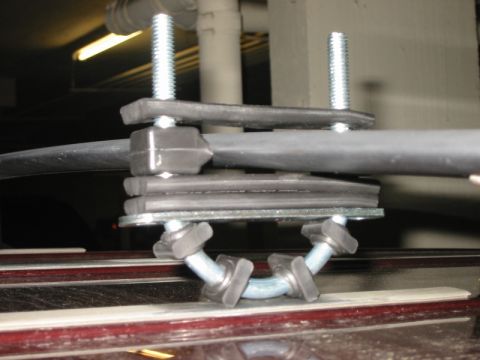

06 - Rail bushing installed.jpg
582 hits | 43.78 KB | Posted: 3/30/05
Fitment of the rail bushing.

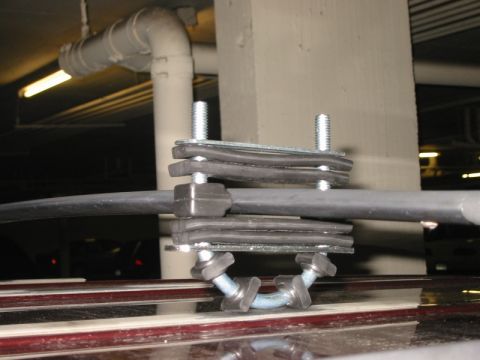

07 - Jack bushing and upper hanger installed.jpg
623 hits | 44.04 KB | Posted: 3/30/05
Now with the jack bushing and upper hanger plate.

08 - Compressing bushings.jpg
713 hits | 44.8 KB | Posted: 3/30/05

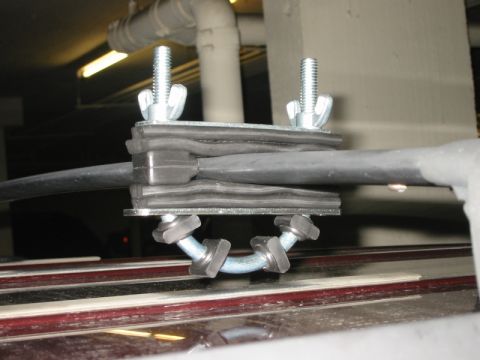

Compressing the bushings prior to fitting the jack.

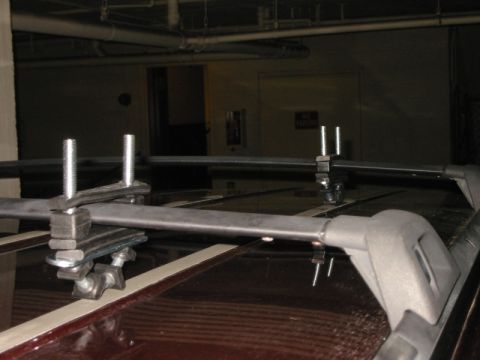

09 - Ready to fit jack.jpg
870 hits | 39.27 KB | Posted: 3/30/05
How the mounts should look before placing the jack on them. Note that the upper hanger plate and ja...

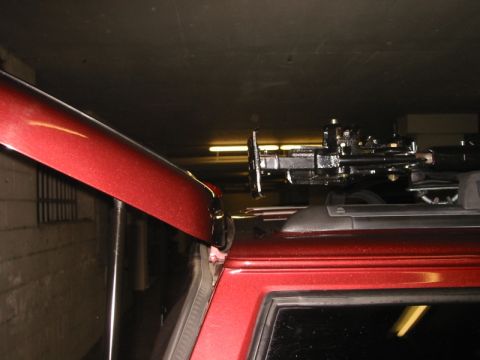

10 - Clears the rear hatch.jpg
1095 hits | 40.52 KB | Posted: 3/30/05
View showing how much clearance is between the rear hatch and the baseplate of the jack.
