bronco 014.jpg
877 hits | 55.93 KB | Posted: 3/12/06

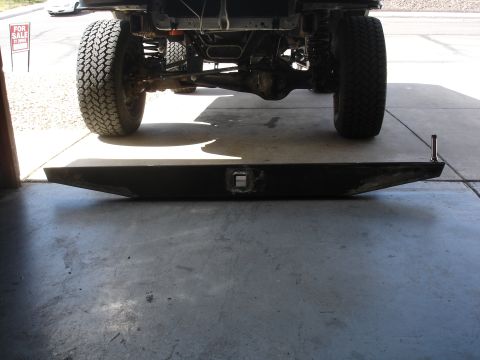

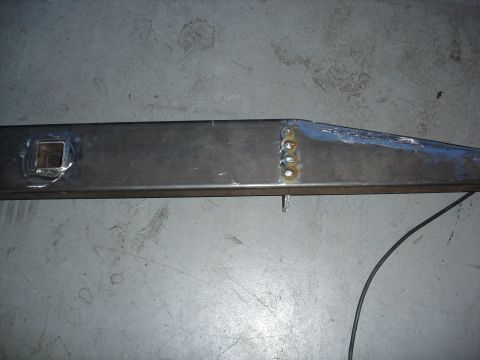

This is what I have so far. It started with a piece of 2x6. I tappered the ends for maximum clearanc...

bronco 015.jpg
697 hits | 49.59 KB | Posted: 3/12/06

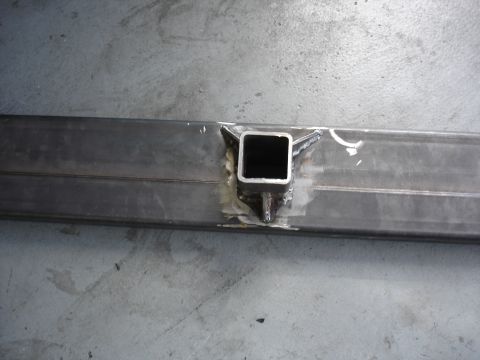

rear shot of reciever. I gusetted it with 1/4" plate for extra strength.

bronco 016.jpg
702 hits | 35.48 KB | Posted: 3/12/06

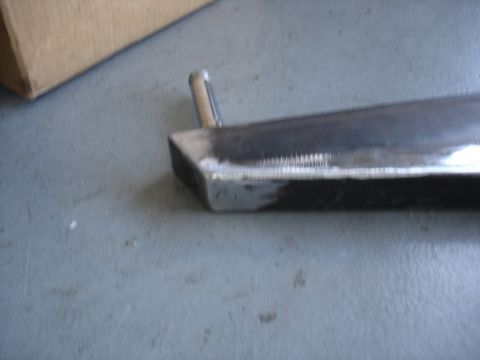

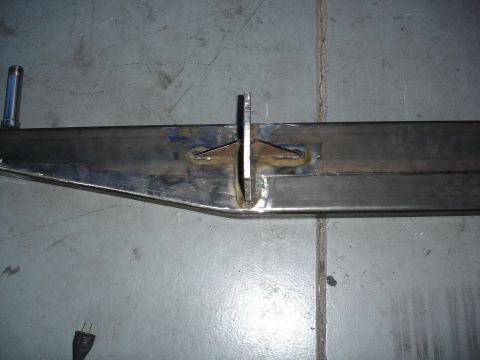

Rock stomper pivot hinge. I plug welded it on the bottom for extra strength.

bronco 017.jpg
761 hits | 73.23 KB | Posted: 3/12/06

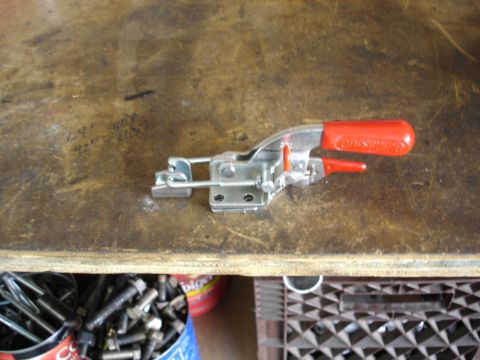

This is the latch I'm going to use for the tire carrier. It's made by DE-STA-CO and rated for 700lbs...

bronco 018.jpg
793 hits | 49.55 KB | Posted: 3/12/06

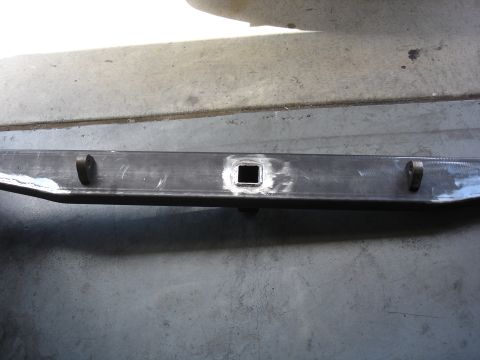

I'm also going to weld these shackle mounts on. The brackets that mount to the frame will go all the...

bronco 027.jpg
758 hits | 56.55 KB | Posted: 3/27/06

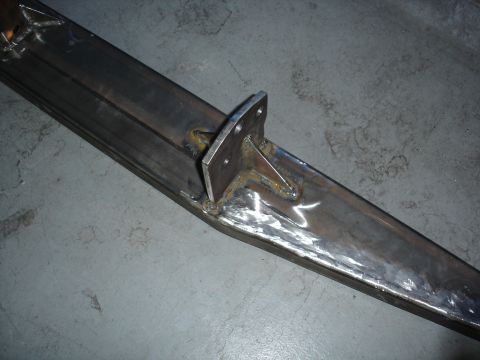

Brackets installed and welded up.

bronco 028.jpg
729 hits | 51.75 KB | Posted: 3/27/06

bronco 030.jpg
754 hits | 54.5 KB | Posted: 3/27/06

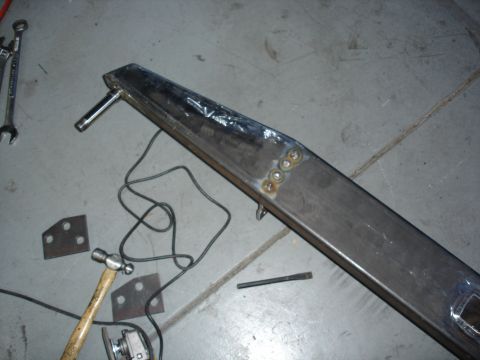

This picture shows the plug welds through the front of the bumper for the brackets

bronco 029.jpg
710 hits | 50.12 KB | Posted: 3/27/06

bronco 031.jpg
775 hits | 62.62 KB | Posted: 3/27/06

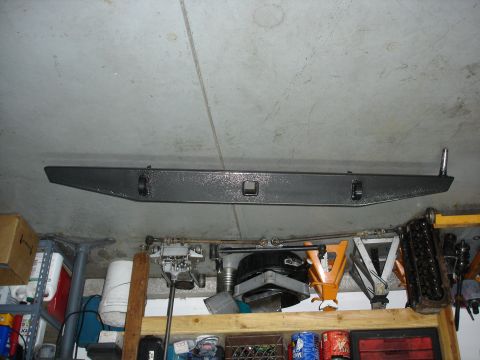

After paint. I used some hamered paint for a textured finish.

bronco 032.jpg
3099 hits | 47.99 KB | Posted: 3/27/06

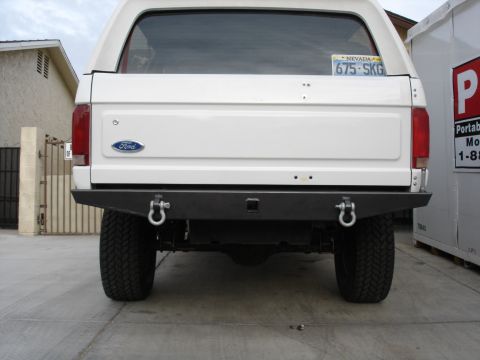

Bumper painted and installed

bronco 033.jpg
919 hits | 46.36 KB | Posted: 3/27/06

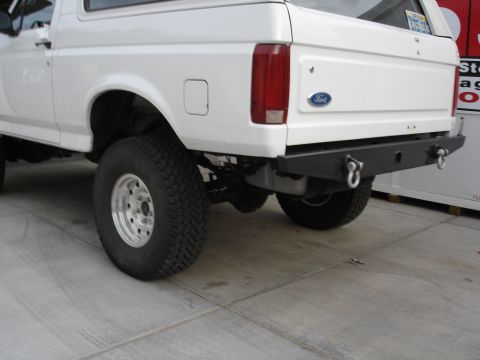

In this pic you can see the sheetmetal that was trimed off.

bronco 034.jpg
834 hits | 33.13 KB | Posted: 3/27/06

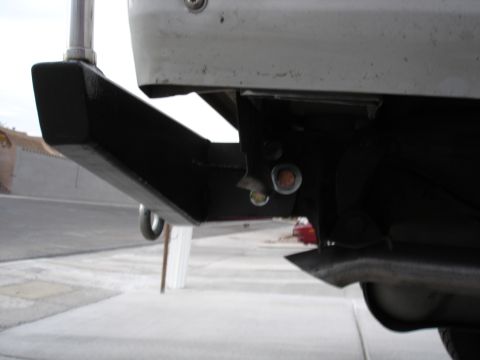

Close up of trimed sheet metal and brackets

bronco 049.jpg
3950 hits | 63.43 KB | Posted: 4/8/06

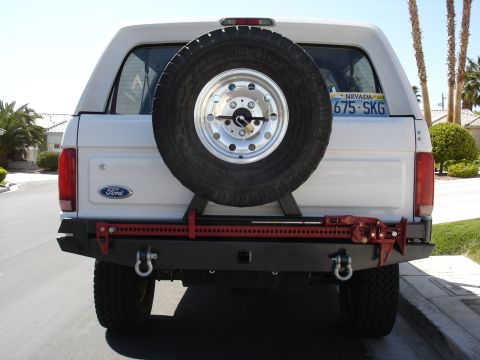

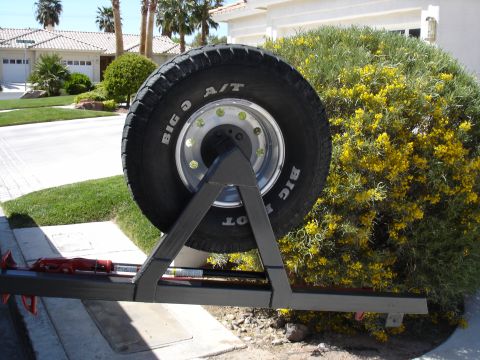

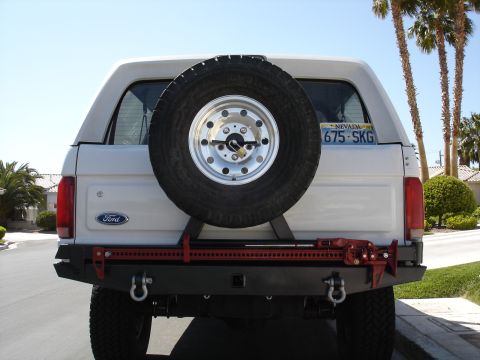

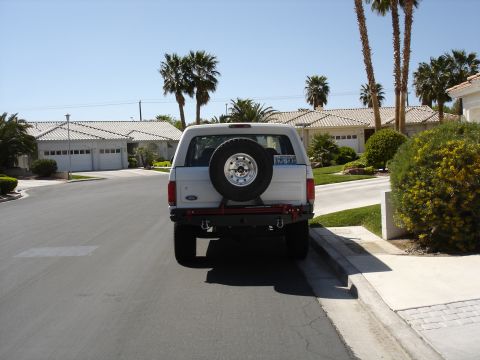

Rear tire carrier with tire and high lift jack mounted up. I still need to mount the jerry can on th...

bronco 056.jpg
928 hits | 63.71 KB | Posted: 4/8/06

bronco 050.jpg
779 hits | 66.25 KB | Posted: 4/8/06

bronco 057.jpg
784 hits | 76.15 KB | Posted: 4/8/06

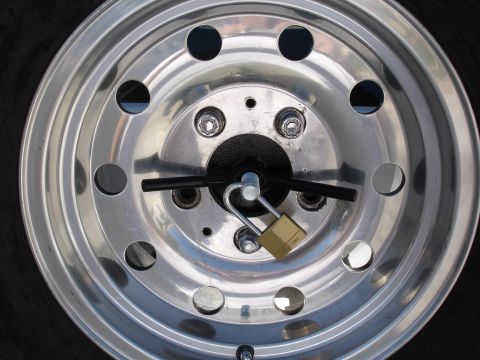

Close up of wheel locks and wing nut with pad lock for extra security.

bronco 048.jpg
866 hits | 75.1 KB | Posted: 4/8/06

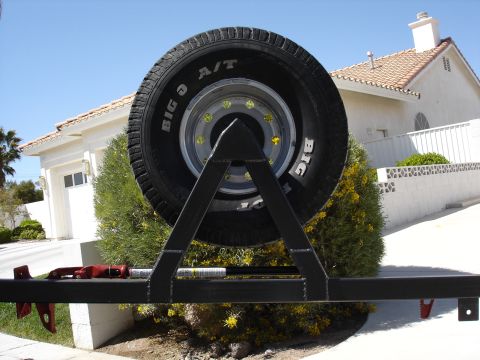

Backside of tire carrier. Gusseted with 3/16 sheet metal at critical areas.

bronco 046.jpg
805 hits | 98.77 KB | Posted: 4/8/06

bronco 047.jpg
772 hits | 41.6 KB | Posted: 4/8/06

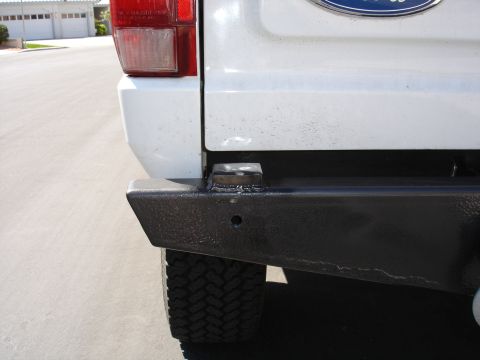

I added a 1/2" block for the tire carrier to rest on when it's closed.

bronco 059.jpg
795 hits | 47.64 KB | Posted: 4/8/06

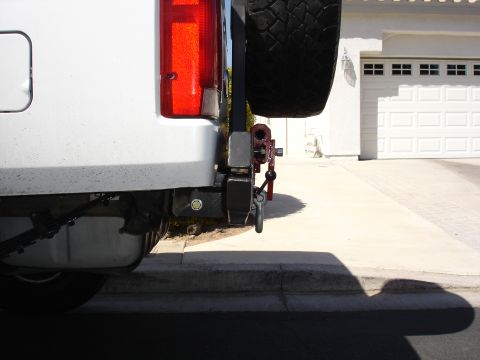

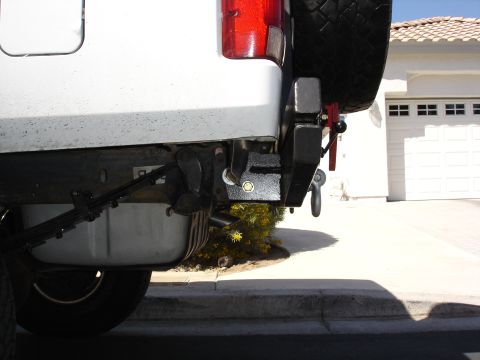

Driver side view.

bronco 060.jpg
758 hits | 51.31 KB | Posted: 4/8/06

bronco 061.jpg
765 hits | 55.09 KB | Posted: 4/8/06

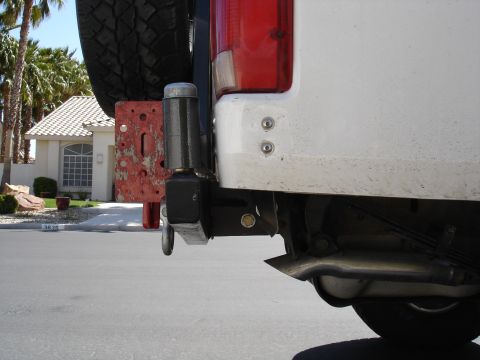

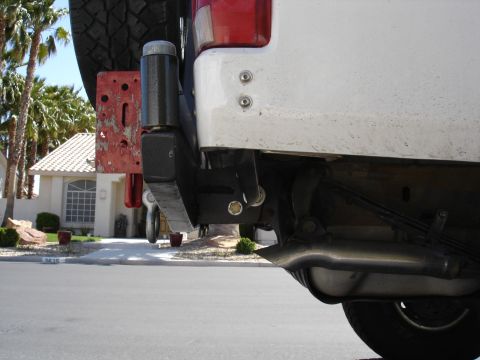

Passenger side view.

bronco 062.jpg
773 hits | 58.28 KB | Posted: 4/8/06

bronco 063.jpg
838 hits | 52.92 KB | Posted: 4/8/06

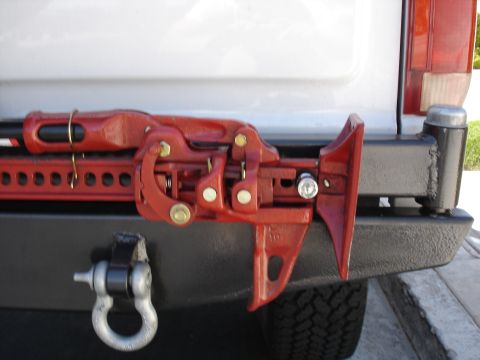

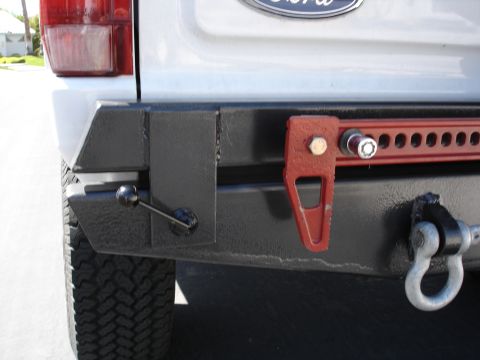

Close up of highlift jack. It's mounted on two 1/2" wheel studs with wheel locks for security.

bronco 064.jpg
873 hits | 49.55 KB | Posted: 4/8/06

rocky gap 5-28-06 019.jpg
1263 hits | 72.32 KB | Posted: 7/10/06

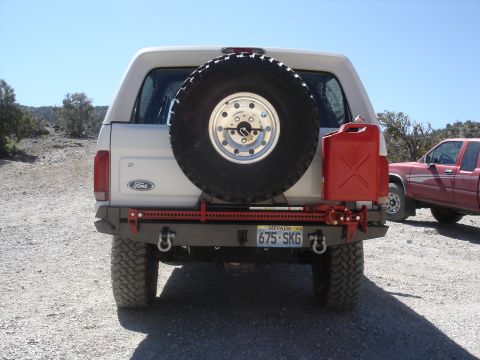

Jerry can mount added. Finished for now until I start on making the sides wrap around for extra prot...
