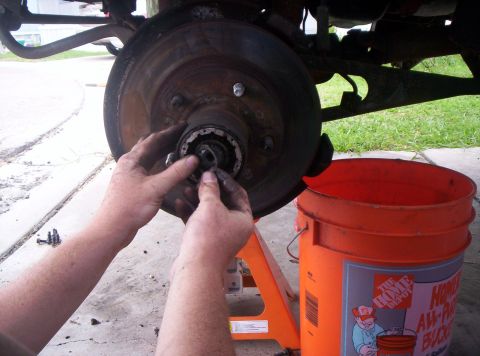

*** Snap Ring Pliers *** will save you allot of time, and pain on your fing...

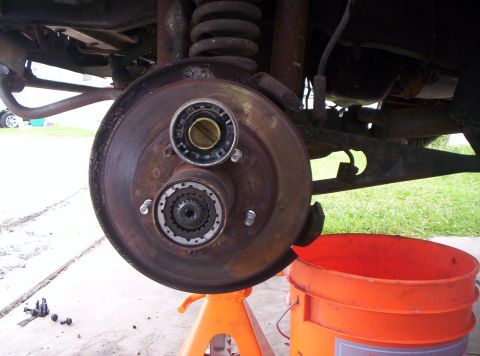

Image010.jpg 340 hits | 62.71 KB | Posted: 7/4/06 Here is what it should look like once you pull the manual locking hub cap off.

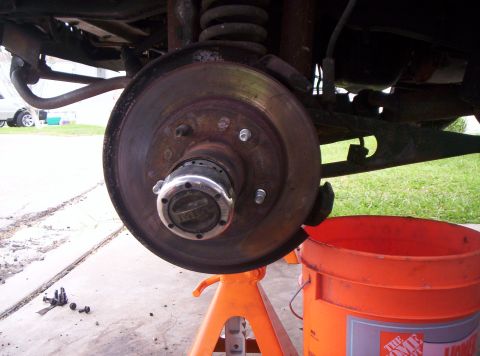

Image011.jpg 351 hits | 63.22 KB | Posted: 7/4/06 As you can see these are MM manual locking hubs.
Remove the 6 Allen Bolts to be able to remove t...

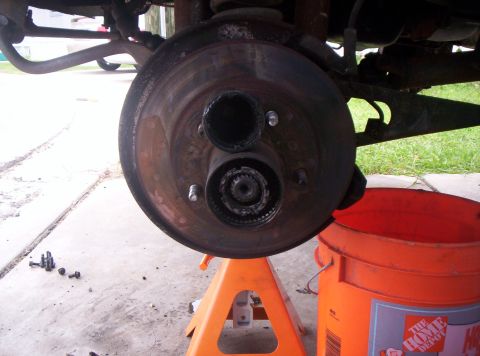

Image012.jpg 340 hits | 61 KB | Posted: 7/4/06 You will need the special lock ring tool which I have here on top of the Hub.

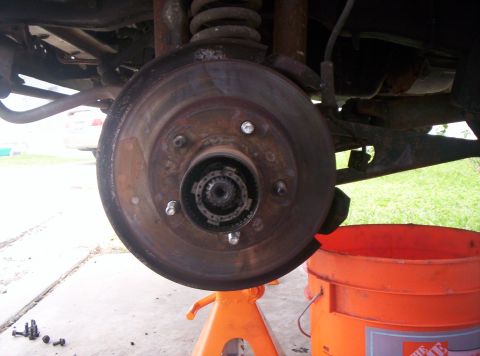

Image013.jpg 372 hits | 55.37 KB | Posted: 7/4/06 Inside here is the Lockring, it has a key on it and you must align the key to slide it in and out.

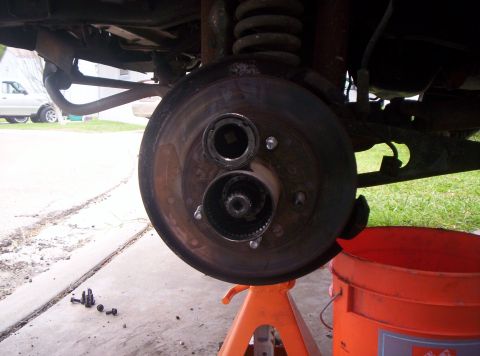

Image014.jpg 361 hits | 58.63 KB | Posted: 7/4/06 In this photo you can see how the adapter fits into the special nut.

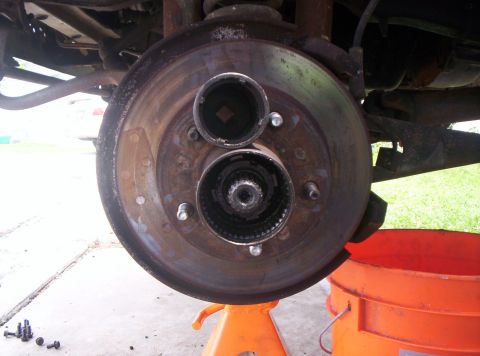

Image015.jpg 356 hits | 57.22 KB | Posted: 7/4/06 Now to remove the locking ring

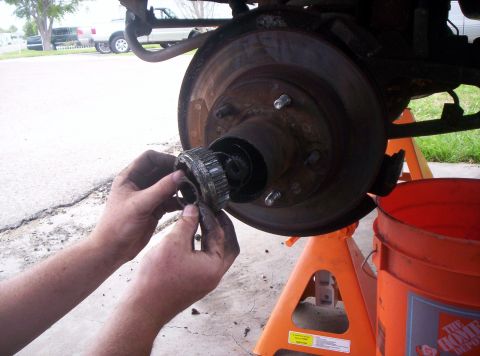

Image016.jpg 354 hits | 62.75 KB | Posted: 7/4/06 When you remove the locking ring, the mechanical housing for the manual locking hubs should come out...

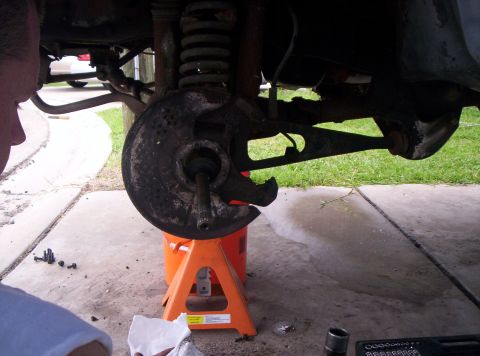

Image017.jpg 364 hits | 62.32 KB | Posted: 7/4/06 Once you remove the spindle, you can pull the shield right off, after lifing up the axle.

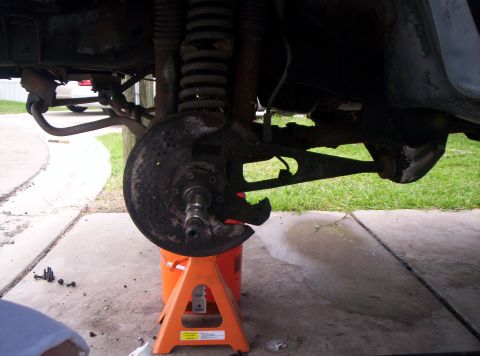

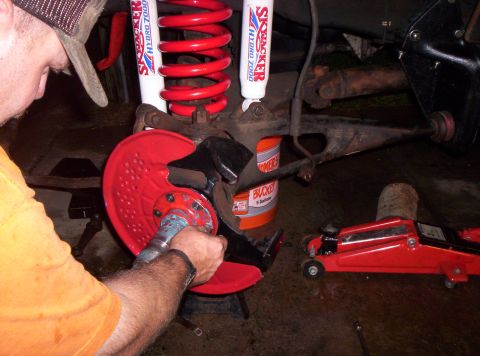

Image018.jpg 405 hits | 60.25 KB | Posted: 7/4/06 Now to remove the spindle.
It should be held on by 6 nuts.

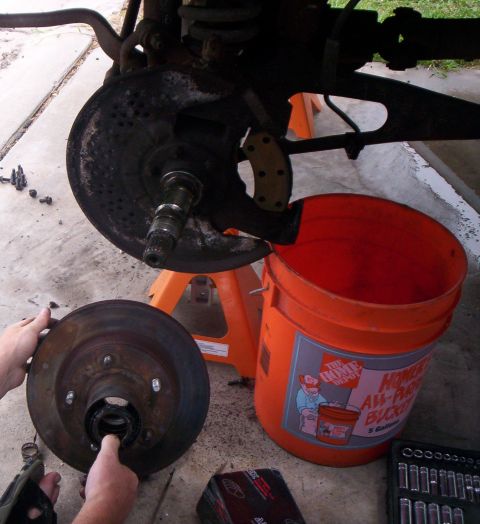

Image019.jpg 383 hits | 70.41 KB | Posted: 7/4/06 Once you remove the Rotor, you will be ready to take off the 6 nuts for the Spindle.

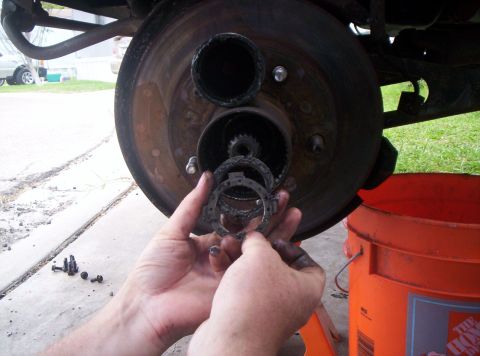

Image020.jpg 341 hits | 59.55 KB | Posted: 7/4/06 Here you can see the lock ring which goes in-between the 2 special nuts.

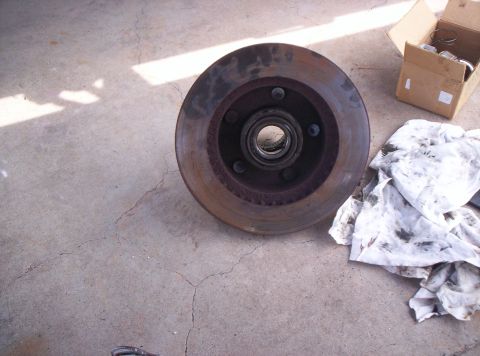

rotor.jpg 361 hits | 60.93 KB | Posted: 7/4/06 Backside of the Old Rotor

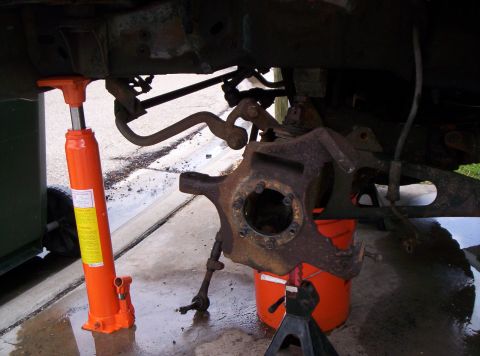

Image021.jpg 350 hits | 63.02 KB | Posted: 7/5/06 We were fighting rain for 4 straight days. All we had was an 8' x 8' pop up shelter to help try and ...

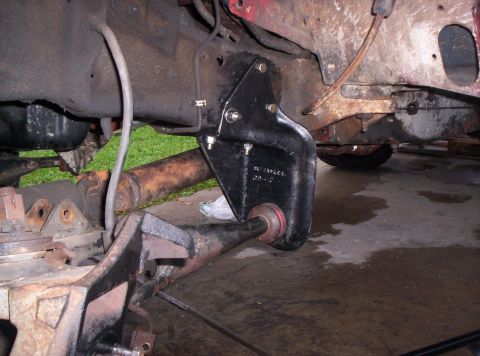

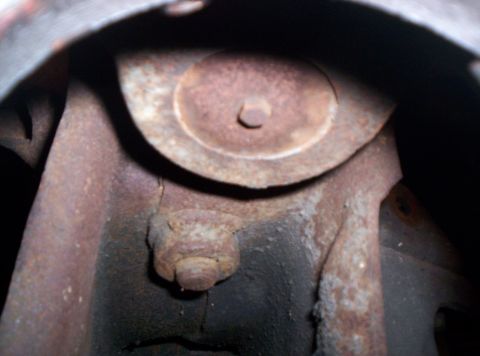

Image018.jpg 464 hits | 73.5 KB | Posted: 7/5/06 This is the new Radius Arm Bracket that was installed from Skyjacker.

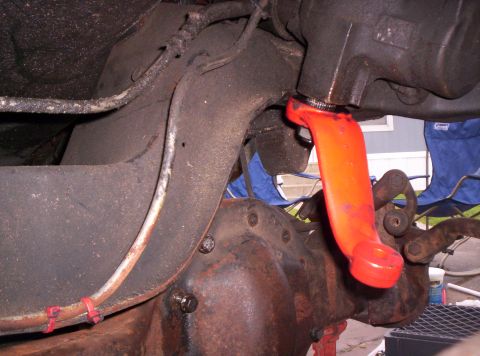

Image019.jpg 627 hits | 72.07 KB | Posted: 7/5/06 The New Pitman Arm
We brock 2 arms of a Pitman Arm Puller that we bought from Harbor Freight.
...

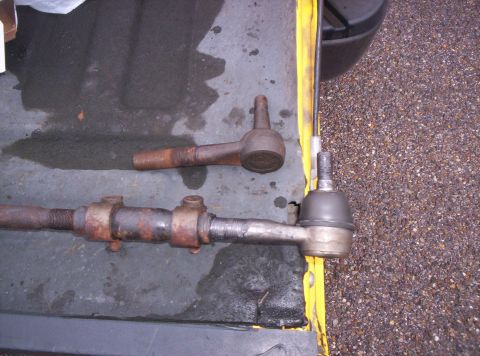

Image020.jpg 349 hits | 82.07 KB | Posted: 7/5/06 I went ahead and replaced both ends of my Tire Rods with new ends.
They were about $20 each.

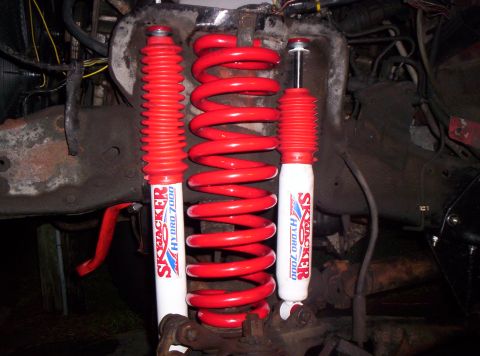

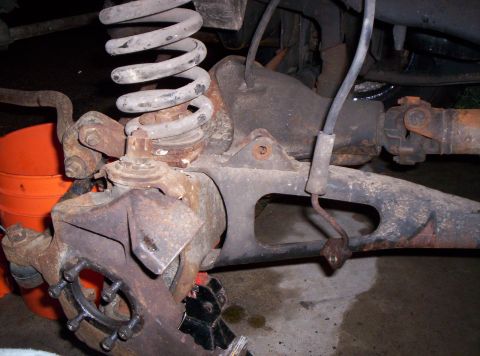

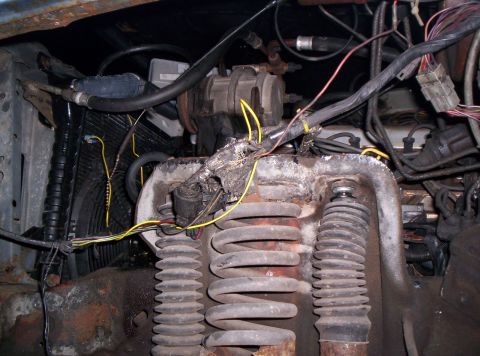

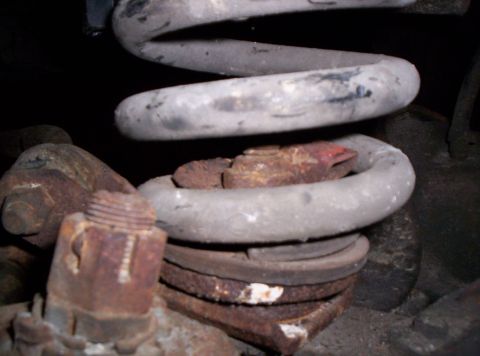

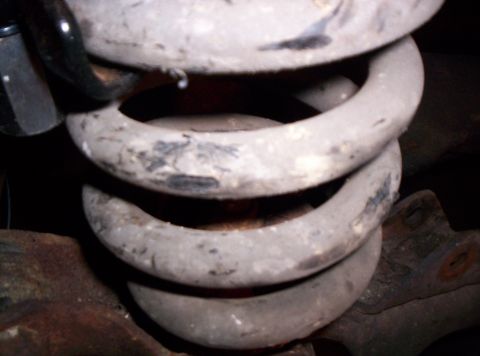

Image021.jpg 732 hits | 69.37 KB | Posted: 7/5/06 Here are both of the Hydro 7000 shocks installed and the Coil Spring.
Notice how the boot on the...

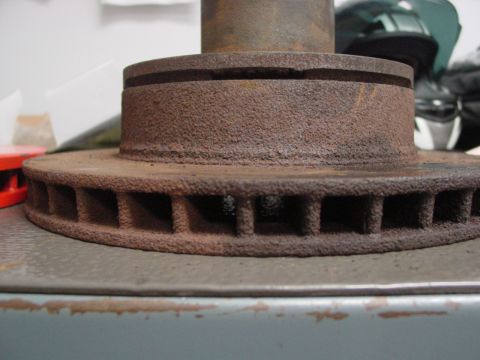

old rotor & hub.jpg 440 hits | 46.8 KB | Posted: 7/10/06 Old Rotor w/terrible rust

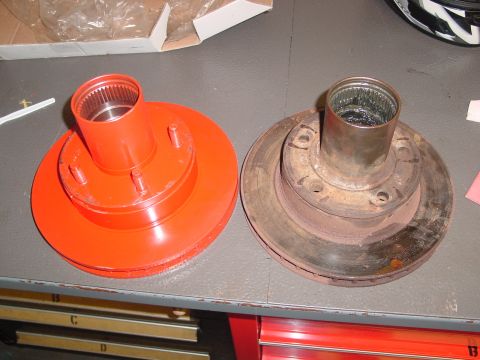

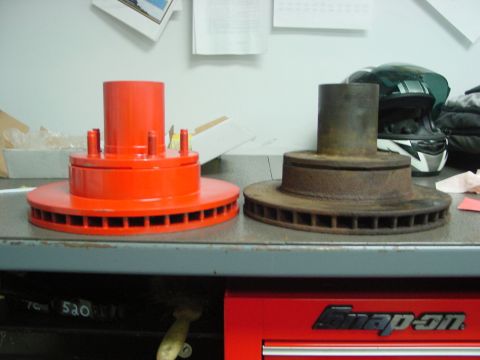

overhead rotor & hub.jpg 581 hits | 55.38 KB | Posted: 7/10/06 New Rotor & Hub Vs. Old Rotor & Hub.

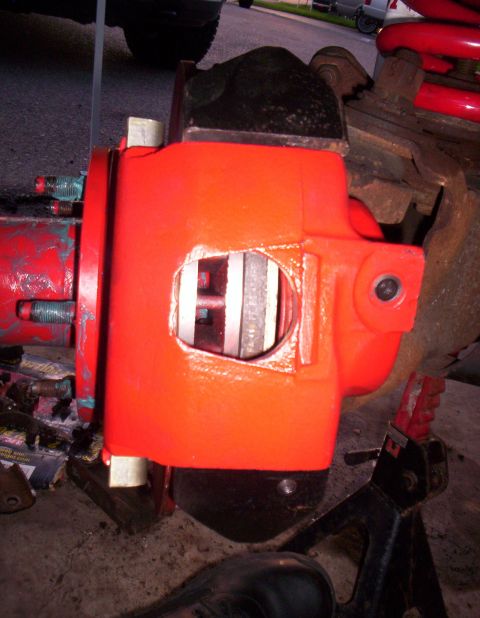

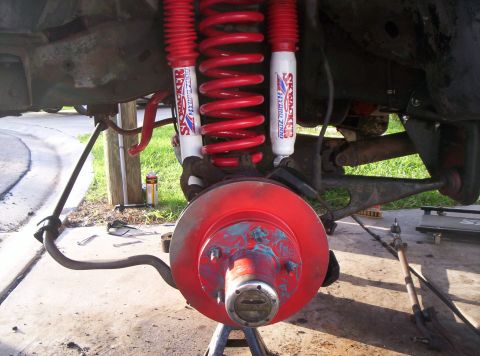

New Rotor & Hubs painted w/Ford Red from Oreilly's.

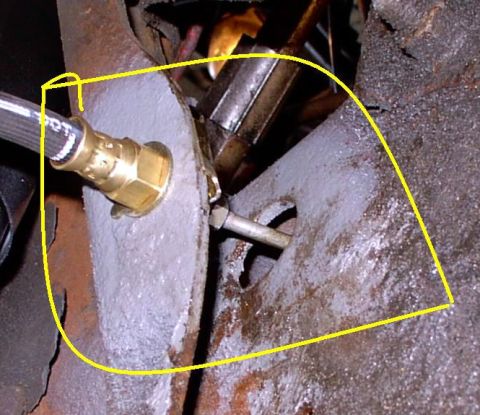

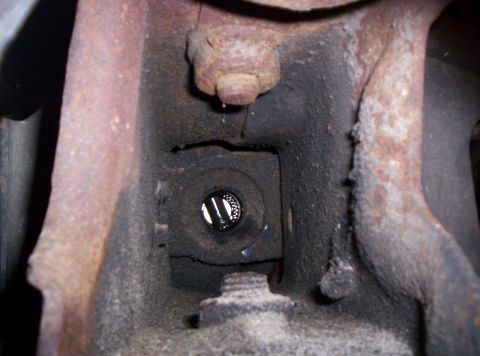

Front Left Area
