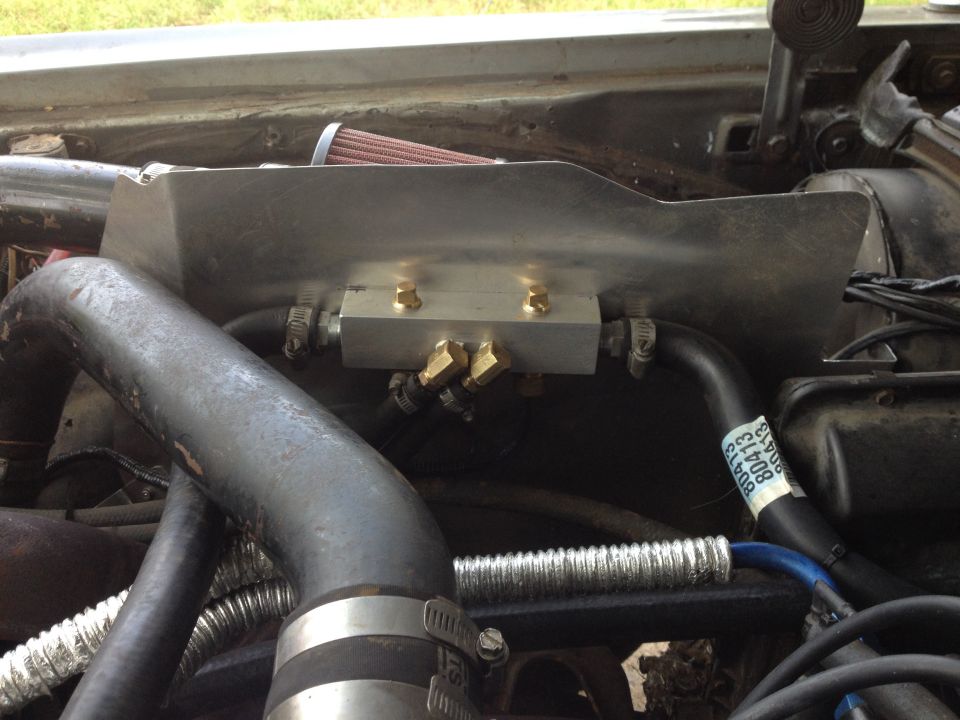

image.jpg Another shot of the manifold. You can see the hose routing better here. The fan sensors are on the bottom. I spray painted the wires: blue for low temp; red for high temp.
image.jpg | Hits: 151 | Posted on: 4/13/14 | View original size (2.04 MB)

Another shot of the manifold. You can see the hose routing better here. The fan sensors are on the bottom. I spray painted the wires: blue for low temp; red for high temp.
