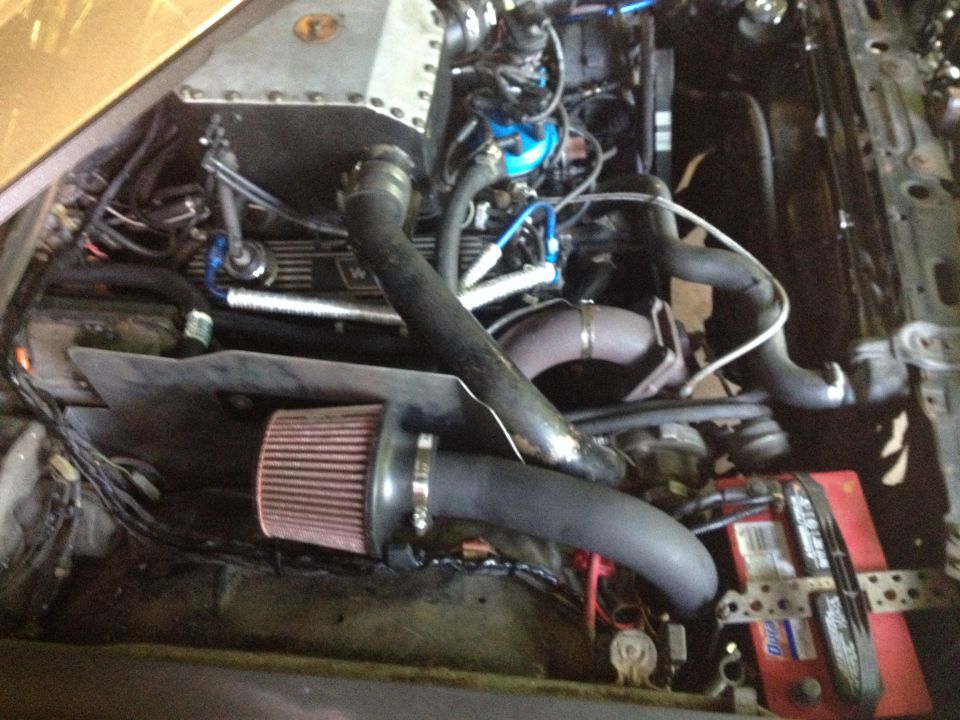

img_1477.jpg Passenger side pretty much done. Heat shield protects the air intake. More heat shield on the fuel lines. Crappy battery hold down was the first thing I made for the car. The radiator fan switches and water returns from the turbos are on the other side of the big heat shield.
img_1477.jpg | Hits: 184 | Posted on: 5/6/14 | View original size (2.76 MB)

Passenger side pretty much done. Heat shield protects the air intake. More heat shield on the fuel lines. Crappy battery hold down was the first thing I made for the car. The radiator fan switches and water returns from the turbos are on the other side of the big heat shield.
