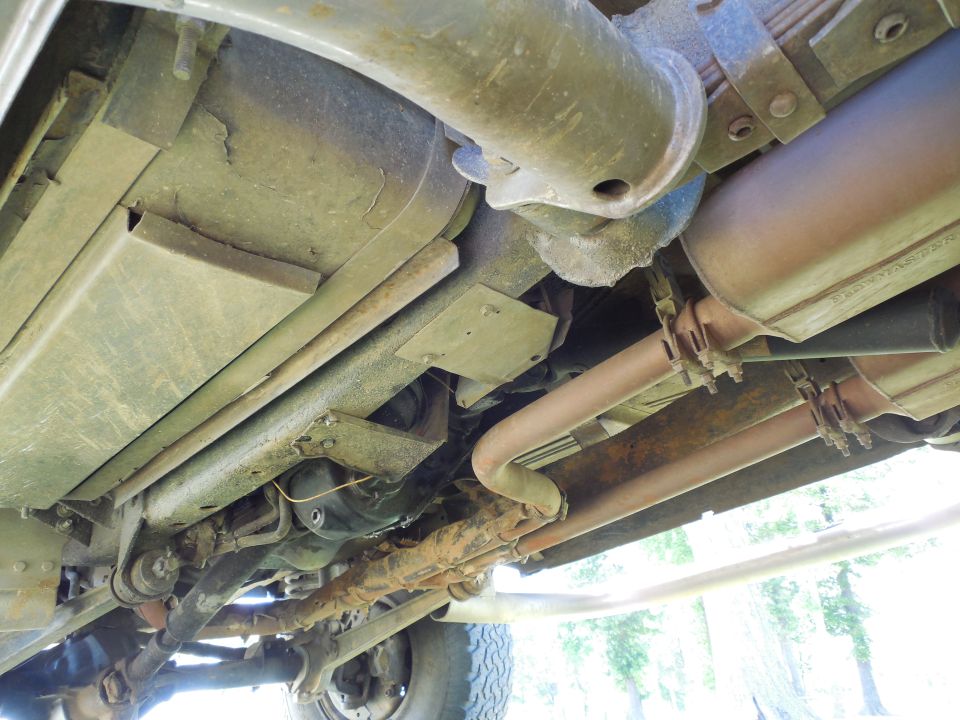

LHR wheelwell looking forward under the frame. The drain holes I added to the nerf steps before powdercoating appear to have been effective.

The 2 plates bolted to the frame are heat shields for the fuel switching valve & reservoir.
