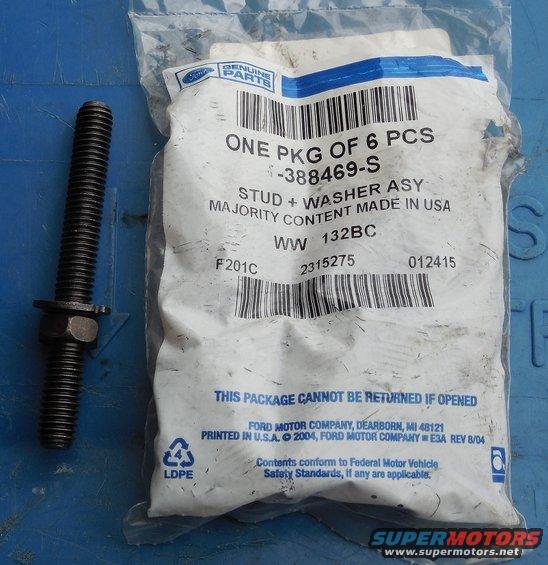

exhmanbolt.jpg One of the exhaust manifold bolts broke, and rather than try to get another at the JY, I bought a new pack of 388469S (long bolt, long stud). The long bolt w/short stud is 386197S; long bolt without stud is 381732S.
Short w/stud is 389201-S; short w/o is 392016-S4301.

Aftermarket replacement sets are also available for 5.0L/5.8L: Left [url=https://www.amazon.com/dp/B00068PTH0]Dorman 03405[/url]; Right [url=https://www.amazon.com/dp/B0094ECO20]Dorman 03407B[/url] or [url=https://www.amazon.com/dp/B00068OITK]Dorman 03407[/url]

[url=http://www.supermotors.net/registry/media/1056534][img]http://www.supermotors.net/getfile/1056534/thumbnail/exmanbolts.jpg[/img][/url]

These should have Nickel (high-temp) anti-seize applied during assembly.

[url=https://www.supermotors.net/registry/media/1083968][img]https://www.supermotors.net/getfile/1083968/thumbnail/antiseizes.jpg[/img][/url]

Y-pipe flange stud & nut

[url=https://www.supermotors.net/registry/media/1168560][img]https://www.supermotors.net/getfile/1168560/thumbnail/exmanflghdwr.jpg[/img][/url]

Spark plug heat shield  F2UZ12A406A/[url=https://www.amazon.com/dp/B000O01HP8]F4TZ12A406BA[/url]
exhmanbolt.jpg | Hits: 1490 | Posted on: 4/17/15 | View original size (300.75 KB)

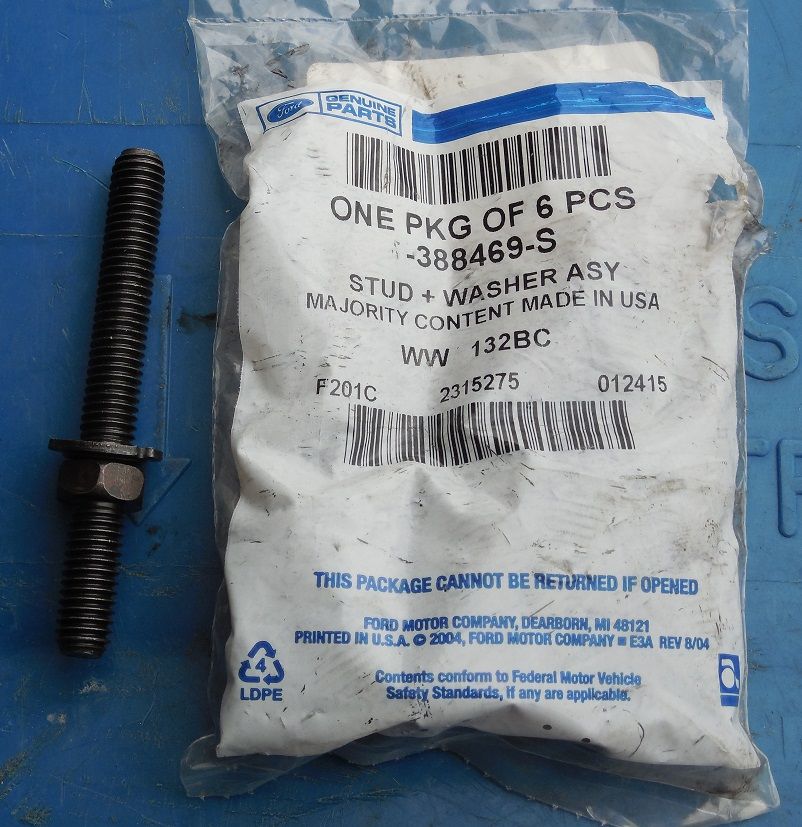

One of the exhaust manifold bolts broke, and rather than try to get another at the JY, I bought a new pack of 388469S (long bolt, long stud). The long bolt w/short stud is 386197S; long bolt without stud is 381732S.
Short w/stud is 389201-S; short w/o is 392016-S4301.

Aftermarket replacement sets are also available for 5.0L/5.8L: Left Dorman 03405; Right Dorman 03407B or Dorman 03407



These should have Nickel (high-temp) anti-seize applied during assembly.



Y-pipe flange stud & nut



Spark plug heat shield F2UZ12A406A/F4TZ12A406BA
