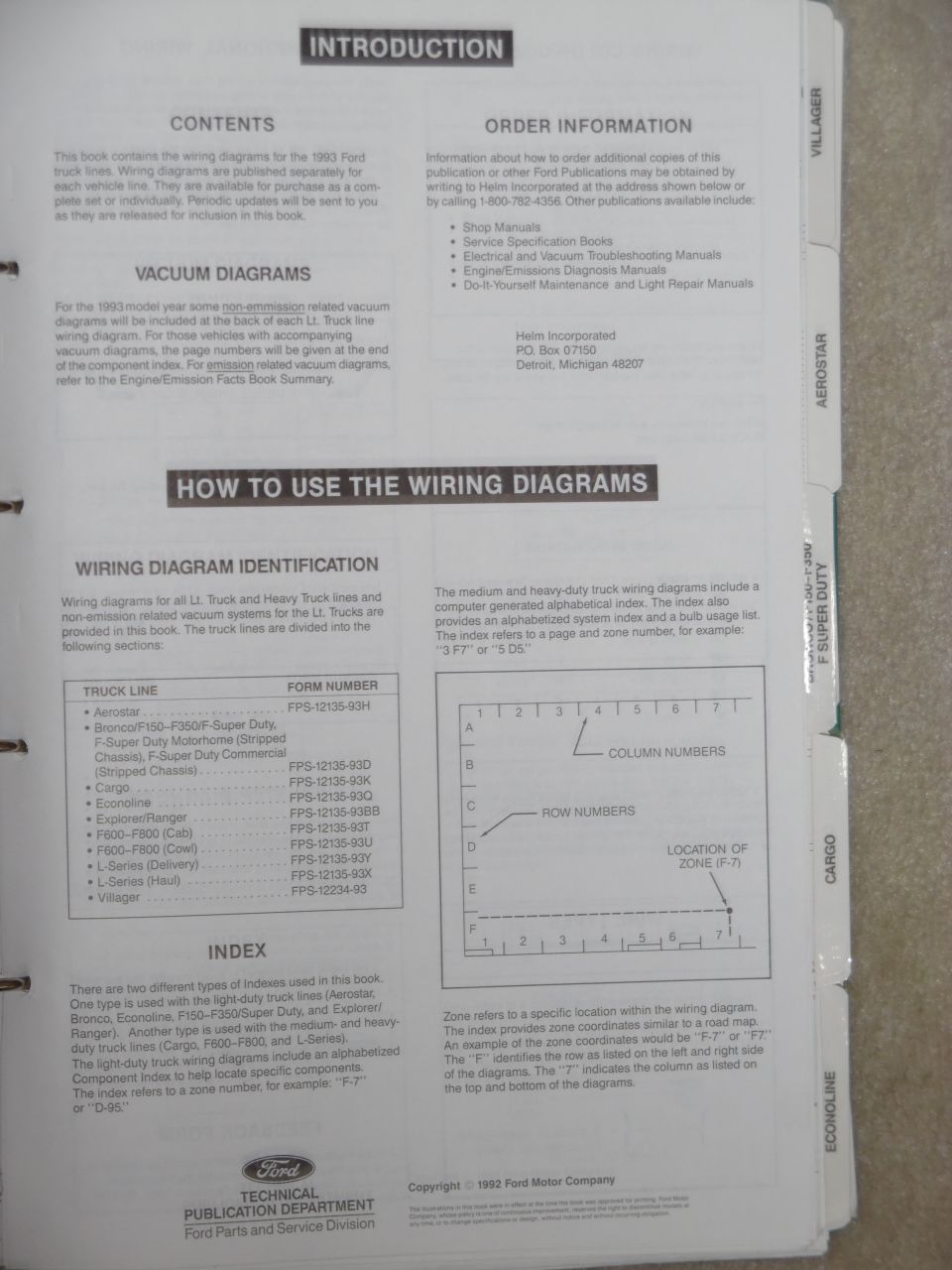

Introduction 1 to 1993 Bronco/F150-F350/F Super Duty Wiring Diagrams
IF THE IMAGE IS TOO SMALL, click it.

See also:
MotorCraft 2016 Wiring Pigtail Guide

Bronco Wiring Pigtail List
Component (Pins & Gender) Pigtail Application
A/C Compressor Clutch (2M) WPT-173 93-96
Lock Motor (2M) WPT-312 92-96
Cruise Servo (10M) WPT-762 93-96
Voltage Regulator (3M) WPT-119 87-96
RFI Capacitor (2M) WPT-478 87-96
Ignition Coil (3M) WPT-397 87-96
Trailer Brake Controller (6F) WPT-599 94-96
Trailer Brake Controller (4F) WPT-456 93
Fuel Injector (2M) WPT-372 85-95
Fuel Pump (4M) WPT-386 94-96
Fuel Pump (4M) WPT-454 87-93
Horn (1M) WPT-378 87-96
Instrument Cluster (14M) WPT-383 83-96
Courtesy Lamp (Door) (2F) WPT-212 92-96
Headlamp (3M) WPT-110 87-96
HVAC Panel Lamp (2M) WPT-597 92-96
License Lamp (2F) WPT-149 80-96
Park/Turn Lamp (3F) WPT-442 92-96
Reverse Lamp (2F) WPT-291 92-96
Hood Lamp (2M) WPT-370 87-96
RV Mirror (3M) WPT-584 94-96
Door Mirror (8M) WPT-382 96
Visor (1M) WPT-562 94-96
DRL Module (8M) WPT-298
Ignition Control Module (6M) WPT-297 86-96
PSOM (12M) WPT-613 92-96
RKE Module (13M) WPT-612, WPT-625 94-96
RKE Module (16M) WPT-632 94-96
ESOF Module (5M) WPT-300 90-96
ESOF Module (8M) WPT-313 90-96
Chime Module (7M) WPT-512 90-96
Blower Motor (2M) WPT-104 92-96
IAC (2M) WPT-684 87-96
Window Motor (2F) WPT-484 80-96
ESOF Motor (8F) WPT-174 96 ???
ESOF Motor (10M) WPT-661 90-96
Wiper Motor (3M) WPT-333 87-93
Wiper Motor (6M) WPT-297 94-96
Radio (8M gray) WPT-646 87-96
Radio (8M black) WPT-69687-96
Amplifier (14M) WPT-296 94-96
Starter Relay (1M) WPT-616 80-96
ACT Sensor (2M) WPT-428 87-95
Ambient Sender (2F) WPT-497 94-96
HEGO 21 (4M) WPT-112 96
HEGO 11/12 (4M) WPT-123 87-96
ECT Sensor (2M) WPT-437 87-96
DPFE Sensor (3M) WPT-458 95
EVP Sensor (4M) WPT-386 87-95
Knock Sensor (2M) WPT-462 87-95
MAP Sensor (3M) WPT-263 87-95
MAF Sensor (4F) WPT-256 94-95
MAF Sensor (6M) WPT-102 96
TPS (3M flat) WPT-445 87-96
TPS (3F round) WPT-651 87-96
MLPS (8M) WPT-389 95-96
Brake Shift Solenoid (3M) WPT-210 94-96
CANV Solenoid (2M) WPT-441 87-95
EVR Solenoid (2M) WPT-374 87-96
Speaker (2M) WPT-416 87-96
4WD Range Switch (2M) WPT-209 87-96
Refrigerant Pressure Switch (4M) WPT-169 96
SCCDS (2M) WPT-260 93-96
CPP Switch (6M) WPT-507 87-96
Coolant Sender (1M) WPT-476 66-96
Courtesy Switch (3F) WPT-213 80-96
Headlamp Switch (9F) WPT-165 92-96
Defrost Switch (5M) WPT-377 92-96
Blower switch (4M) WPT-103 92-96
Compressor Control Switch (4M) WPT-344 92-96
Ignition Switch (16M) WPT-577 92-96
MFS (7F) WPT-179 92-96
MFS (9M) WPT-611 92-96
Oil Sender (1M) WPT-616 66-96
E-brake Switch (1M) WPT-488 92-96
Door Mirror Switch (8M) WPT-313 92-96
T/G Window Switch (5M) WPT-653 87-96
PSP Switch (2M) WPT-372 87-95
Driver Switch Panel (15M) WPT-656 92-96
BOO Switch (2M) WPT-197 66-96
DLC EEC-IV (6M) WPT-743 87-95
DLC OBD-II (16F) WPT-615 96
Towing Connector (4F) WPT-358 66-96
Towing Connector (7M) WPT-421 80-96
Valve Body (12M) WPT-571 89-96
TAD Solenoid (2M) WPT-146 87-95
VMV (2M) WPT-545 96
