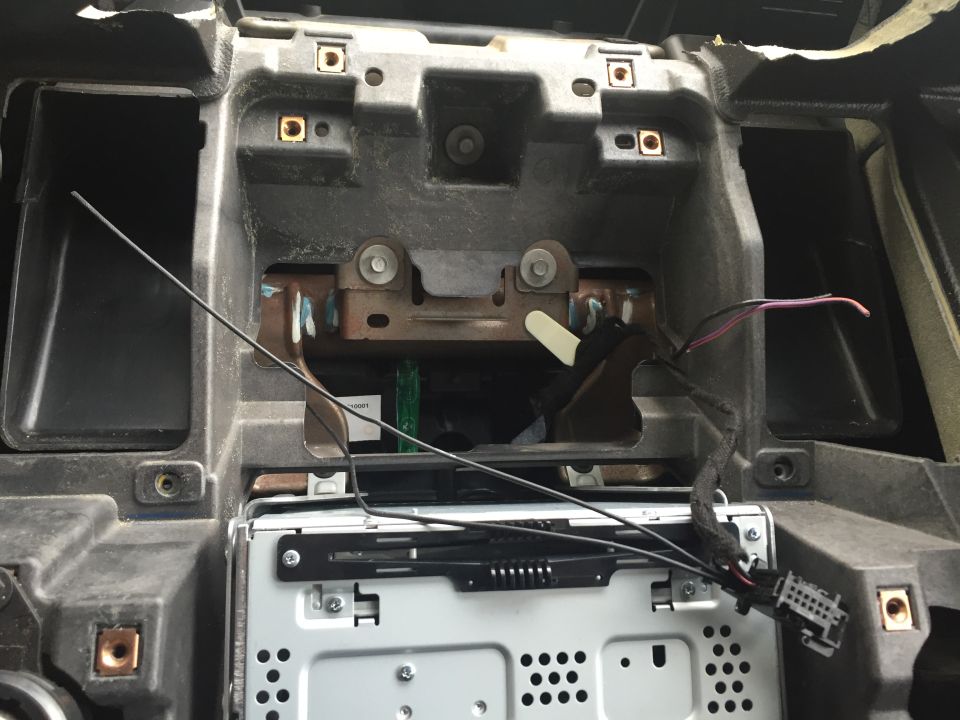

img_2679.jpg Wires are injected into pins 6 and 12 on the harness, clearly labeled on the black connector - 6 is right above 12.
img_2679.jpg | Hits: 563 | Posted on: 8/30/16 | View original size (1.97 MB)

Wires are injected into pins 6 and 12 on the harness, clearly labeled on the black connector - 6 is right above 12.
