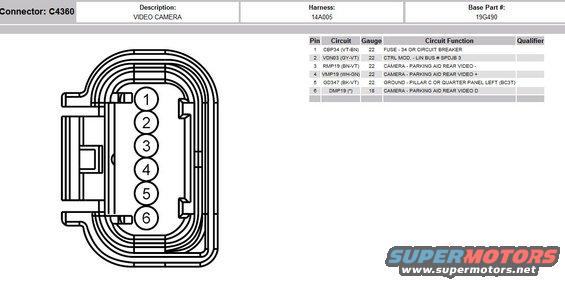

capture.jpg rear camera connector view. tap in left brake light for power and ground, the other two pins are from the injected pins from the screen. Wiring harness: BL3Z14A411A, cut the other end.
capture.jpg | Hits: 601 | Posted on: 10/30/16 | View original size (88.45 KB)

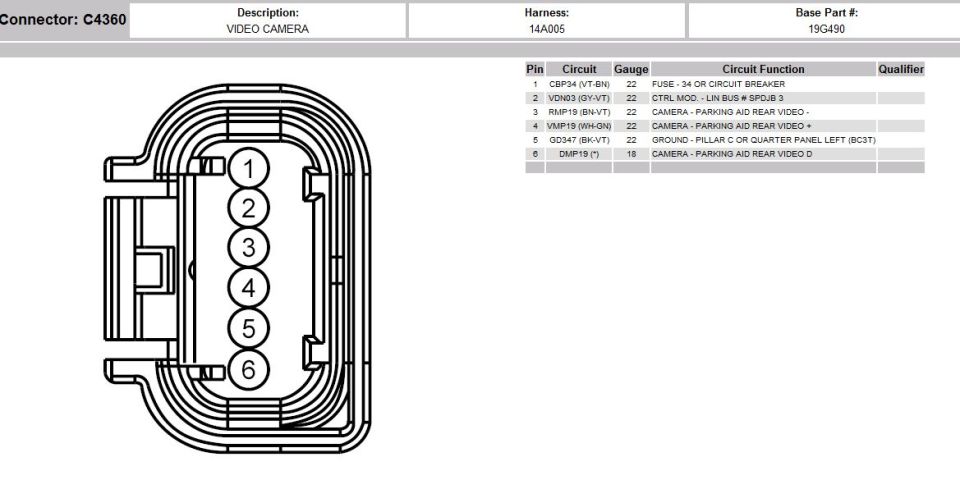

rear camera connector view. tap in left brake light for power and ground, the other two pins are from the injected pins from the screen.

Wiring harness: BL3Z14A411A, cut the other end.
