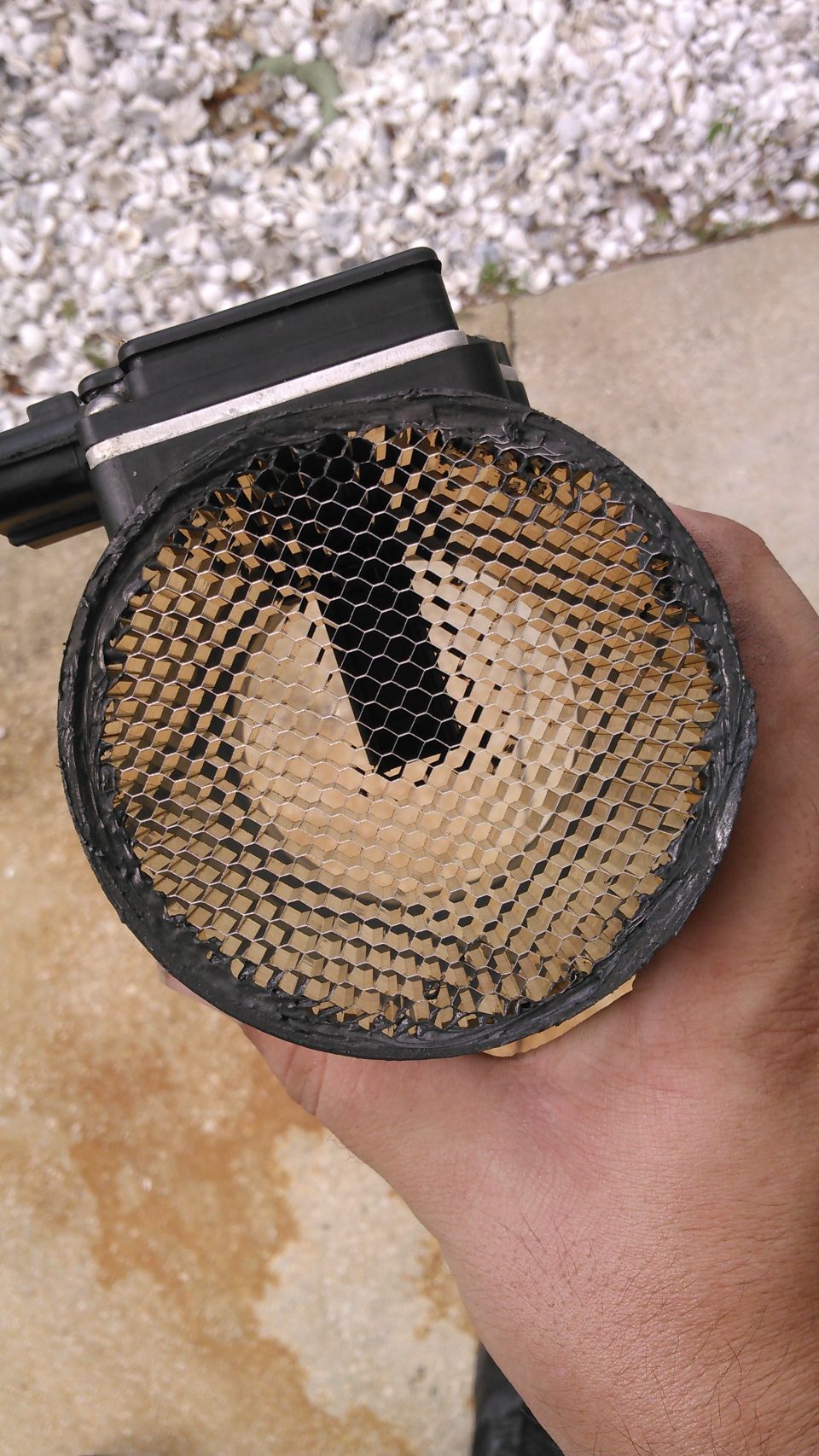

kimg0115.jpg the 86mm was abit big for my inlet but the 75mm was too small so im glad i ordered the bigger size. i rolled the screen on a hard surface to crush some of the outside cells in order to make it fit. then i used some sensor-safe RTV to glue it in.

to glue it, i installed the screen deeper than it would be, then used a bead of RTV on the very outside of the housing. from the backside of the housing i pushed the screen into the bead and flush with the outside of the housing. i used a nail to clean RTV from any cells with RTV in them
kimg0115.jpg | Hits: 101 | Posted on: 10/14/17 | View original size (2.2 MB)

the 86mm was abit big for my inlet but the 75mm was too small so im glad i ordered the bigger size. i rolled the screen on a hard surface to crush some of the outside cells in order to make it fit. then i used some sensor-safe RTV to glue it in.

to glue it, i installed the screen deeper than it would be, then used a bead of RTV on the very outside of the housing. from the backside of the housing i pushed the screen into the bead and flush with the outside of the housing. i used a nail to clean RTV from any cells with RTV in them
