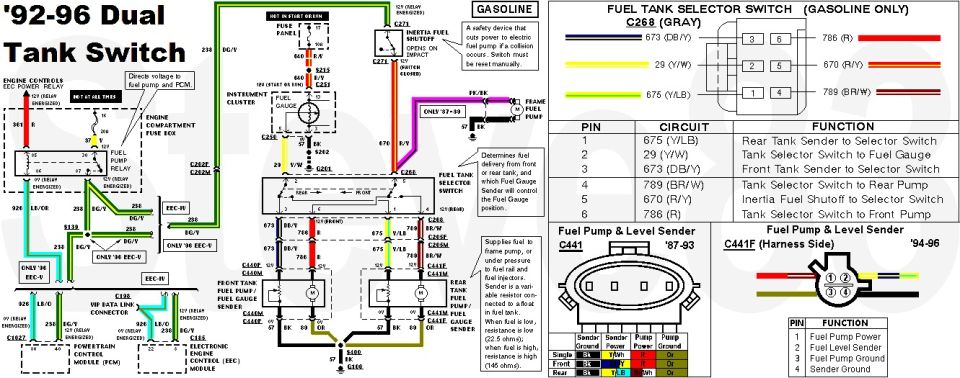

'92-96 (&'97 >8500GVWR) Gasoline F-series Dual Tank Switch
IF THE IMAGE IS TOO SMALL, click it.
'92-96 (& '97 >8500GVWR) Switch (Gas & Diesel)
Wells SW6445 (F2TB-9A050-AB)
For Broncos:
G100 is on the back of the core support directly above the body mount.
'90-91 EFI similar
'87-89 ONLY has the high-pressure pump between the IFS & tank select switch (mounted inside the frame rail under the driver's seat); its tank pumps are low-pressure, plumbed to the DFR near the frame pump
'87-91 Switch
E7TZ-9A050-ASee also:
.
.
.
.
.
.
.
