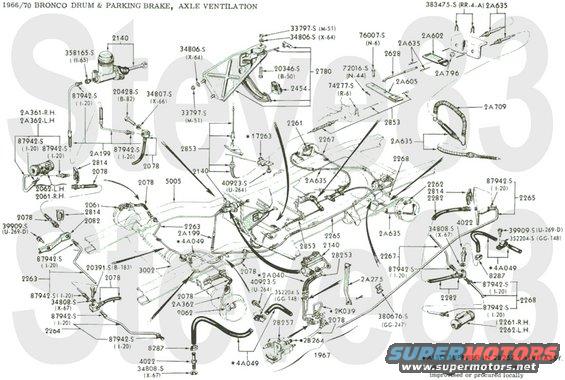

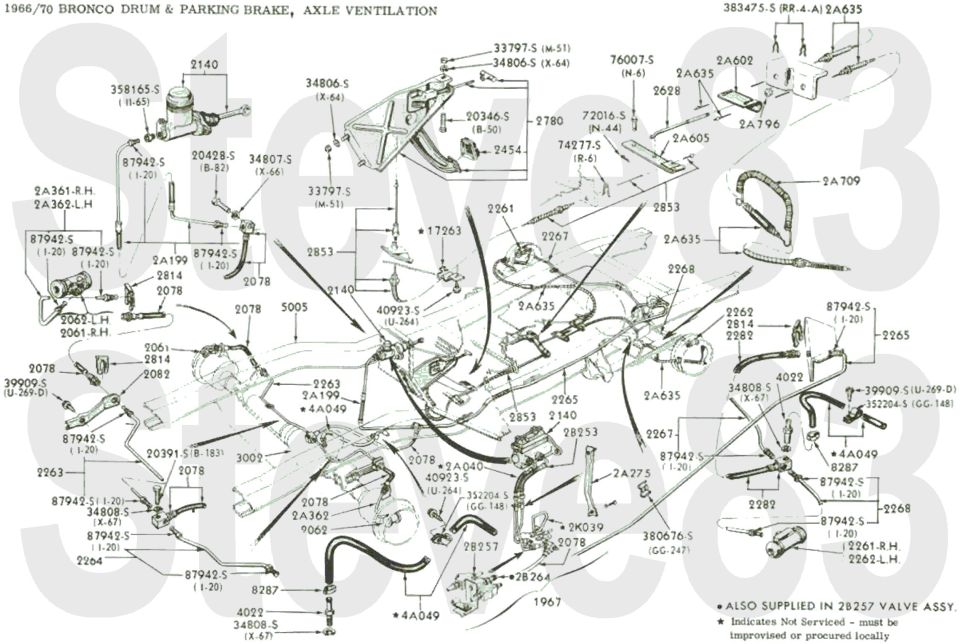

'66-70 Brakes
IF THE IMAGE IS TOO SMALL, click it.

Drum Backing Plates
Bendix 319130L or 317363L= 11" '66-'75, driver side
Bendix 319130R or 317364R= 11" '66-'75, pass side
Wagner FF55264= 10" '66-'75 small bearing, driver side
Wagner FF55265= 10" '66-'75 small bearing, pass side
Bendix 80174L= 10" big bearing, '74-'75 driver side
Bendix 80175R= 10" big bearing, '74-'75 pass side
Bendix 3203097L= 11" '76-'77 driver side
Bendix 3203098R= 11" '76-'77 pass side

. . . . . . .
