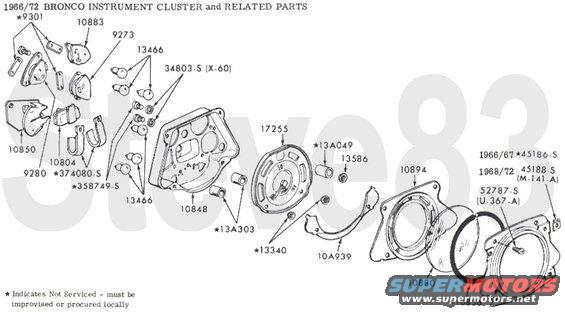

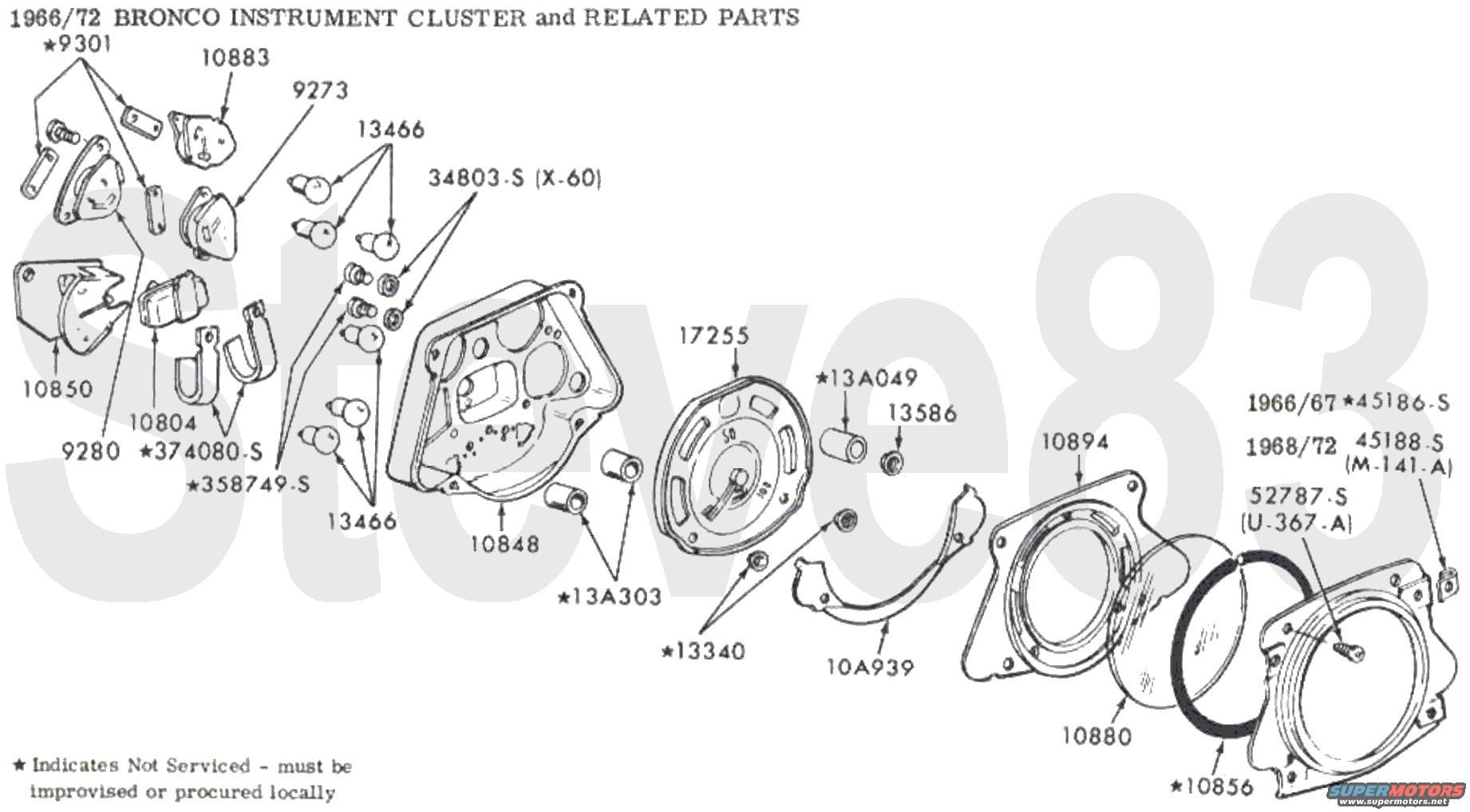

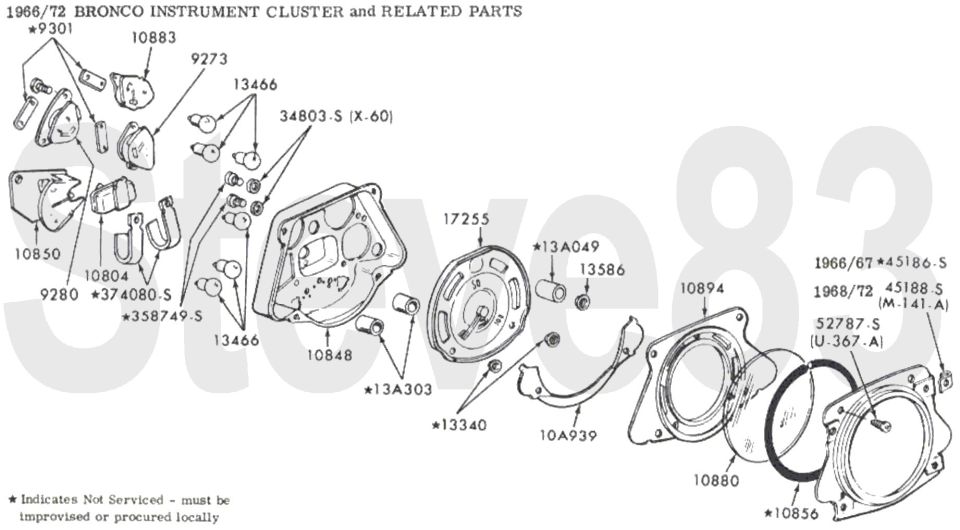

'66-77 Instrument Cluster
IF THE IMAGE IS TOO SMALL, click it.
See also:
.
.
.
.
.
.
.
1 - U-Nut (for mounting)
2 - Front Cover
3 - Foam Gasket
4 - Lens
5 - Blackout Ring
6 - Reflector
7 - Lens, Hi-Beam (blue)
8 - Lens, Turn (green)
9 - Speedometer Assembly
10 - Cardboard Tube
11 - Bulb, Hi-Beam #1895
12 - Bulb, Turn #1895
13 - Gauge, Ammeter
14 - Gauge, Oil Pressure
15 - Gauge, Coolant Temperature
16 - Gauge, Fuel
17 - Insulator (cardboard)
18 - Cluster Housing
19 - Screw
20 - Screw & Washer
21 - Wiring Harness Retainer
22 - Instrument Cluster Voltage Regulator
23 - Bulb, Illumination #1895
24 - Screw (for assembly)
