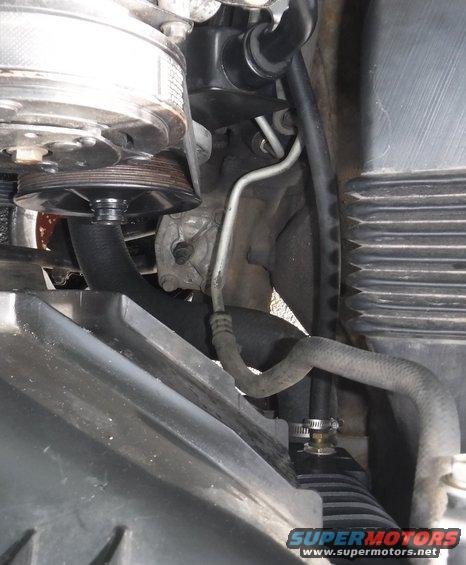

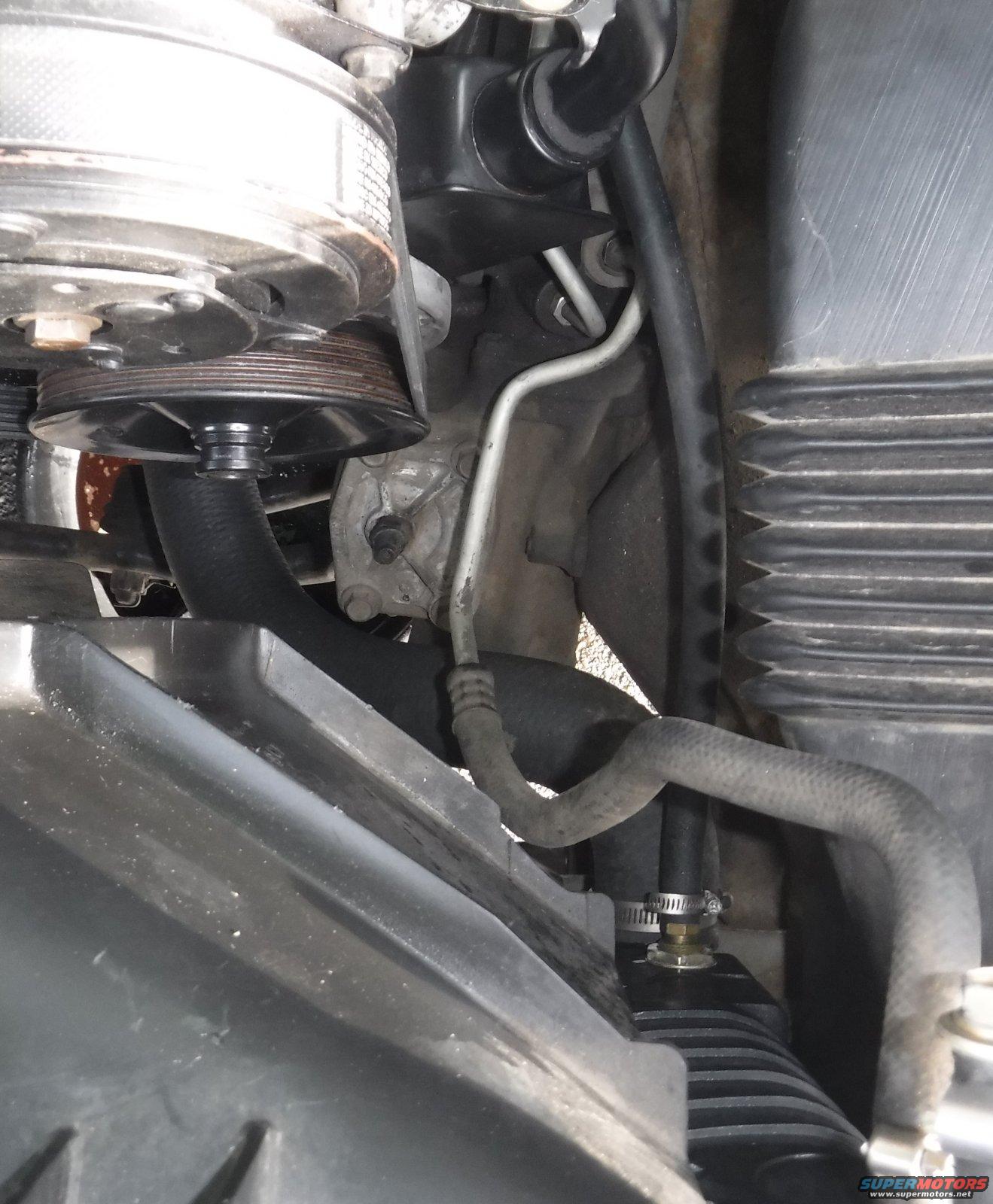

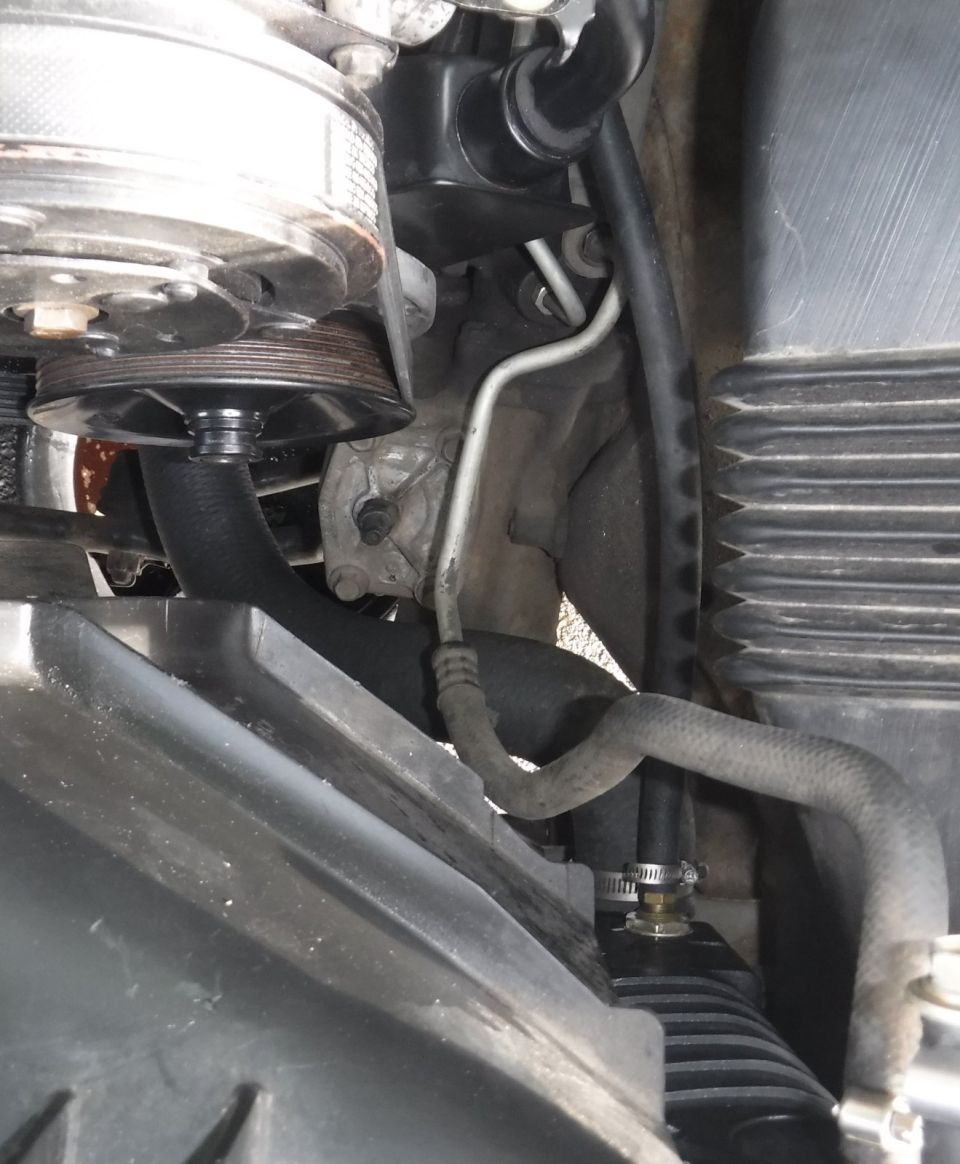

dscf1482--tight-ps-return-routing-(radiator-cooler)-with-offset-saginaw.jpg With the offset Saginaw reservoir, the return hose from the radiator's tranny cooler (I used it for the PS cooler, since I added an external transmission cooler) is a bit tougher to access (hasn't been cut shorter and hooked up to the pump in the picture). The lines to the steering box are also tougher to get to.
dscf1482--tight-ps-return-routing-(radiator-cooler)-with-offset-saginaw.jpg | Hits: 72 | Posted on: 9/17/19 | View original size (270.25 KB)

With the offset Saginaw reservoir, the return hose from the radiator's tranny cooler (I used it for the PS cooler, since I added an external transmission cooler) is a bit tougher to access (hasn't been cut shorter and hooked up to the pump in the picture). The lines to the steering box are also tougher to get to.
