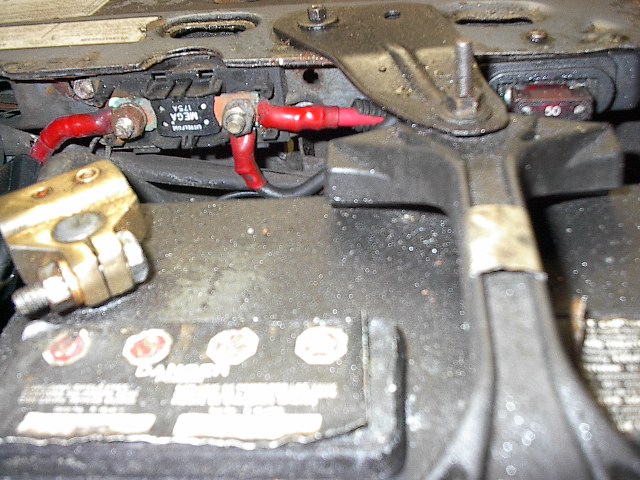

picture-053.jpg 4 gauge coming from alternator stud on left, through 175 amp fuse to a.) the solenoid and b.) to the Maxi fuse then 4 gauged to amps.
picture-053.jpg | Hits: 2239 | Posted on: 4/3/04 | View original size (102.54 KB)

4 gauge coming from alternator stud on left, through 175 amp fuse to a.) the solenoid and b.) to the Maxi fuse then 4 gauged to amps.
