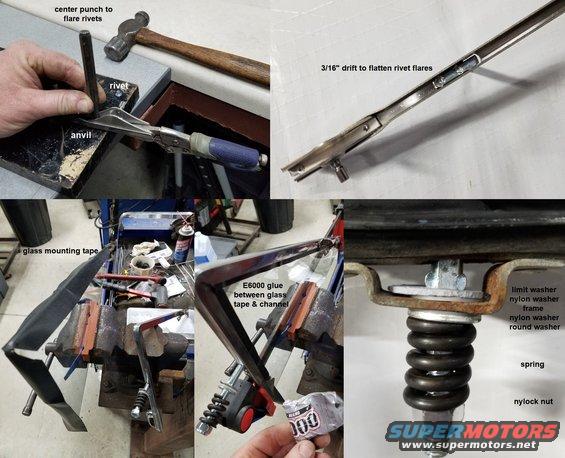

20191121_171639.jpg Using vise grips to keep the pieces tight, I set the rivets for the L-bolt & latch; then flattened them. This glass tape is too thin to hold the glass tightly (even after crushing the channel slightly in a vise), so I had to add E6000 to both sides of it.  Before it set up, re-installed the window into its frame, and the frame into the door so that the channel would be held in the correct position to fill the opening.
IF THE IMAGE IS TOO SMALL, click it.
20191121_171639.jpg | Hits: 439 | Posted on: 11/21/19 | View original size (759.7 KB)

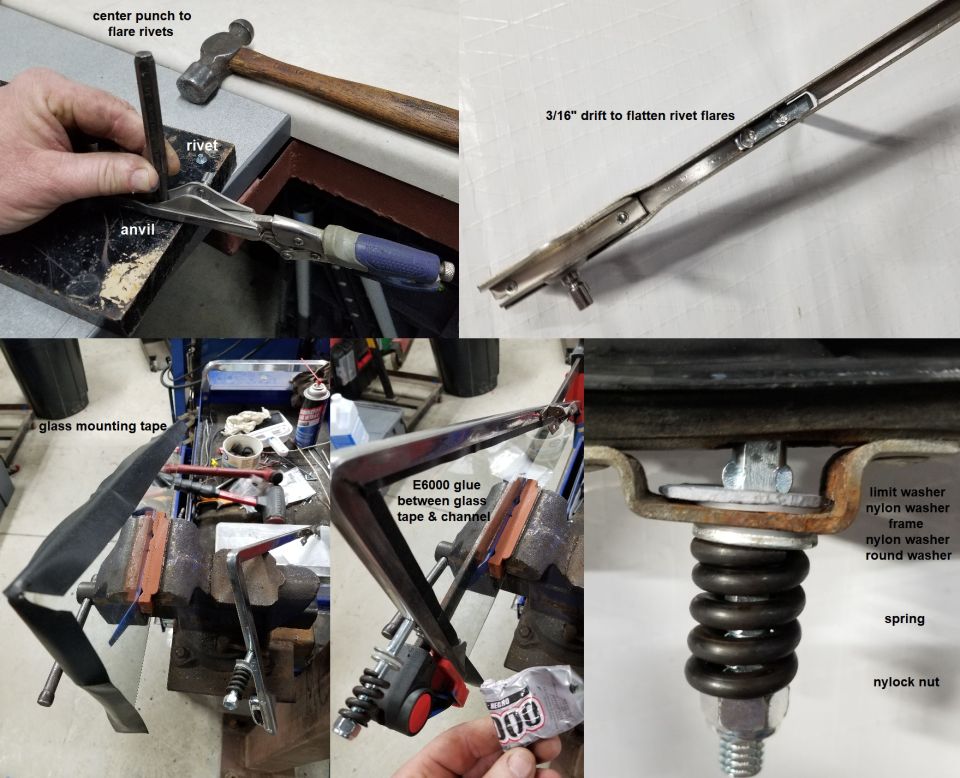

Using vise grips to keep the pieces tight, I set the rivets for the L-bolt & latch; then flattened them. This glass tape is too thin to hold the glass tightly (even after crushing the channel slightly in a vise), so I had to add E6000 to both sides of it. Before it set up, re-installed the window into its frame, and the frame into the door so that the channel would be held in the correct position to fill the opening.
