Clutch Pedal Position (CPP) Switch Jumper & other '92-96 dash features
IF THE IMAGE IS TOO SMALL, click it.

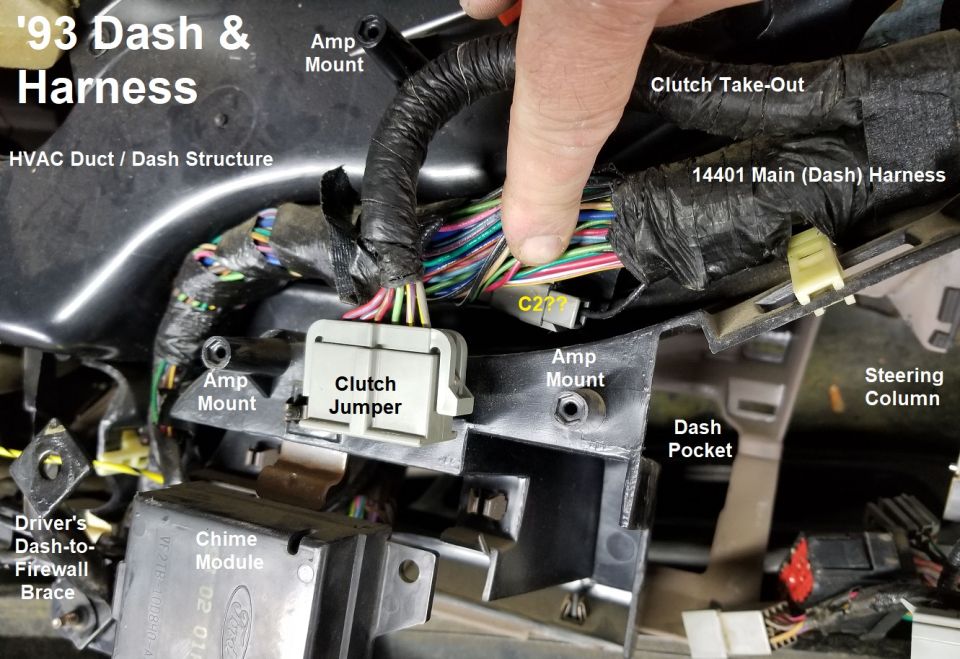

Although not shown in the EVTM's wiring diagrams, trucks with auto trans use a jumper in the CPP connector, which is stored on the front of the dash structure above the accelerator pedal.
.
The unnamed connector (C2??) is in the return (ground) circuit between Splice 207 (for the instrument cluster, ig.sw., & HVAC illumination) and Splice 202 (ultimately leading to G201).
![cppjumper.jpg Clutch Pedal Position (CPP) Switch Jumper & other '92-96 dash features
IF THE IMAGE IS TOO SMALL, click it.
Although not shown in the EVTM's wiring diagrams, trucks with auto trans use a jumper in the CPP connector, which is stored on the front of the dash structure above the accelerator pedal.
[url=https://www.supermotors.net/registry/media/72352_1][img]https://www.supermotors.net/getfile/72352/thumbnail/dashconnectors93a.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/498382_1][img]https://www.supermotors.net/getfile/498382/thumbnail/dash9496components.jpg[/img][/url]
The unnamed connector (C2??) is in the return (ground) circuit between Splice 207 (for the instrument cluster, ig.sw., & HVAC illumination) and Splice 202 (ultimately leading to G201).
[url=https://www.supermotors.net/registry/media/907047_1][img]https://www.supermotors.net/getfile/907047/thumbnail/grounds93b.jpg[/img][/url]](https://www.supermotors.net/getfile/1159225/fullsize/cppjumper.jpg)
