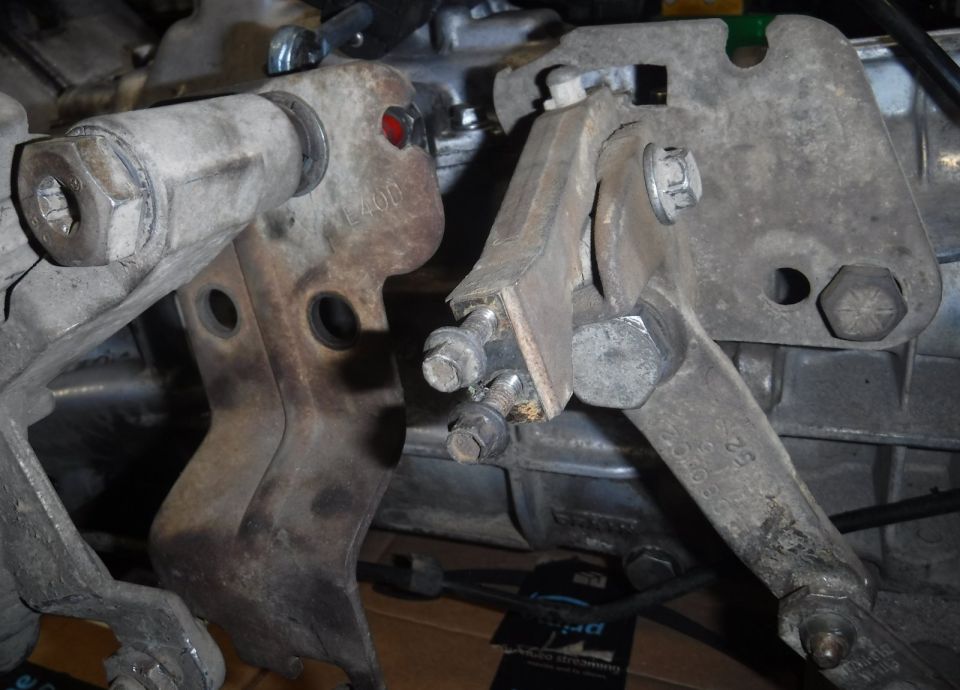

dscf2409--electronic-vs-manual-tcase-linkage-plate.jpg Side-by-side view of the E4OD t-case shifter linkage plate (left) and M5OD plate (bolted on at right). The portion with the right bolt on the M5OD plate needs to get added into the E4OD plate.
dscf2409--electronic-vs-manual-tcase-linkage-plate.jpg | Hits: 41 | Posted on: 8/20/20 | View original size (236.64 KB)

Side-by-side view of the E4OD t-case shifter linkage plate (left) and M5OD plate (bolted on at right). The portion with the right bolt on the M5OD plate needs to get added into the E4OD plate.
