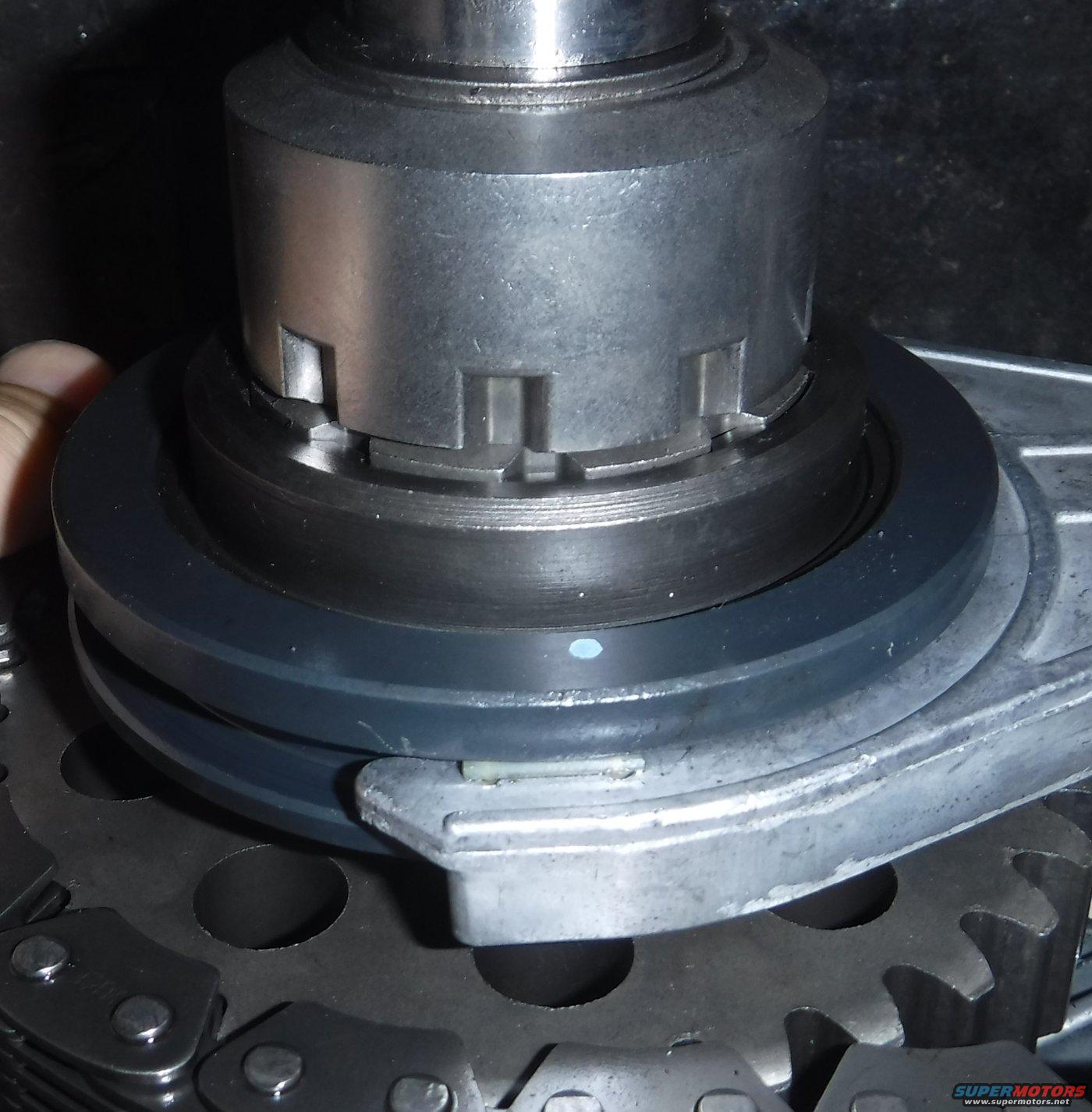

dscf2487--tcase-chain-not-level.jpg What the cog position relative to spring-loaded puck should look like if the shaft sat high enough to level the chain.
dscf2487--tcase-chain-not-level.jpg | Hits: 42 | Posted on: 9/5/20 | View original size (216.49 KB)

What the cog position relative to spring-loaded puck should look like if the shaft sat high enough to level the chain.
