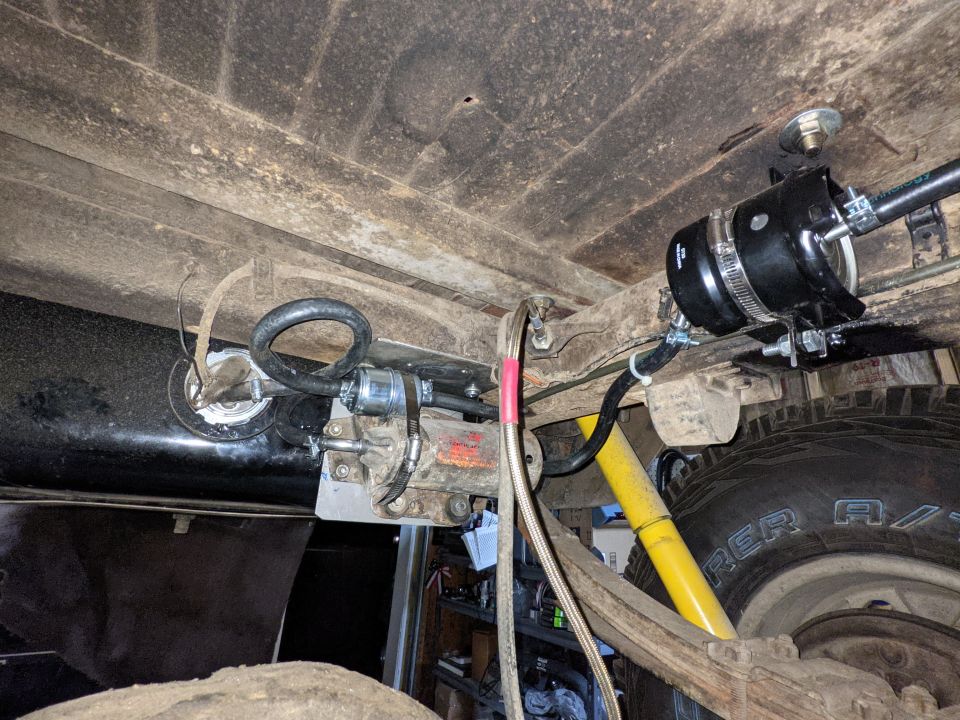

pxl_20210414_041207369.jpg Bosch 69100 fuel pump mounted low to feed off the carburetor style sending unit. WIX 33270 150 micron filter (screen) before the pump and GKI GF3896 10 micron filter after the pump. The GF3896 is for a 95 Ford Probe and is nice because it has 5/16" barbs and it came with the mounting bracket. Pump has a Dorman 800-945 fitting to adapt input to 5/16" barb and an M10x1.0 to 5/16" barb fitting from eBay on the output. Pump is mounted to the aluminum plate with an OEM rubber isolated frame pump mount from a late 80's Bronco.
pxl_20210414_041207369.jpg | Hits: 123 | Posted on: 5/4/21 | View original size (2.93 MB)

Bosch 69100 fuel pump mounted low to feed off the carburetor style sending unit. WIX 33270 150 micron filter (screen) before the pump and GKI GF3896 10 micron filter after the pump. The GF3896 is for a 95 Ford Probe and is nice because it has 5/16" barbs and it came with the mounting bracket. Pump has a Dorman 800-945 fitting to adapt input to 5/16" barb and an M10x1.0 to 5/16" barb fitting from eBay on the output. Pump is mounted to the aluminum plate with an OEM rubber isolated frame pump mount from a late 80's Bronco.
