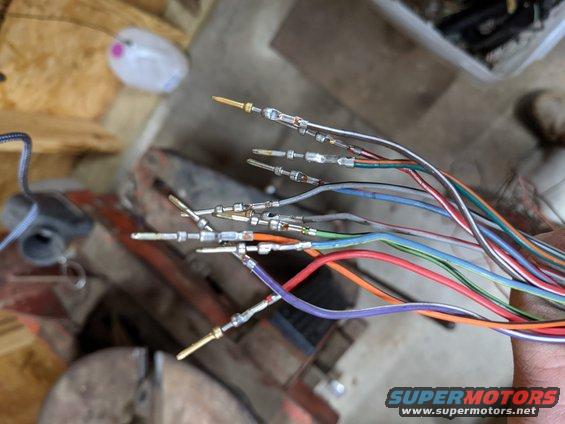

pxl_20210429_013830437.jpg These are the wires I removed from C115 because they are not needed.  It's cleaner to remove them rather than cut them and I can put one back if I screw up and realize it was needed after all.  To remove them, remove the red separators with small needle nose pliers then use a tiny flathead screwdriver to gently pry the tab on each wire to be removed.
pxl_20210429_013830437.jpg | Hits: 151 | Posted on: 5/4/21 | View original size (1.48 MB)

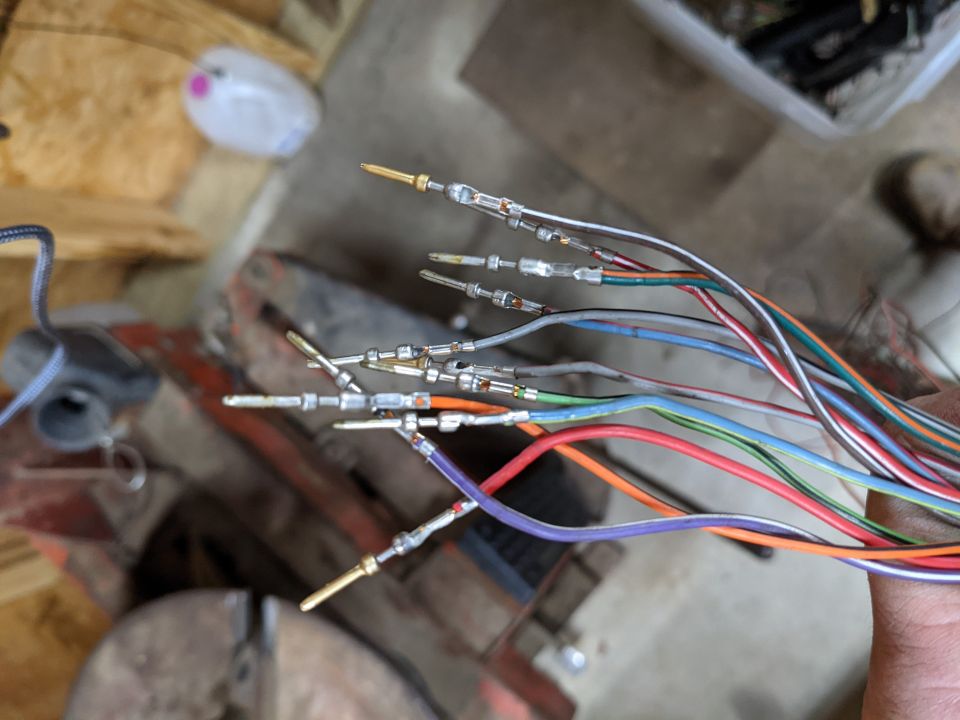

These are the wires I removed from C115 because they are not needed. It's cleaner to remove them rather than cut them and I can put one back if I screw up and realize it was needed after all. To remove them, remove the red separators with small needle nose pliers then use a tiny flathead screwdriver to gently pry the tab on each wire to be removed.
