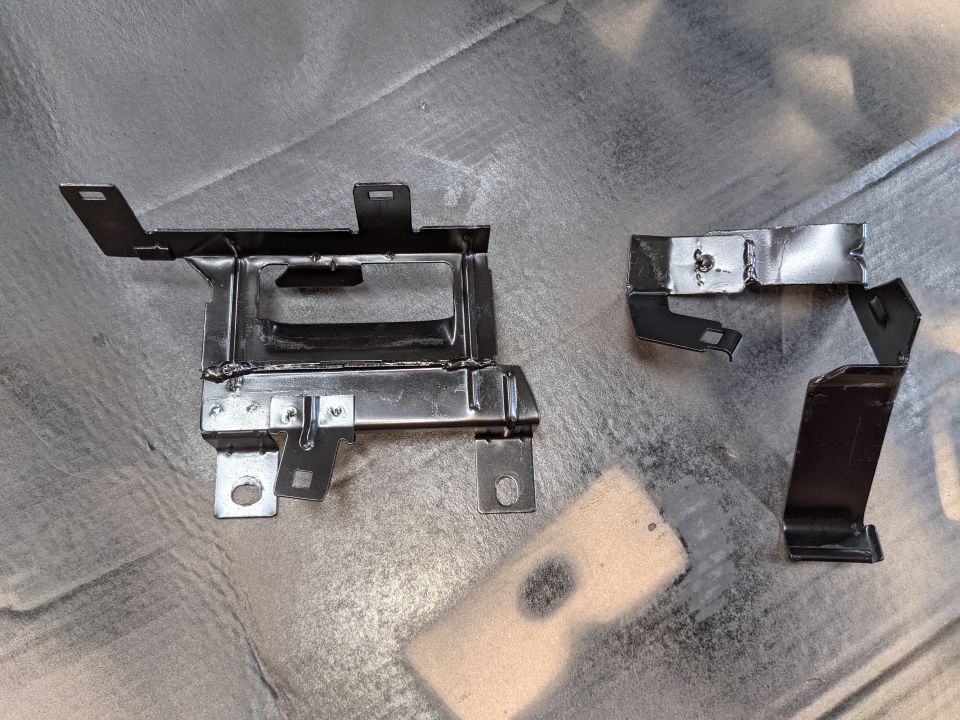

pxl_20210429_165725867.jpg PDB mounting bracket cut and welded on backwards so that it mounts downward and the box sits over the bracket. To the right is the C115 mounting bracket I cut up and welded to the EGR heat shield so that C115 now mounts to the engine rather than to the firewall.
pxl_20210429_165725867.jpg | Hits: 134 | Posted on: 5/4/21 | View original size (3.3 MB)

PDB mounting bracket cut and welded on backwards so that it mounts downward and the box sits over the bracket. To the right is the C115 mounting bracket I cut up and welded to the EGR heat shield so that C115 now mounts to the engine rather than to the firewall.
