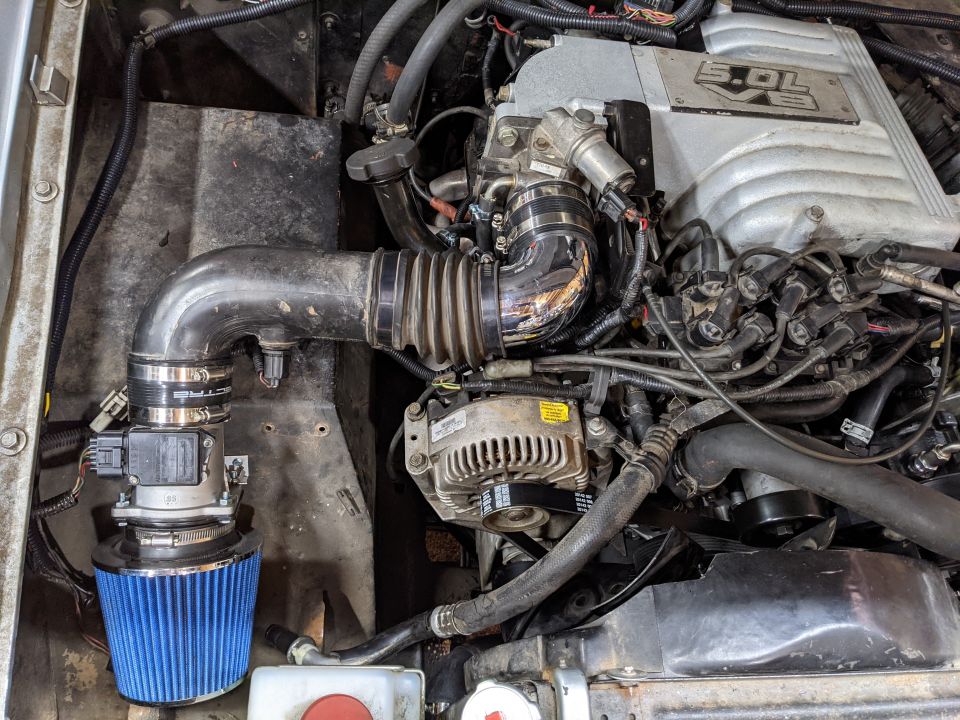

pxl_20210516_214710156.jpg We took the MAF out of the airbox and mounted it to the fender. With a little help from the heat gun the 3" Spectre intake boot slid right over the MAF and air tube and we used a second boot and 3" elbow to connect the air tube to the throttle body. The stock wiring reached the MAF and IAT sensor just fine.
pxl_20210516_214710156.jpg | Hits: 103 | Posted on: 5/18/21 | View original size (2.65 MB)

We took the MAF out of the airbox and mounted it to the fender. With a little help from the heat gun the 3" Spectre intake boot slid right over the MAF and air tube and we used a second boot and 3" elbow to connect the air tube to the throttle body. The stock wiring reached the MAF and IAT sensor just fine.
