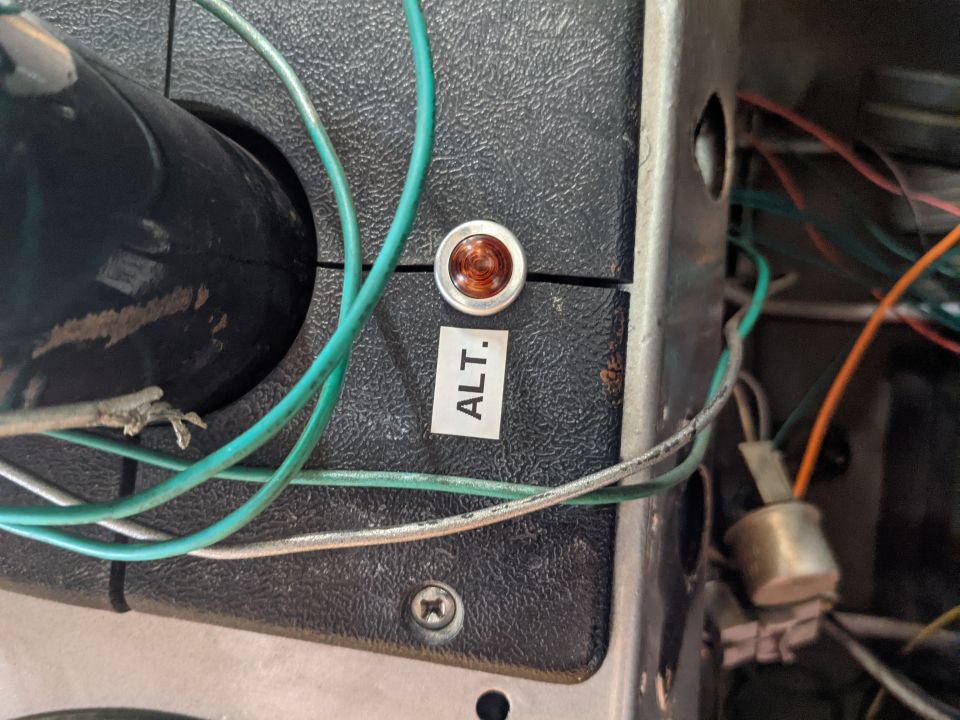

pxl_20210516_214433510.jpg This is the alternator charge light and it does need to be a bulb rather than a LED, preferably with a 470 ohm resistor in parallel in case the bulb burns out.
pxl_20210516_214433510.jpg | Hits: 241 | Posted on: 5/18/21 | View original size (2.55 MB)

This is the alternator charge light and it does need to be a bulb rather than a LED, preferably with a 470 ohm resistor in parallel in case the bulb burns out.
