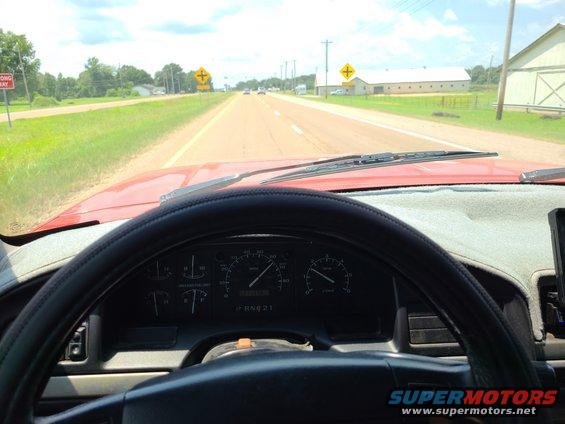

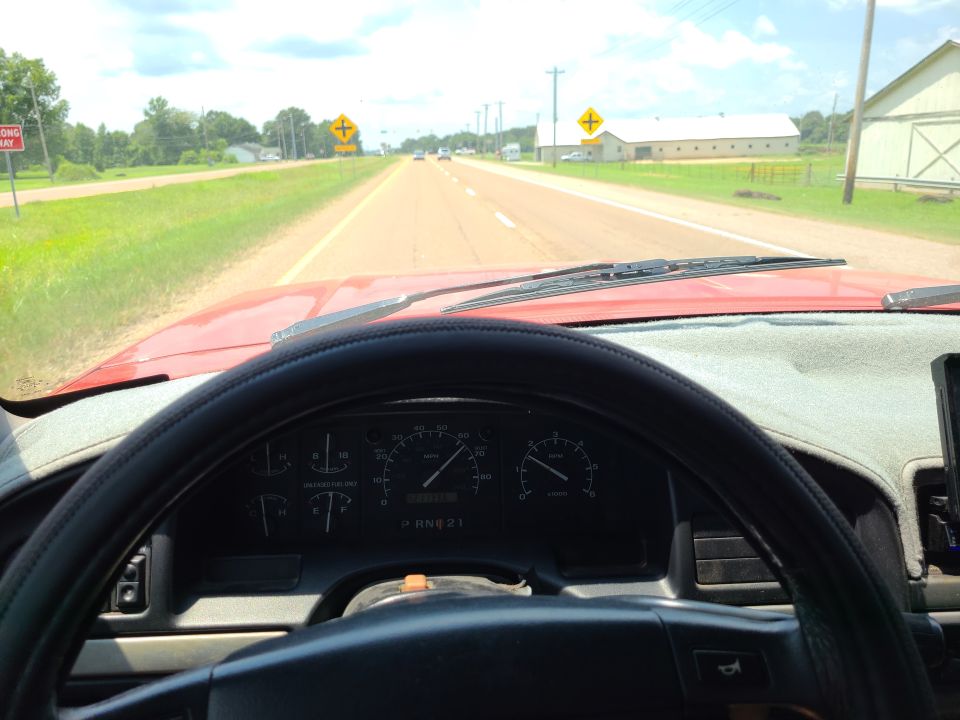

The speedometer (PSOM) has been calibrated to 8.64 for the 33" tires, so MPG calculations should be more accurate now. If MPG remains low, the likeliest causes would be alignment, low tire pressure, ignition timing (which has been corrected now), and the aftermarket open-element air filter. Cruise control works, but the safety recall on the SCDS has not been performed. There has been no rain to check for leaks or the wipers, but they appear to work. At some speeds and engine loads, there is a drumming vibration in the cabin, possibly due to tire balance or flat-spotting, improper driveshaft angle, broken engine mounts, collapsing body mounts, improperly-mounted nerf bars, or any combination of those & other latent problems. The engine performance was anemic, but after correcting the ignition timing, it is much-improved. The wind noise is minor, and there are no obvious interior rattles. The t/g window speed is OK. Since the AC evaporator & blower cleaned and motor oiled, the air temperature at the dash registers is noticeably lower (around 47 degrees parked at idle). The only DTCs were 212 (SPOUT open, probably due to ignition timing adjustment) & 542 (fuel pump open - no apparent cause), which are now cleared. (The Check Engine Light is not working.) The only 4WABS code is 16 (system PASS). The instrument cluster lens is OK, and the cluster is generally clean.
.
R&I cluster (risk of bezel damage) to replace CEL bulb $60 ***********
- Add 14 new aftermarket white #194 LEDs $40
- Add used OE low fuel light module & new aftermarket red LED $110
- Add bypass wire & new OEM oil pressure sender & new aftermarket extension (to restore oil gauge functionality; also requires remove oil cooler & replace lower radiator hose & oil filter - SEE BELOW) $70 ***********
.
.
.
Since the odometer shows 121Kmi, all maintenance indicated for the 120Kmi service interval should be done soon.
.
Flush coolant, re-set 3 hose clamps that have leaked, supply & install 2 gal concentrate & 2 gal distilled water $100 ***********
- Add remove oil cooler, install new lower radiator hose (requires FL-1A oil filter) (labor only) $40 ***********
Lower radiator hose (w/o oil cooler)
Dayco 71732 ~$28 plus tax ***********
Change oil & filter (includes 6qt new 10W30~20W50 & new Ford FL1A or FL820S filter) $40 ***********
- Add engine flush before oil change (includes 2 bottles of Berryman's B12) $10 ***********
- Add supply & install new aftermarket oil drain valve $60
Lube trans & t-case linkages with flowable grease $5 ***********
Clean, inspect, pack, & adjust front wheel bearings, inspect spindle bearing grease (includes Ford-spec grease; includes 2 new Ford/National inner wheel seals) $260 ***********
OReilly ~$33 plus tax x2
National 710430- Add clean (with ATF as recommended) & inspect hub lock bodies $20 (includes diagnose if they remain inoperative) ***********
Change t-case fluid (includes MerconV) $30 (might have been done Apr.99) ***********
Lube hinges & latches with flowable grease $20 ***********
Lube door & window seals & runs with silicone or Teflon spray (as appropriate) $40 ***********
![2dashcluster.jpg The speedometer (PSOM) has been calibrated to 8.64 for the 33" tires, so MPG calculations should be more accurate now. If MPG remains low, the likeliest causes would be alignment, low tire pressure, ignition timing (which has been corrected now), and the aftermarket open-element air filter. Cruise control works, but the safety recall on the SCDS has not been performed. There has been no rain to check for leaks or the wipers, but they appear to work. At some speeds and engine loads, there is a drumming vibration in the cabin, possibly due to tire balance or flat-spotting, improper driveshaft angle, broken engine mounts, collapsing body mounts, improperly-mounted nerf bars, or any combination of those & other latent problems. The engine performance was anemic, but after correcting the ignition timing, it is much-improved. The wind noise is minor, and there are no obvious interior rattles. The t/g window speed is OK. Since the AC evaporator & blower cleaned and motor oiled, the air temperature at the dash registers is noticeably lower (around 47 degrees parked at idle). The only DTCs were 212 (SPOUT open, probably due to ignition timing adjustment) & 542 (fuel pump open - no apparent cause), which are now cleared. (The Check Engine Light is not working.) The only 4WABS code is 16 (system PASS). The instrument cluster lens is OK, and the cluster is generally clean.
[url=https://www.supermotors.net/registry/media/484645][img]https://www.supermotors.net/getfile/484645/thumbnail/mpgtechtips.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/245234][img]https://www.supermotors.net/getfile/245234/thumbnail/dlc-eeciv.jpg[/img][/url]
R&I cluster (risk of bezel damage) to replace CEL bulb $60 ***********
- Add 14 new aftermarket white #194 LEDs $40
- Add used OE low fuel light module & new aftermarket red LED $110
- Add bypass wire & new OEM oil pressure sender & new aftermarket extension (to restore oil gauge functionality; also requires remove oil cooler & replace lower radiator hose & oil filter - SEE BELOW) $70 ***********
[url=https://www.supermotors.net/registry/media/774679][img]https://www.supermotors.net/getfile/774679/thumbnail/clusterparts.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/434942][img]https://www.supermotors.net/getfile/434942/thumbnail/clusterlfl_on.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/768241][img]https://www.supermotors.net/getfile/768241/thumbnail/switchsenderv8.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/1164488][img]https://www.supermotors.net/getfile/1164488/thumbnail/clusters92ofc.jpg[/img][/url]
Since the odometer shows 121Kmi, all maintenance indicated for the 120Kmi service interval should be done soon.
[url=https://www.supermotors.net/registry/media/833143_1][img]https://www.supermotors.net/getfile/833143/thumbnail/maintsched92.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/1160761][img]https://www.supermotors.net/getfile/1160761/thumbnail/valvw633.jpg[/img][/url]
Flush coolant, re-set 3 hose clamps that have leaked, supply & install 2 gal concentrate & 2 gal distilled water $100 ***********
- Add remove oil cooler, install new lower radiator hose (requires FL-1A oil filter) (labor only) $40 ***********
Lower radiator hose (w/o oil cooler) [url=https://www.amazon.com/dp/B000C0TDCY]Dayco 71732[/url] ~$28 plus tax ***********
Change oil & filter (includes 6qt new 10W30~20W50 & new Ford FL1A or FL820S filter) $40 ***********
- Add engine flush before oil change (includes 2 bottles of Berryman's B12) $10 ***********
- Add supply & install new aftermarket oil drain valve $60
Lube trans & t-case linkages with flowable grease $5 ***********
Clean, inspect, pack, & adjust front wheel bearings, inspect spindle bearing grease (includes Ford-spec grease; includes 2 new Ford/National inner wheel seals) $260 ***********
OReilly ~$33 plus tax x2 [url=https://www.oreillyauto.com/detail/c/national/national-wheel-seal/bca0/710430]National 710430[/url]
- Add clean (with ATF as recommended) & inspect hub lock bodies $20 (includes diagnose if they remain inoperative) ***********
Change t-case fluid (includes MerconV) $30 (might have been done Apr.99) ***********
[url=https://www.supermotors.net/registry/media/1164093_1][img]https://www.supermotors.net/getfile/1164093/thumbnail/maintchecks92.jpg[/img][/url]
Lube hinges & latches with flowable grease $20 ***********
Lube door & window seals & runs with silicone or Teflon spray (as appropriate) $40 ***********](https://www.supermotors.net/getfile/1166736/fullsize/2dashcluster.jpg)
