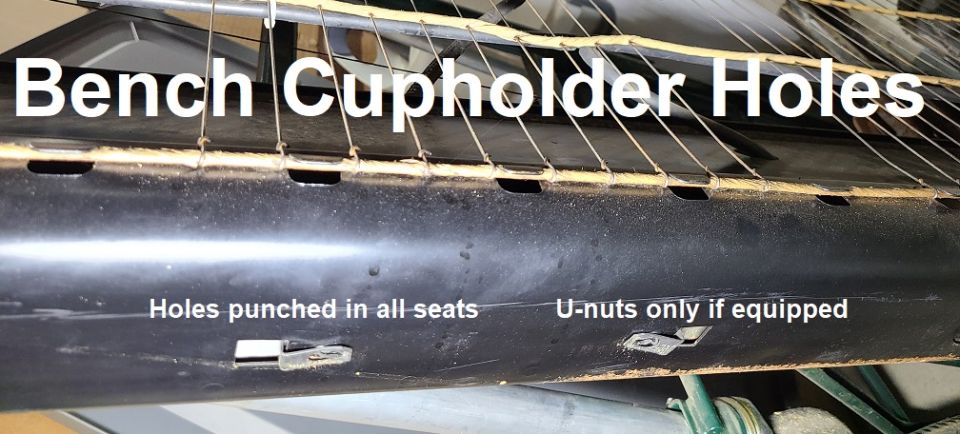

benchcupholderholes.jpg Bench Seat Cupholder Holes
IF THE IMAGE IS TOO SMALL, click it.

All bench seat frames are punched in the front center for the U-nuts used by the factory cupholders. But only seats with the cupholders have the M6x1.00 U-nuts installed. Fortunately, it's easy to slip them in from inside the chair without removing the upholstery. The bolts go through the ROUND holes; not the square ones.

[url=https://www.supermotors.net/registry/media/798317][img]https://www.supermotors.net/getfile/798317/thumbnail/consolefmocha.jpg[/img][/url]
benchcupholderholes.jpg | Hits: 541 | Posted on: 1/14/22 | View original size (231.08 KB)

Bench Seat Cupholder Holes
IF THE IMAGE IS TOO SMALL, click it.

All bench seat frames are punched in the front center for the U-nuts used by the factory cupholders. But only seats with the cupholders have the M6x1.00 U-nuts installed. Fortunately, it's easy to slip them in from inside the chair without removing the upholstery. The bolts go through the ROUND holes; not the square ones.
