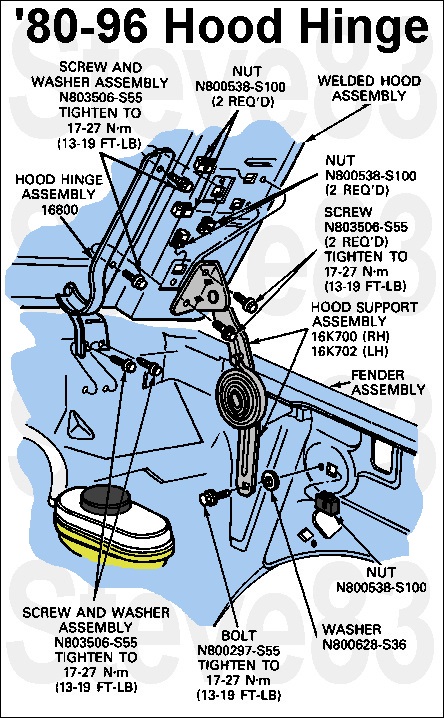

'80-96 Hood Hinge
IF THE IMAGE IS TOO SMALL, click it.

Hood Adjustment, '80-96 F-150-250-350, F-Super Duty Chassis Cab, and Bronco
1. Open the hood and mark the hinge and latch assembly locations.
2. Loosen the hinge-to-fender inner attaching screws until they are snug.
3. Adjust the hinge up or down or rotate as required to obtain a flush fit between the hood and the top of the cowl panel. Then, tighten the hinge-to-fender inner attaching screws.
4. Loosen the two hood latch assembly attaching screws.
5. Loosen the hinge-to-hood attaching bolts until they are snug. Move the hood forward or rearward and from side to side as required for a proper hood fit. Then, tighten the hinge-to-hood attaching screws. Move the latch from side to side as required to center the latch with the hood striker. Tighten the hood latch attaching screws.
6. Lubricate each hood hinge at all pivot points with Multi-Purpose Grease Spray D7AZ-19584-AA (ESR-M1C159-A and ESB-M1C106-B) or equivalent. Check the functional operation of the hinges by opening and closing the hood several times to make sure alignment is correct and the lubricant has effectively worked into the pivot points.
