bjscc.jpg Upper Ball Joint: Ford F6TZ3V049AA, MC MCS10339, [url=https://www.amazon.com/dp/B018OGIIKK]Spicer 2001257[/url] Lower Ball Joint: Ford F6TZ3V050CB, [url=https://www.amazon.com/dp/B000C5HPRO]MC MCS10253[/url], [url=https://www.amazon.com/dp/B018OGIII2]Spicer 2001258[/url], [url=https://www.amazon.com/dp/B00T9Y1LB0]TRW JBJ7011[/url] Camber Cam: [url=https://www.amazon.com/dp/B000S2IZ6Q]ACDelco 49K6526[/url], McQuay-Norris AA3951, [url=https://www.amazon.com/dp/B000C57Z3S]Moog K80108[/url] IF THE IMAGE IS TOO SMALL, click it. These are the same for all '80-96 D44IFS & D50IFS TTBs. This is how to remove the camber cams: [url=https://www.supermotors.net/registry/media/1170256][img]https://www.supermotors.net/getfile/1170256/thumbnail/camberxtract.jpg[/img][/url] The easiest way to R&R the ball joints is with a torch (propane is hot enough) to expand the steering knuckle around the joint, then drive it out with a solid hammer hit. Same to put the new one back in. [url=https://www.supermotors.net/registry/media/1157949][img]https://www.supermotors.net/getfile/1157949/thumbnail/20200307_153946.jpg[/img][/url]
bjscc.jpg | Hits: 640 | Posted on: 6/17/22 | View original size (808.89 KB)

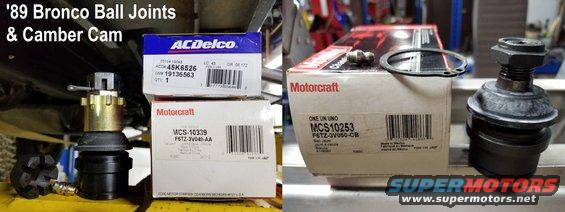

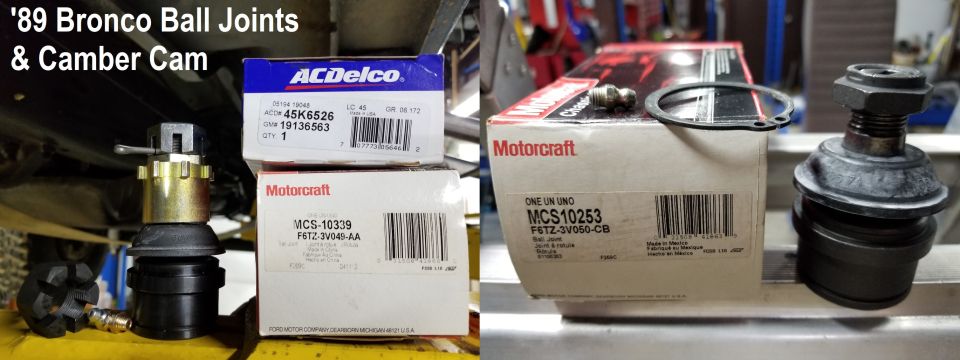

Upper Ball Joint: Ford F6TZ3V049AA, MC MCS10339, Spicer 2001257
Lower Ball Joint: Ford F6TZ3V050CB, MC MCS10253, Spicer 2001258, TRW JBJ7011
Camber Cam: ACDelco 49K6526, McQuay-Norris AA3951, Moog K80108
IF THE IMAGE IS TOO SMALL, click it.

These are the same for all '80-96 D44IFS & D50IFS TTBs. This is how to remove the camber cams:



The easiest way to R&R the ball joints is with a torch (propane is hot enough) to expand the steering knuckle around the joint, then drive it out with a solid hammer hit. Same to put the new one back in.
