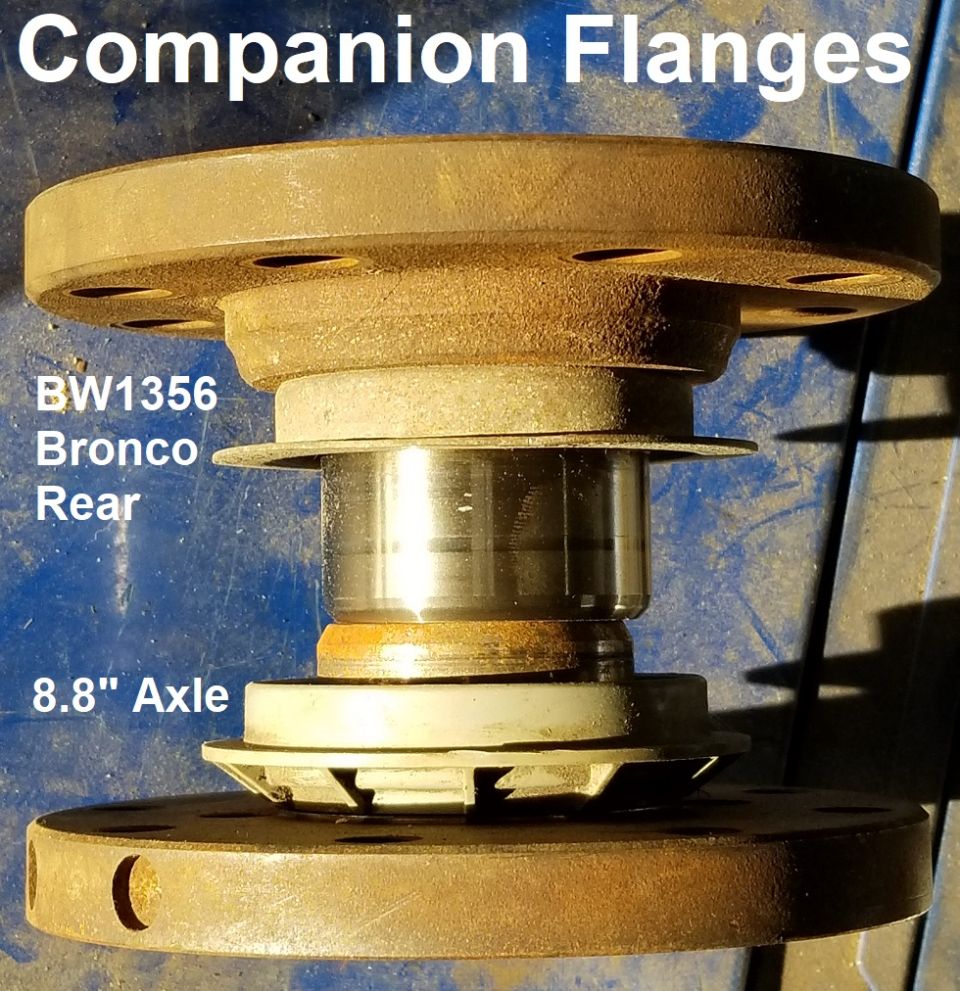

flanges.jpg Companion Flange Comparison IF THE IMAGE IS TOO SMALL, click it. The unthreaded transfer case flange has a wider collar than the axle flange with threaded bolt holes.
flanges.jpg | Hits: 169 | Posted on: 2/18/24 | View original size (440.53 KB)

Companion Flange Comparison
IF THE IMAGE IS TOO SMALL, click it.

The unthreaded transfer case flange has a wider collar than the axle flange with threaded bolt holes.
