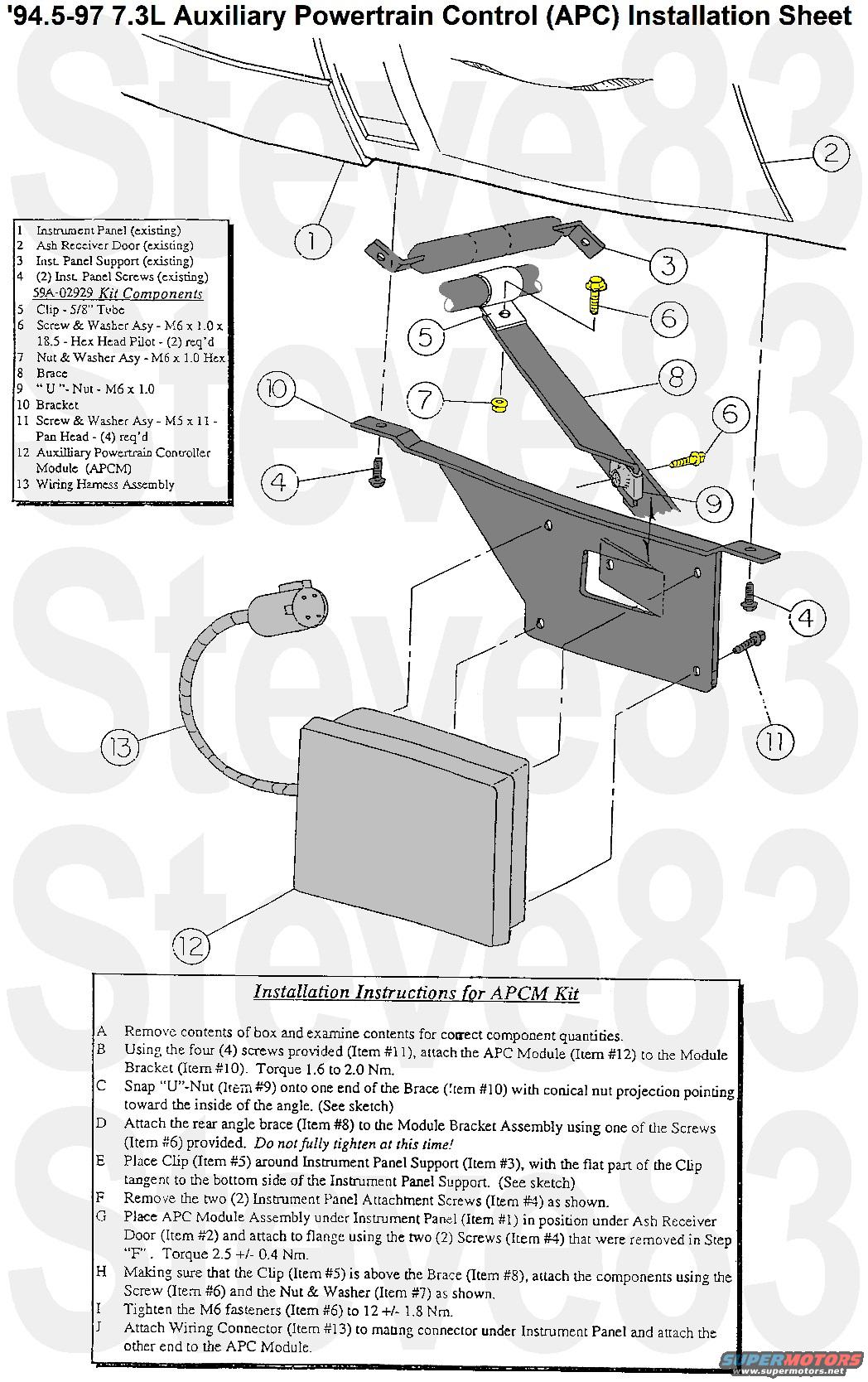

APCM Installation Sheet
IF THE IMAGE IS TOO SMALL, click it.
APC MODULE USAGE
NOTE: IF SYSTEM IS PROGRAMMED FOR "POWER-UP" RPM CONTROL OR "POWER-UP" CHARGE PROTECTION, FUNCTION WILL BE ACTIVE WHENEVER THE ENABLING CONDITIONS ARE MET
TO DEACTIVATE "CHARGE PROTECT" OR RPM CONTROL:
- Press lighted key for function in use
or - Press ACTIVATE/DEACTIVATE (FORD OVAL) key
or - Press POWER key
or - Press brake or clutch pedal, take vehicle out of PARK, or release parking brake
NOTE: To deactivate "Power-Up" RPM Control or "Power-Up" Charge Protection, use any of the above methods. However, note that pressing the lighted key for the function in use or the ACTIVATE/DEACTIVATE (FORD OVAL) key will necessitate a key-off/restart cycle to regain the "Power-Up" function. Pressing the POWER key does not cancel the "Power-Up" function. It will still be enabled if the POWER key is pressed again.
ENABLING CONDITIONS:
- Parking brake set
- Foot off clutch or gear shift lever in PARK
- Foot off service brake
- Foot off accelerator pedal
- Brake lights connected and functional
"CHARGE PROTECT" ACTIVATION (if "Power-Up" Charge Protection has not been programmed):
- Press CHARGE PROTECT key
* Light next to CHARGE PROTECT key blinks
* RPM increases
* System voltage is displayed
FIXED SPEED RPM CONTROL ACTIVATION (if "Power-Up" Charge Protection has not been programmed):
- Press RPM CONTROL key
* Steady light next to RPM CONTROL key
* RPM stored in Memory #1 is displayed
- If any memory other than Memory #1 is desired, press one of the 4 arrow keys to recall the engine speed stored in that memory
* RPM stored in memory selected is displayed
- Press ACTIVATE/DEACTIVATE (FORD OVAL) key to activate
* Light next to RPM CONTROL key blinks
* Engine speed increases to RPM displayed
MANUAL RPM CONTROL:
- Select and activate a preset fixed engine speed (as described above)
- Press or hold "up" or "down" single arrow (slow) or double arrow (fast) key
* New engine speed is displayed
* Light next to RPM CONTROL key blinks
* When key is released, RPM displayed becomes new temporary setpoint
- To save new setpoint, simultaneously press and hold top arrow key and ACTIVATE/DEACTIVATE (FORD OVAL) key for two seconds
F5TF-12B639-BC
