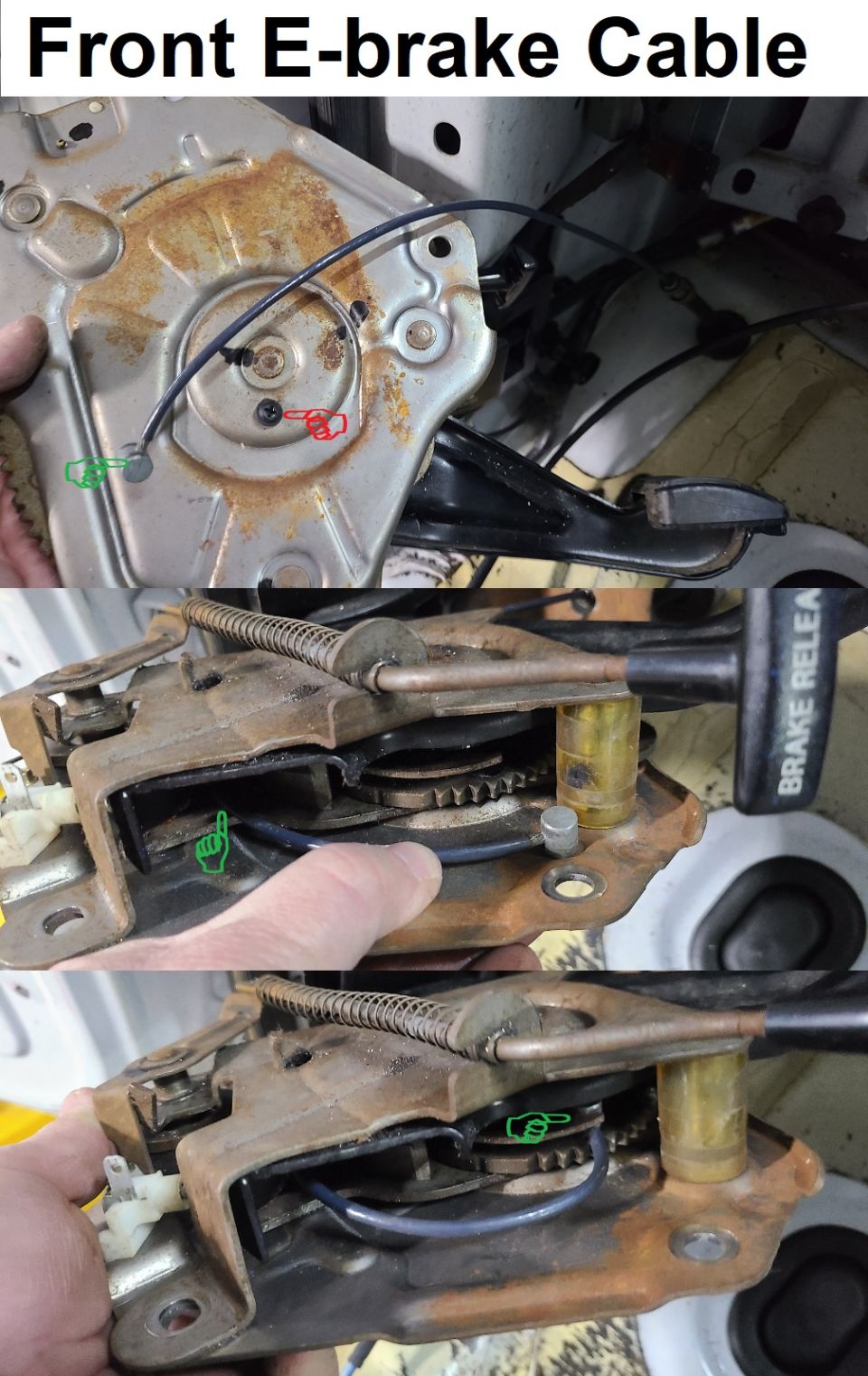

Front E-brake Cable Installation
IF THE IMAGE IS TOO SMALL, click it.
With a pin (or small screw - Red pointer) holding the pedal self-adjusting mechanism at its limit, insert the cable end (Green pointer) through the bottom along the groove in the front of the pulley, up to the top, and into its hook. To release the pin, simply pull the pedal assembly away from the floor until the cable seats into the groove and takes up the tension, allowing the pin (screw) to drop out.
Removal is the reverse of installation. The pedal MUST be hard against its upper (released) stop for the adjuster mechanism to be unlocked.
