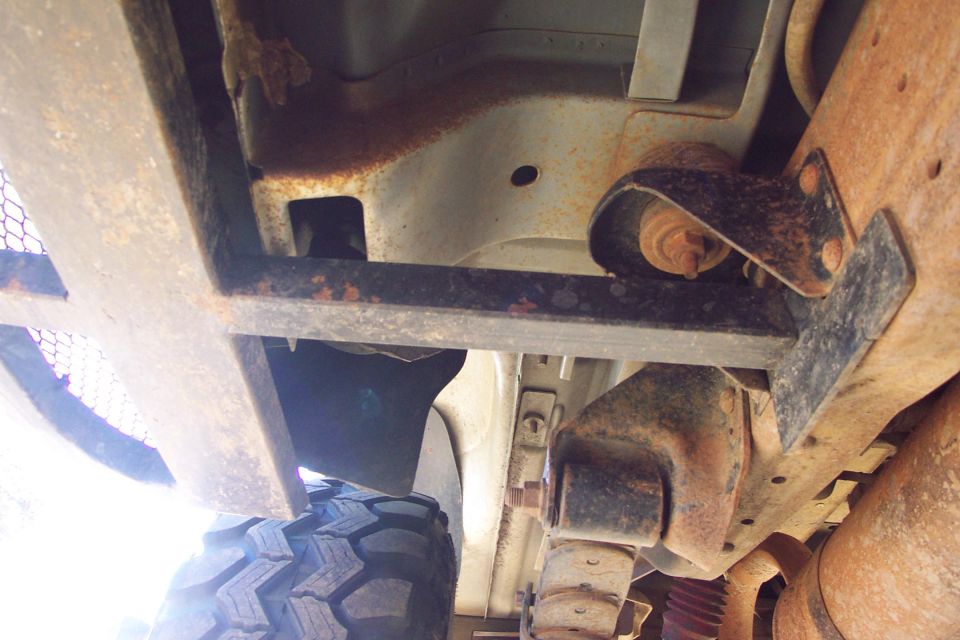

dcp_0591.jpg Rear Mount Location Used the large hole beneath the body mount with a backing plate to sandwich to the frame. Upward/Lift load gets transferred from the mounting arm to the body support structure just a few inches to the right of the main slider.
dcp_0591.jpg | Hits: 1434 | Posted on: 7/19/04 | View original size (251.71 KB)

Rear Mount Location

Used the large hole beneath the body mount with a backing plate to sandwich to the frame.

Upward/Lift load gets transferred from the mounting arm to the body support structure just a few inches to the right of the main slider.
