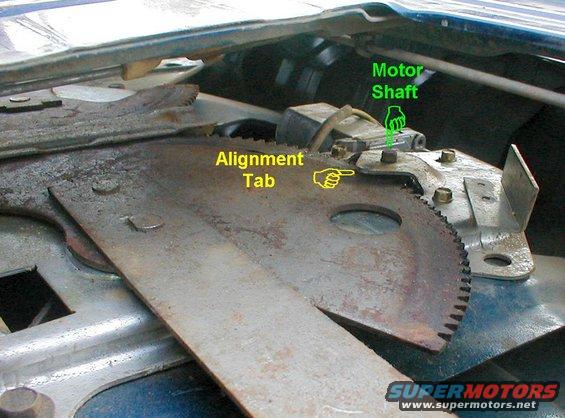

regulator.jpg The motor drive's shaft aligns thru the hole in the top of the regulator. If the large gear is popping off the motor gear, bend the small tab down that overhangs the regulator gear to hold it flat against the regulator chassis.  Also, ensure that the motor is mounted properly to the back of the regulator.
regulator.jpg | Hits: 8618 | Posted on: 11/29/04 | View original size (127.85 KB)

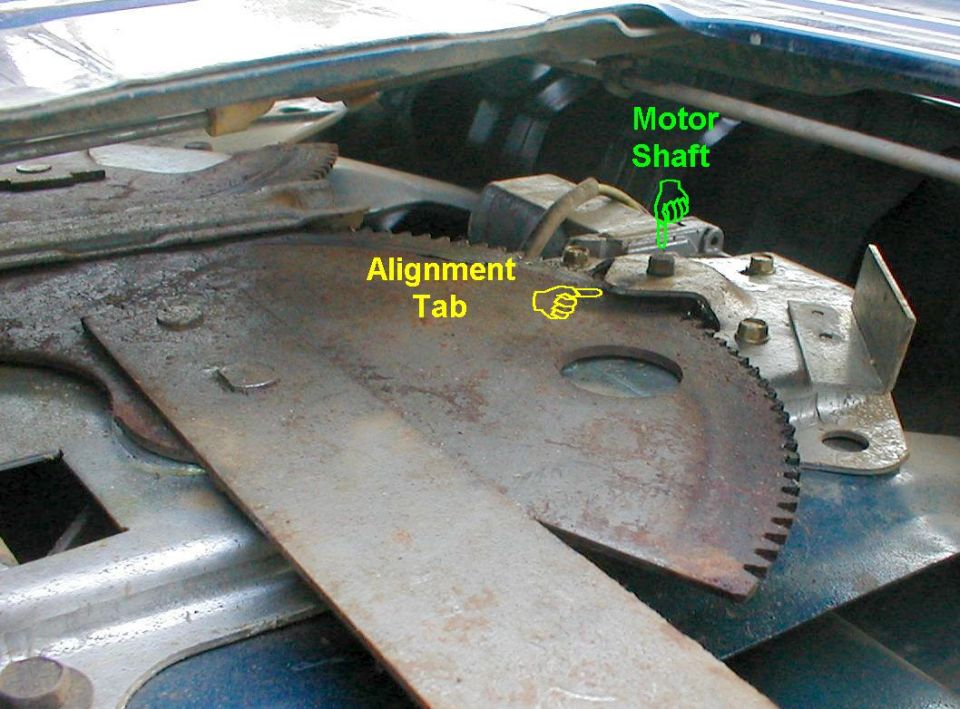

The motor drive's shaft aligns thru the hole in the top of the regulator. If the large gear is popping off the motor gear, bend the small tab down that overhangs the regulator gear to hold it flat against the regulator chassis. Also, ensure that the motor is mounted properly to the back of the regulator.
