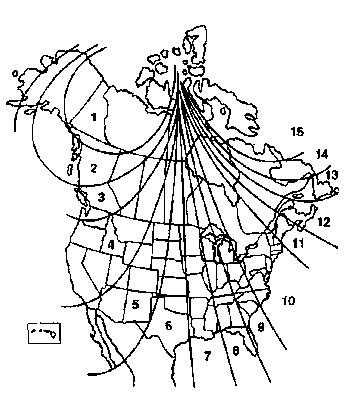

Compass Zones
Zone Setting
1. Insert an appropriate diameter rod, preferably non-metallic, into the right switch access hole underneath the compass module and gently press the RH switch for one to two seconds until ZONE and the current zone setting are displayed.
Alternatively, press & hold the COMP button until a numeral is displayed.
2. Release the switch.
3. Pressing the COMP switch repeatedly will cycle the display through all possible zone settings. Stop cycling when the correct zone setting for your location is displayed.
4. Releasing the switch for two seconds will exit the zone setting mode.
Calibration
1. For optimum calibration, switch off all non-essential electrical accessories (rear window defrost, heater/air conditioning, map lamps, wipers, etc.) to make sure all doors are shut.
2. Drive to an open, level area away from large metallic objects or structures with no traffic or pedestrians.
3. Insert an appropriate diameter rod, preferably non-metallic, into the LH switch access hole underneath the compass module and press gently for one to two seconds until CAL and a direction are displayed.
Alternatively, press & hold the COMP button until CAL and a direction are displayed.
4. Release the switch and drive slowly in a circle until CAL disappears from the display (about two to three circles).
|
