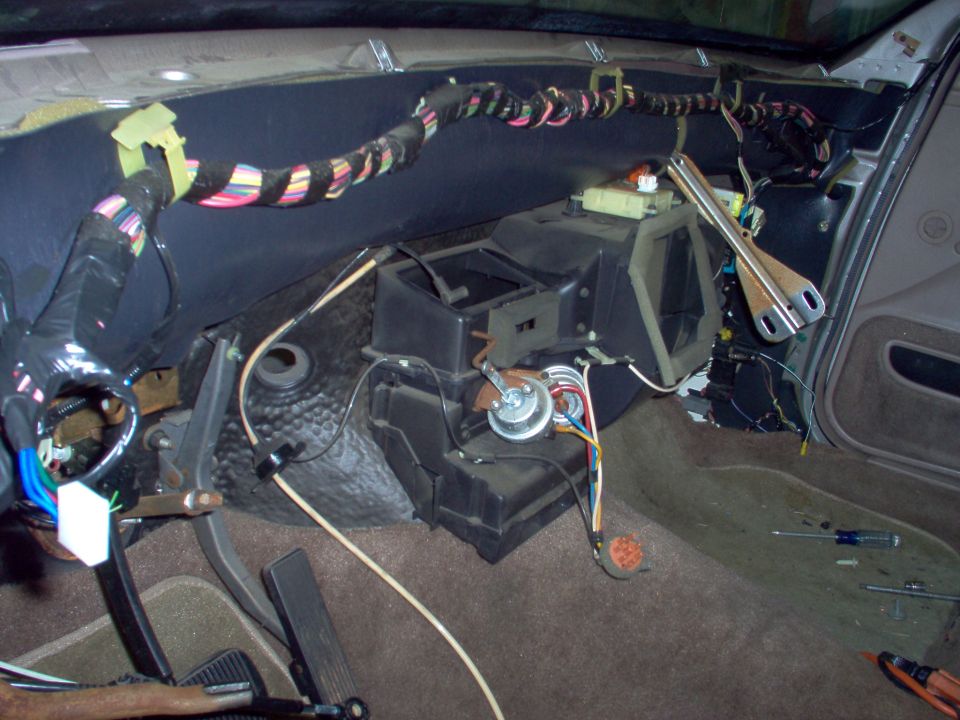

m11.jpg The new branch off the firewall harness with the white plug is the RKE wiring into the lock circuit. It will plug into the module below the autolamp sensor.
m11.jpg | Hits: 1805 | Posted on: 3/29/05 | View original size (759.59 KB)

The new branch off the firewall harness with the white plug is the RKE wiring into the lock circuit. It will plug into the module below the autolamp sensor.
