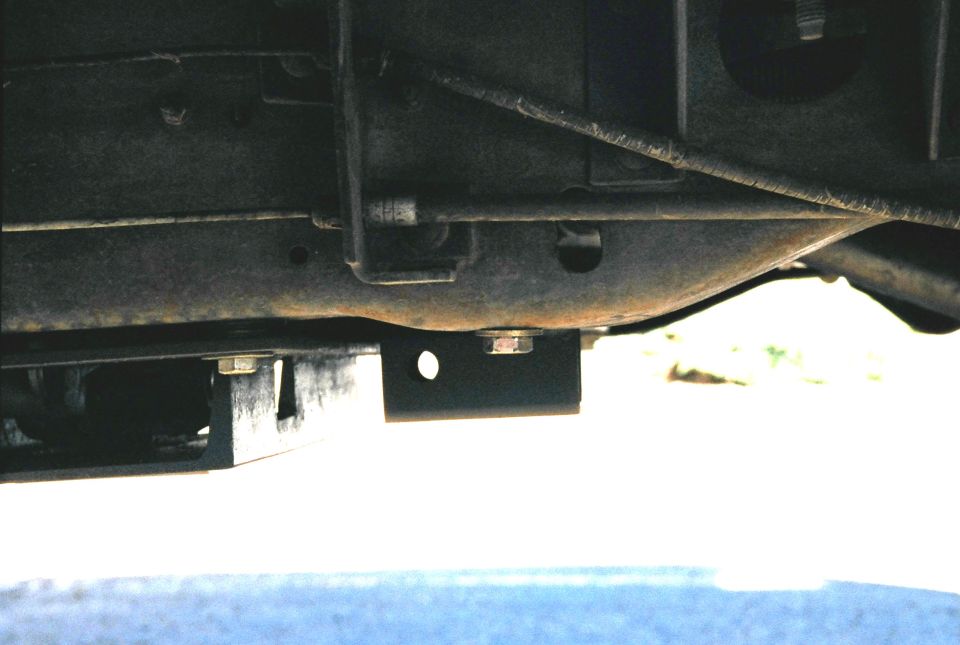

side-view-of-shackle-installed-front-hole-for-.jpg Side view of shackle mount. The front hole in the mount is where the shackle will bolt in. The top of the 2x2 was cut back to allow the shackle to swing forward and backward with the axle.
