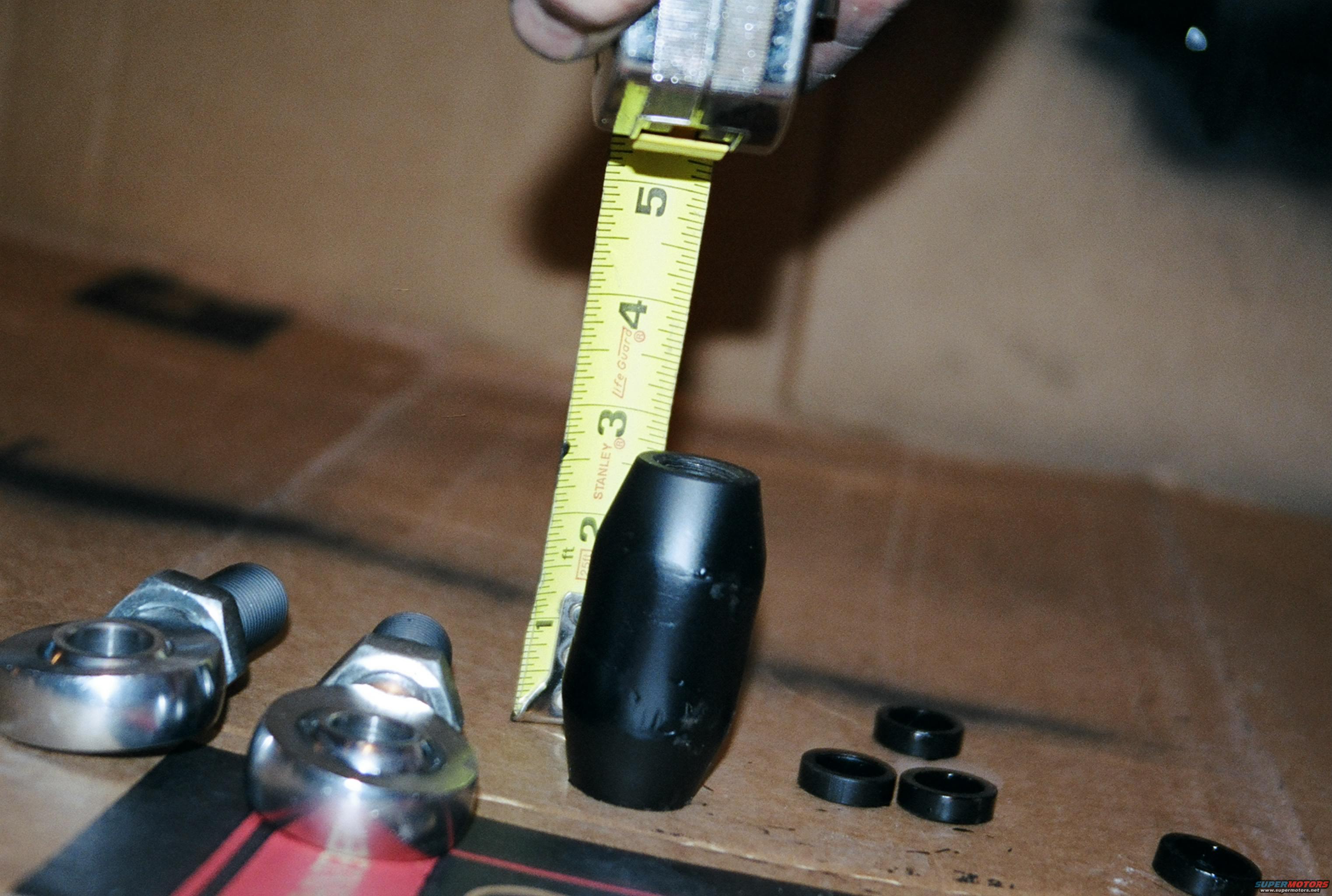

closeup-of-shackle-two-weld-in-bungs-with-tube.jpg Closeup of shackle, it was made out of two 5/8" weld in bungs, one left hand thread one right hand thread and a peice of 1" ID DOM tube, about 1 1/2" long. The whole shackle is about 3". You can see the SRE's in the picture, both 5/8" one LHT the other RHT.
closeup-of-shackle-two-weld-in-bungs-with-tube.jpg | Hits: 1558 | Posted on: 4/28/05 | View original size (1.55 MB)

Closeup of shackle, it was made out of two 5/8" weld in bungs, one left hand thread one right hand thread and a peice of 1" ID DOM tube, about 1 1/2" long. The whole shackle is about 3". You can see the SRE's in the picture, both 5/8" one LHT the other RHT.
