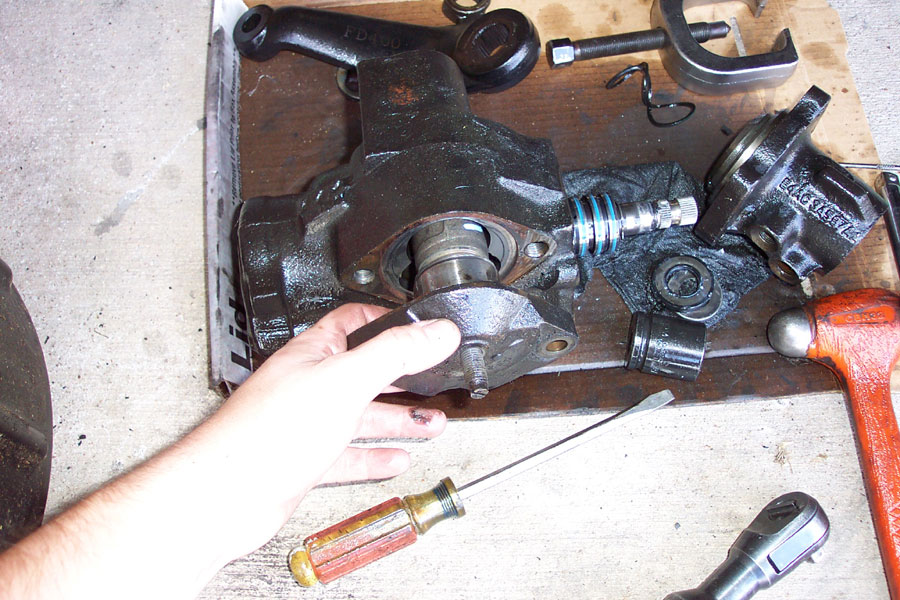

10sectorshaftremoval.jpg Remove the two bolts that hold the sector shaft in, then drive it up from the bottom. Do NOT remove the adjusting nut like I did. The sector shaft must be centered (gearbox centered) in order for you to remove it.
10sectorshaftremoval.jpg | Hits: 988 | Posted on: 7/30/05 | View original size (159.2 KB)

Remove the two bolts that hold the sector shaft in, then drive it up from the bottom. Do NOT remove the adjusting nut like I did. The sector shaft must be centered (gearbox centered) in order for you to remove it.
